Malfunction Indicator Lamp: Description and Operation

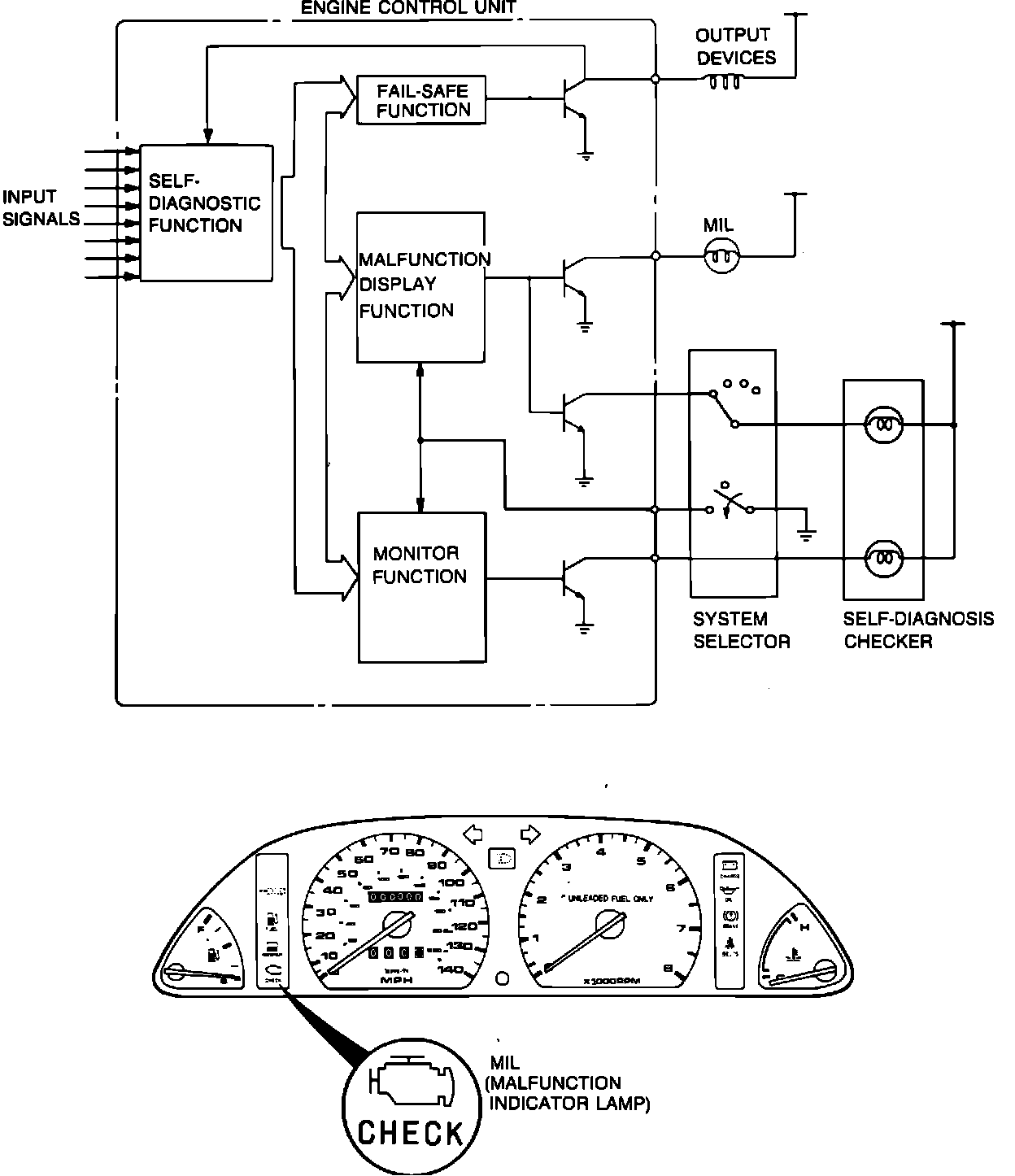

Self-Diagnosis System:

The Malfunction Indicator Light (MIL) is located in the instrument panel. If the ECU detects a monitored device malfunction, the MIL will stay "ON" with the engine running and diagnosis connector "TEN" terminal not grounded. If the terminal is grounded, the MIL will flash malfunction codes corresponding to the defective input/output devices and/or their circuits. If there is more than one failure present, the lowest number malfunction code is displayed first, followed by remaining codes in numerical order.
