Clutch: Service and Repair

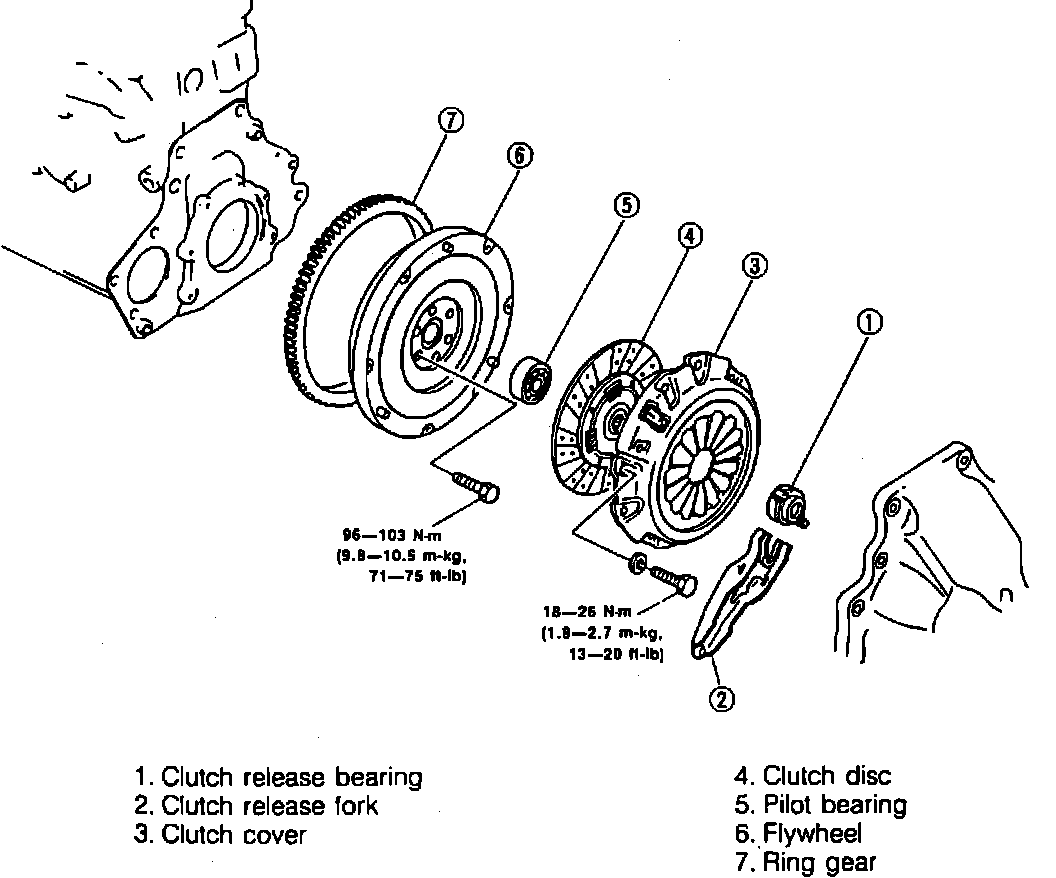

Fig. 6 Exploded View Of Clutch Assembly:
1.
Remove transaxle.
2.
Remove
clutch release bearing and
clutch release fork,
Fig. 6. 3.
Remove clutch cover, then the
clutch disc.
4.
Remove
pilot bearing,
flywheel and ring gear.
5.
Reverse procedure to install.
