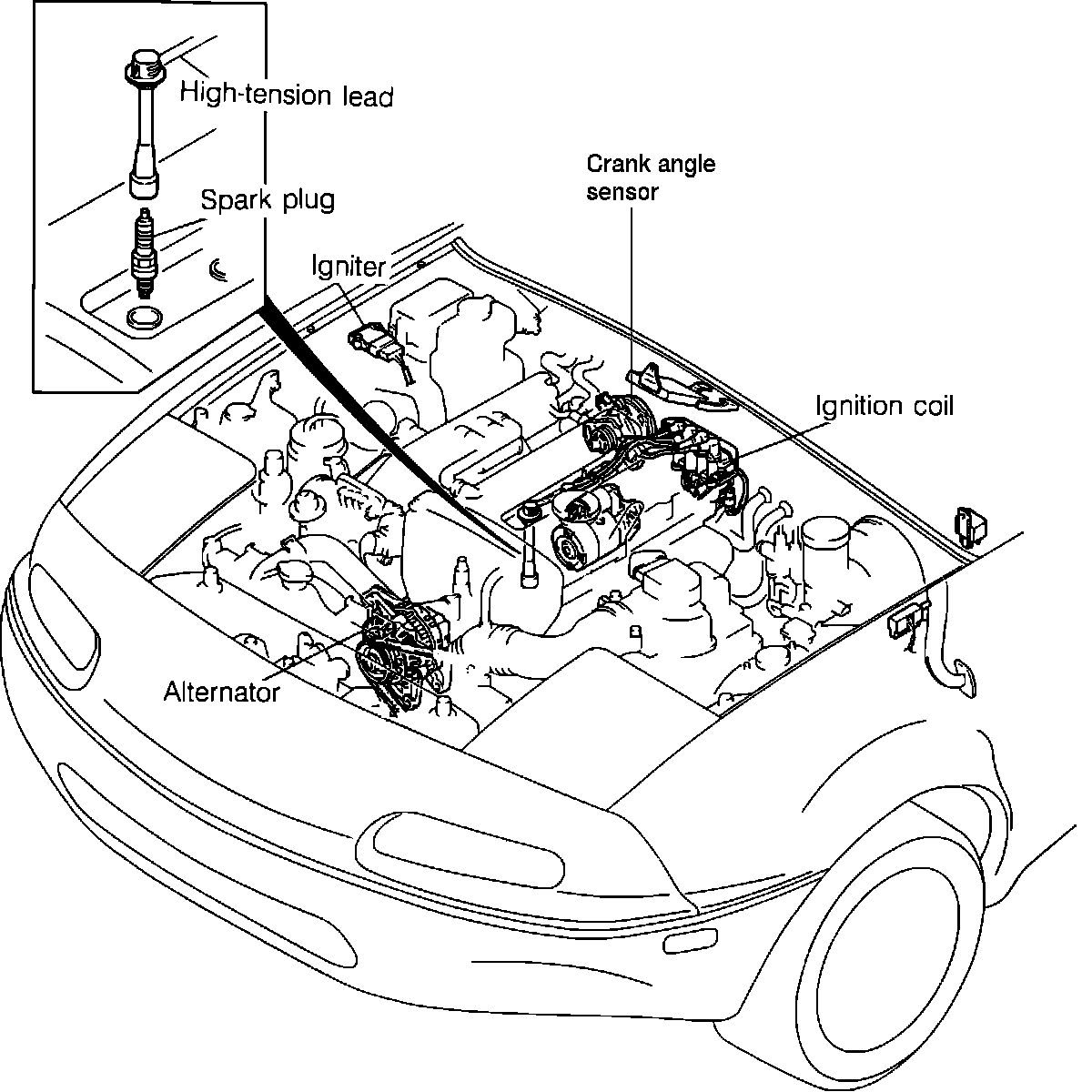

Ignition System: Locations

System Components:

CRANK ANGLE SENSOR
Located on right rear end of cylinder head.

DIAGNOSIS CONNECTOR
Located on left side of engine compartment rear strut tower.

IGNITER
Located on right side of engine compartment.

IGNITION COIL
The ignition coil assembly is located at rear of cylinder head.

IGNITION WIRES
Routed between ignition coil assembly and spark plugs.

SPARK PLUGS
Located on top of cylinder head between valve covers.
