Air Flow Meter/Sensor: Locations

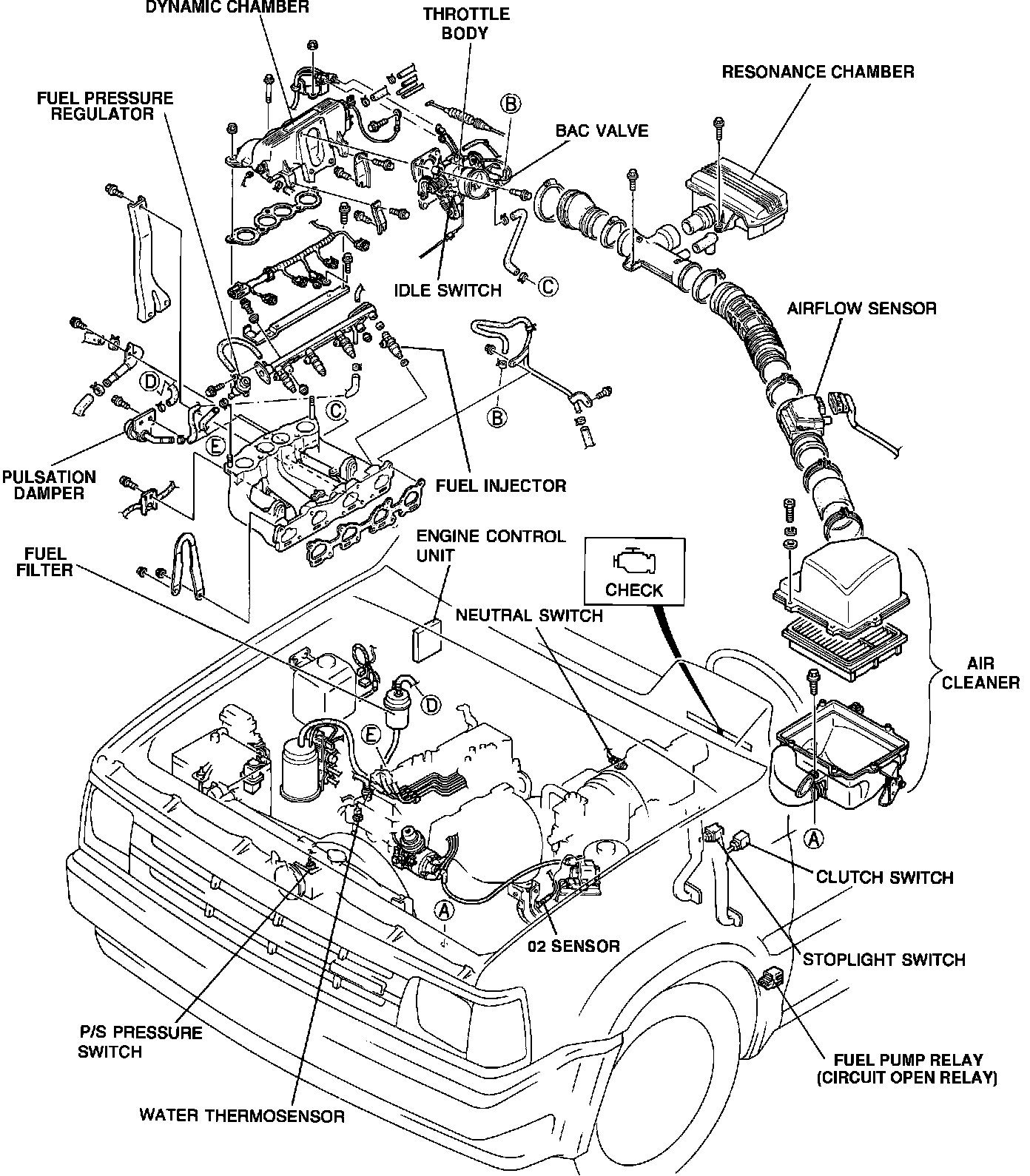

UNDER HOOD COMPONENTSUnderhood Component Locations:

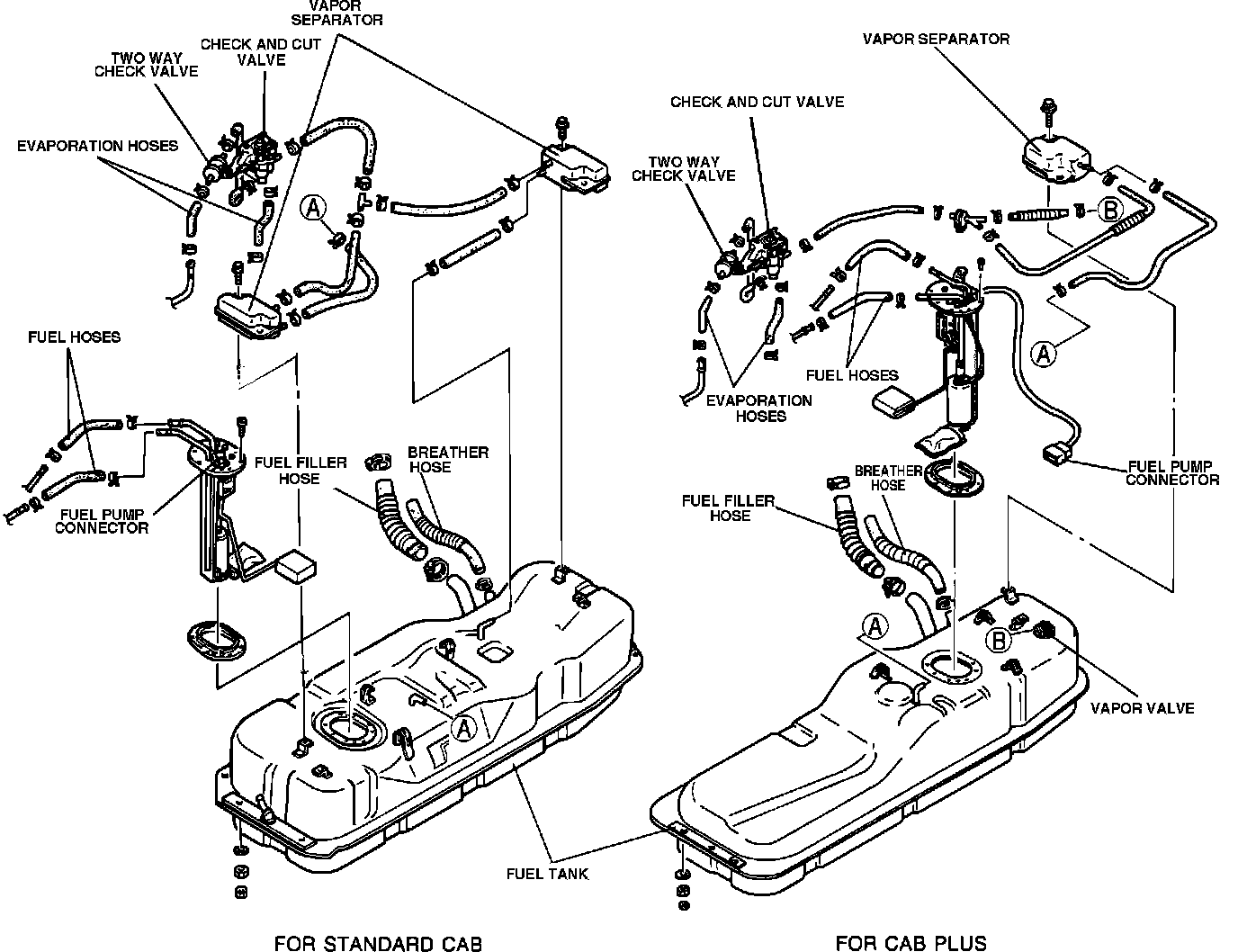

FUEL TANK AND COMPONENTS
Fuel Tank Assembly:
BYPASS AIR CONTROL VALVE
On throttle body.
CHECK AND CUT VALVE
Above fuel tank.
FUEL FILTER
Right rear engine compartment, beneath intake manifold.
FUEL PRESSURE REGULATOR
Front of fuel rail.
PULSATION DAMPER
Right rear side of engine block, beneath intake manifold.
FUEL PUMP
Inside fuel tank.
FUEL PUMP RELAY (CIRCUIT OPEN RELAY)
Behind driver side kick panel.
