Central Processing Unit











ON-VEHICLE INSPECTION

Note

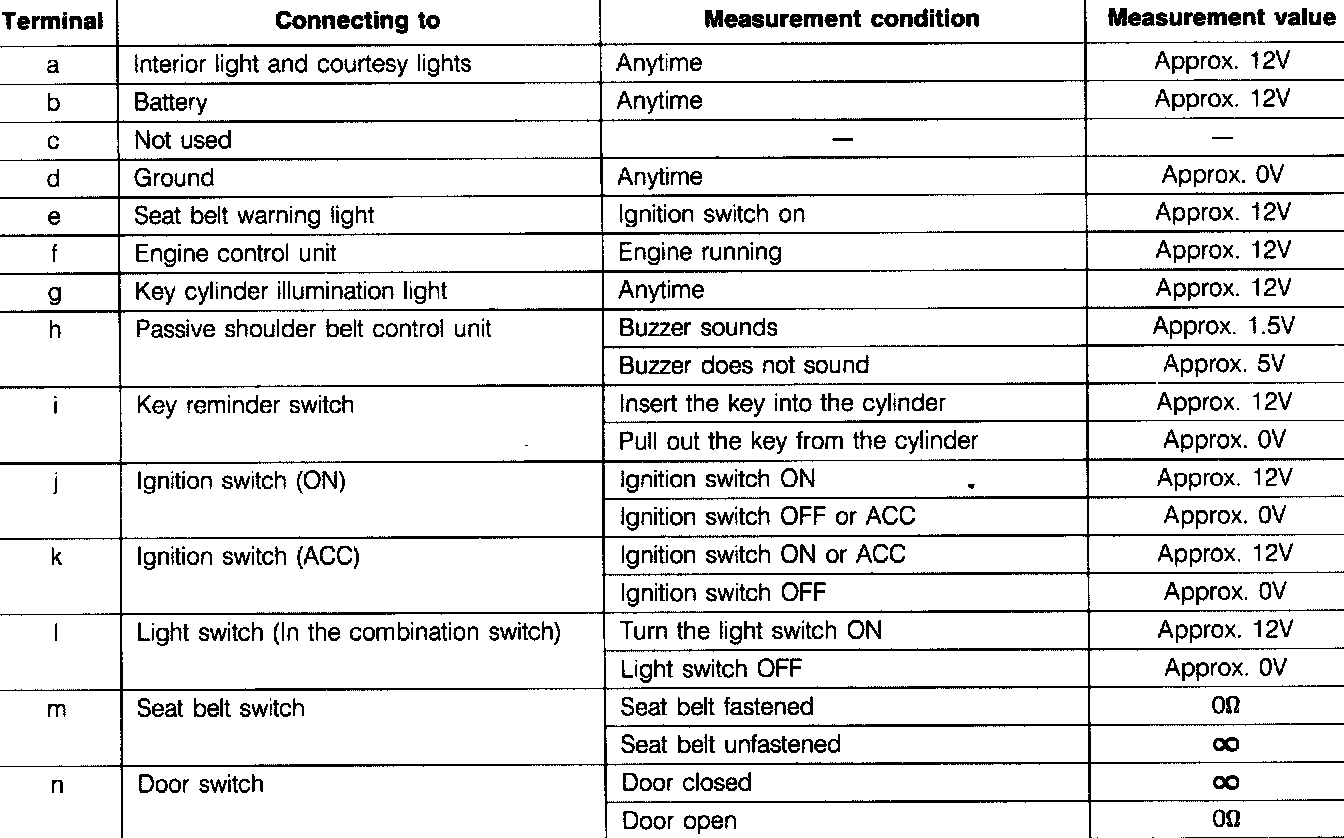

^ Check the voltage between "a through I" terminal and ground.
^ Check the continuity between "m, n" terminal and g
