Component Locations

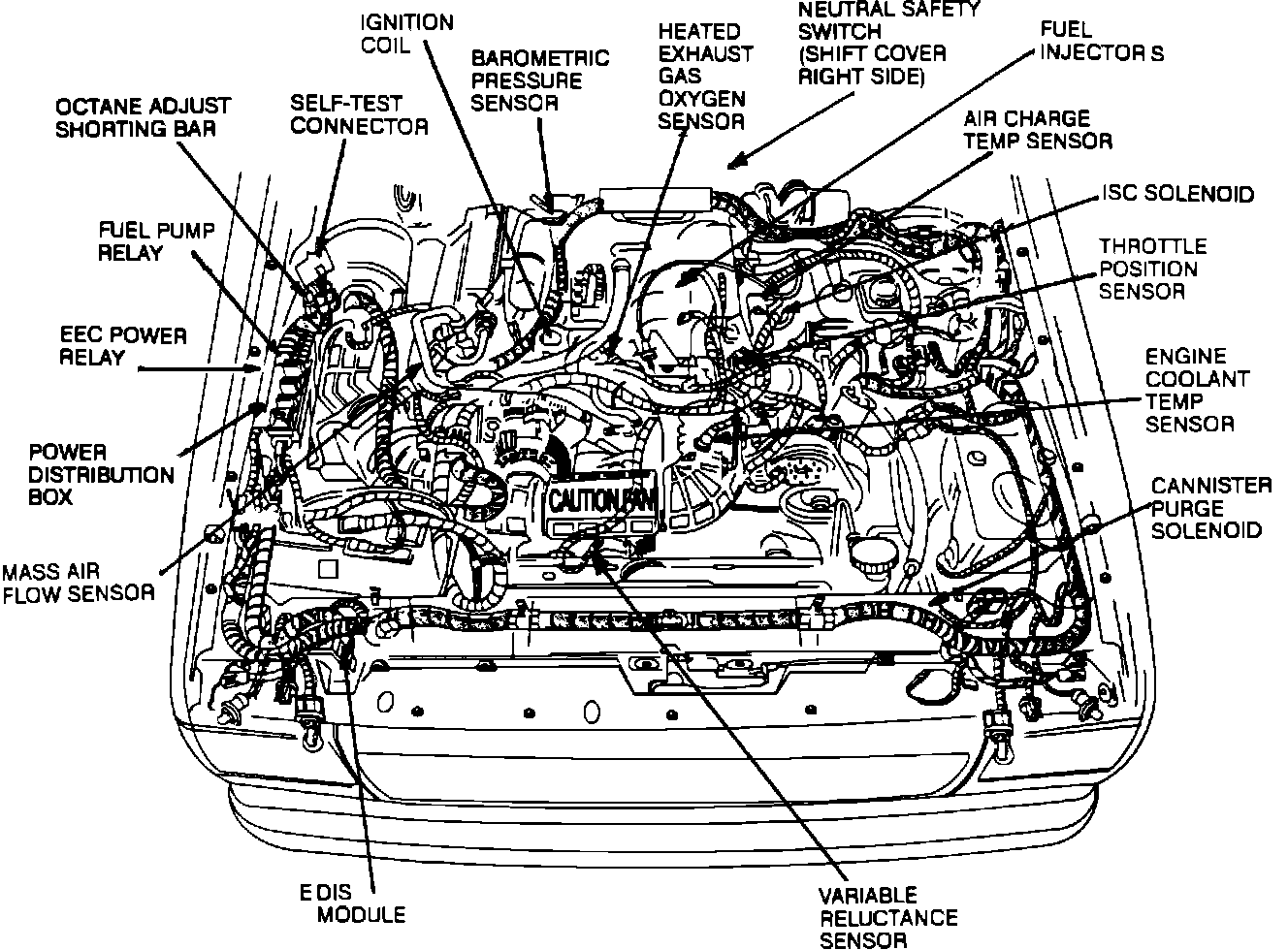

Component Locations:






BRAKE ON/OFF SWITCH (BOO)
Located beneath left side of dash near brake pedal.

CLUTCH INTERLOCK THREE FUNCTION SWITCH
Located beneath left side of dash near clutch pedal.

"CHECK ENGINE" LIGHT
Located on left side of instrument cluster.

ECA COMPUTER (FOR EEC SYSTEM)
Located behind right side kick panel.

WOT A/C CUT-OFF RELAY
Located in power distribution box on right side of engine compartment.

VEHICLE SPEED SENSOR (VSS)
Located in-line with the speedometer cable, left side of transmission (transfer case in 4X4 vehicles).
