QB - KOEO and/or Continuous Memory Code 15
Enter this Pinpoint Test only when you have been directed here from Quick Test.
This Pinpoint Test is only intended to diagnose the following:
1.
ECA computer processor.
2.
Harness circuit: PWR GND, VPWR, KAPWR, IGNITION.

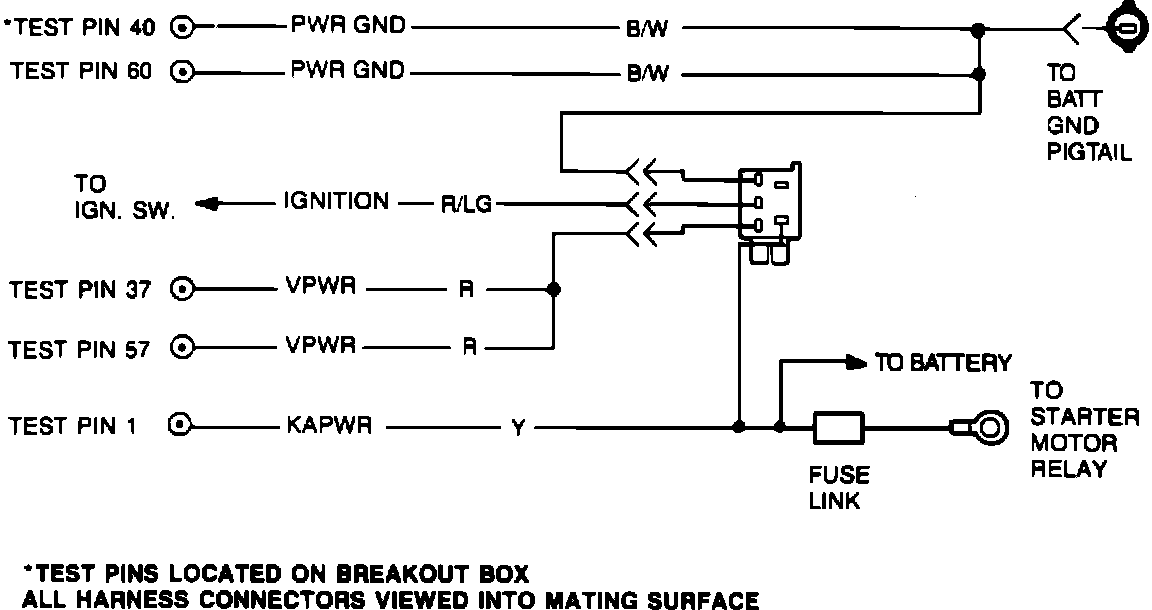

PINPOINT TEST QB SCHEMATICPinpoint Test QB Schematic:

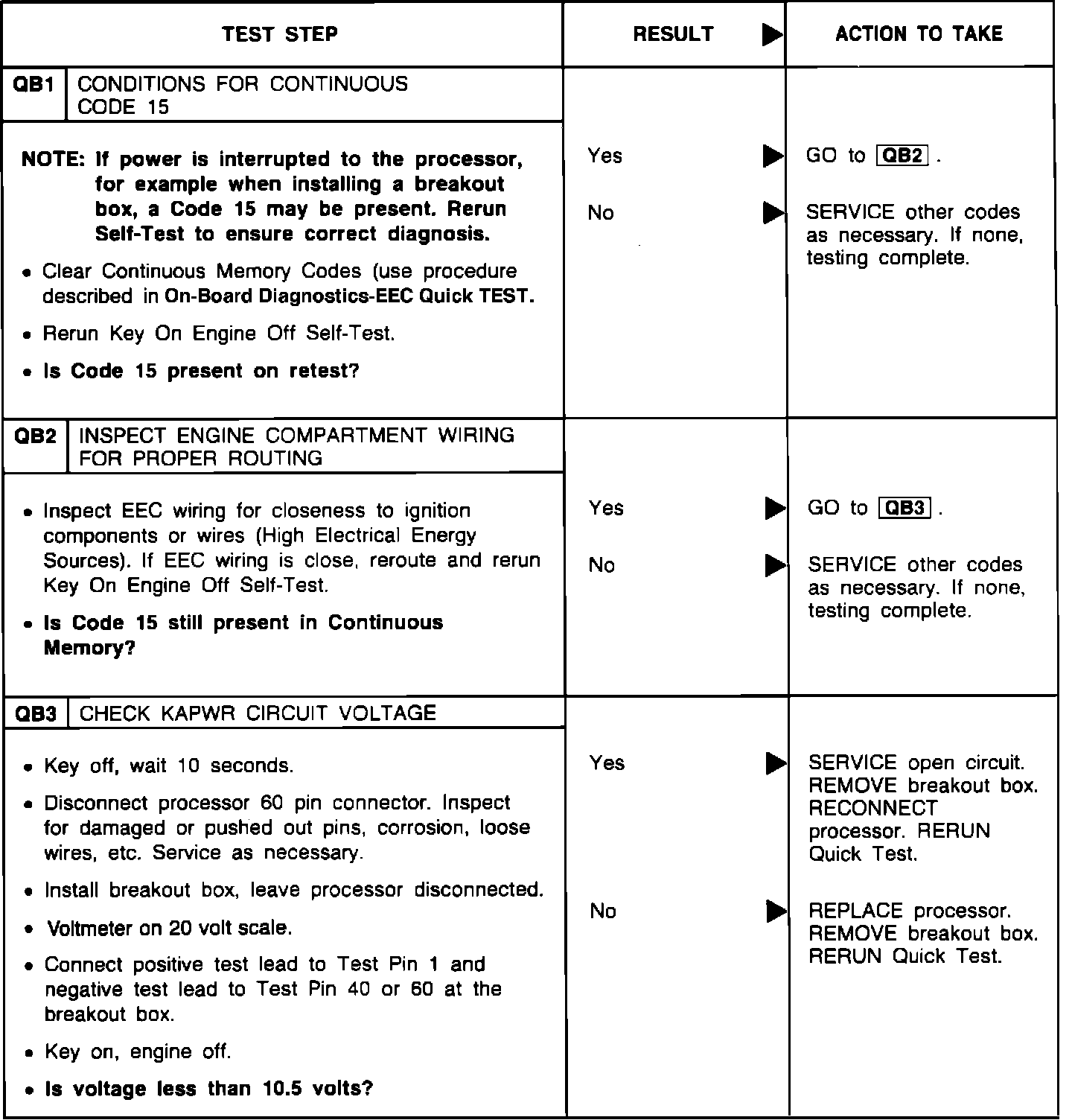

TEST STEPS QB1 - QB3Test Steps QB1 - QB3:
