QD - RE-Initialization Check
Enter this Pinpoint Test only when service code 19 is received during Quick Test or you are directed here from Quick Test step 9.0 (Diagnosis By Symptom.
This Pinpoint Test is only intended to diagnose the following:
1.
EEC power relay.
2.
Harness circuits: GND, VPWR, IGNITION.
3.
ECA computer processor.

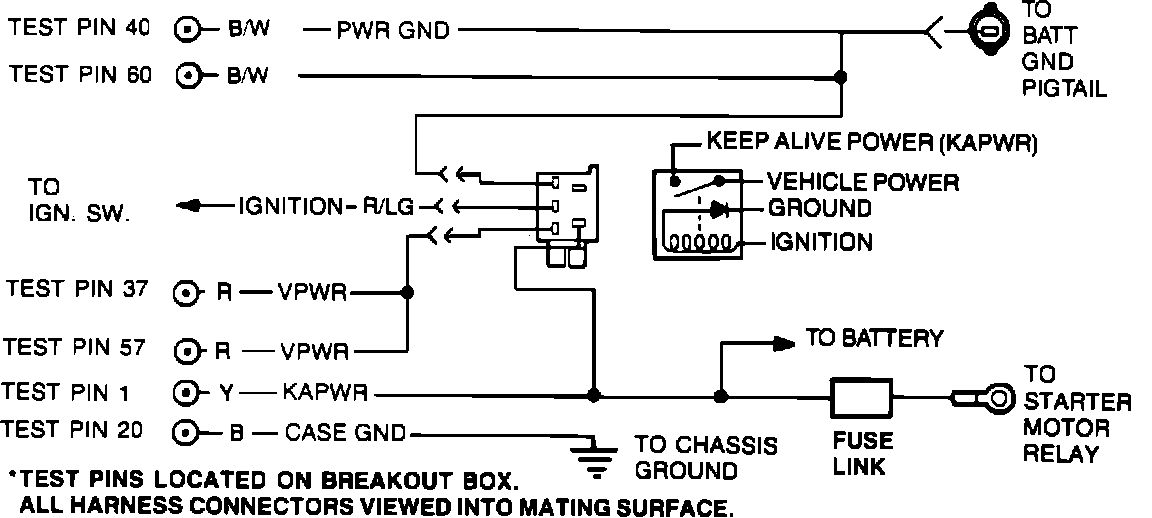

PINPOINT TEST QD SCHEMATICPinpoint Test QD Schematic:

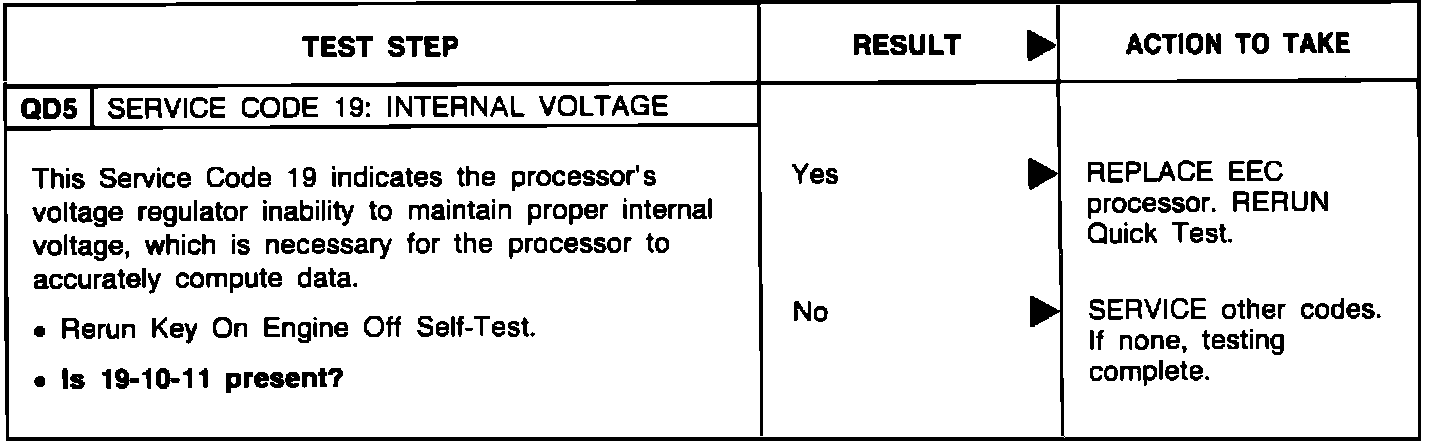

TEST STEP QD5Test Step QD5:
