Fluid - Transfer Case: Service and Repair

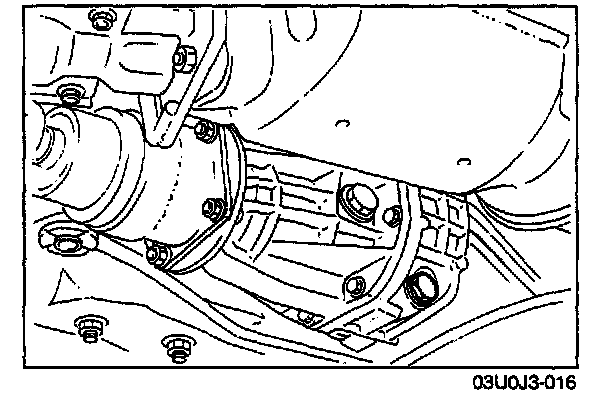

1. Remove the drain plug. Drain the oil into a suitable container.
2. Install a new washer and the drain plug.

Tightening torque: 39 - 58 N-m (4.0 - 6.0 m-kg, 28 - 43 ft-lb)

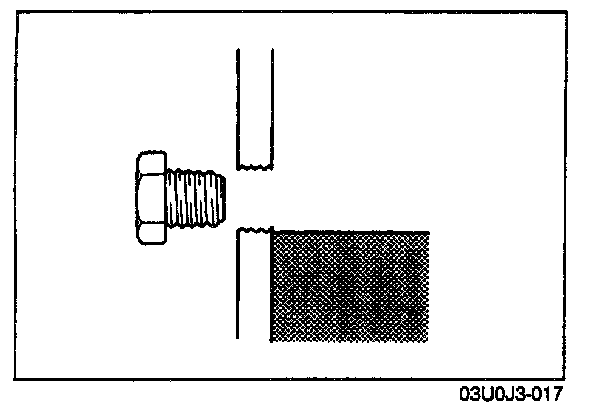

3. Add the necessary amount of the specified oil through the check plug port.

Grade : API service GL-5
Specified oil: Above -18 °C (0 °F) SAE 90
Below -18 °C (0 °F) SAE 80W
Capacity : 0.5 liter (0.53 US qt, 0.44 Imp qt)

4. Install the check plug.

Tightening torque: 39 - 58 N-m (4.0 - 6.0 m-kg, 28 - 43 in-lb)
