Blower Motor: Service and Repair

Blower Unit

Removal

1. Remove the glove box and the lower panel.
2. Remove the nuts and the blower unit.

Installation
- Install in the reverse order of removal.

Disassembly And Assembly

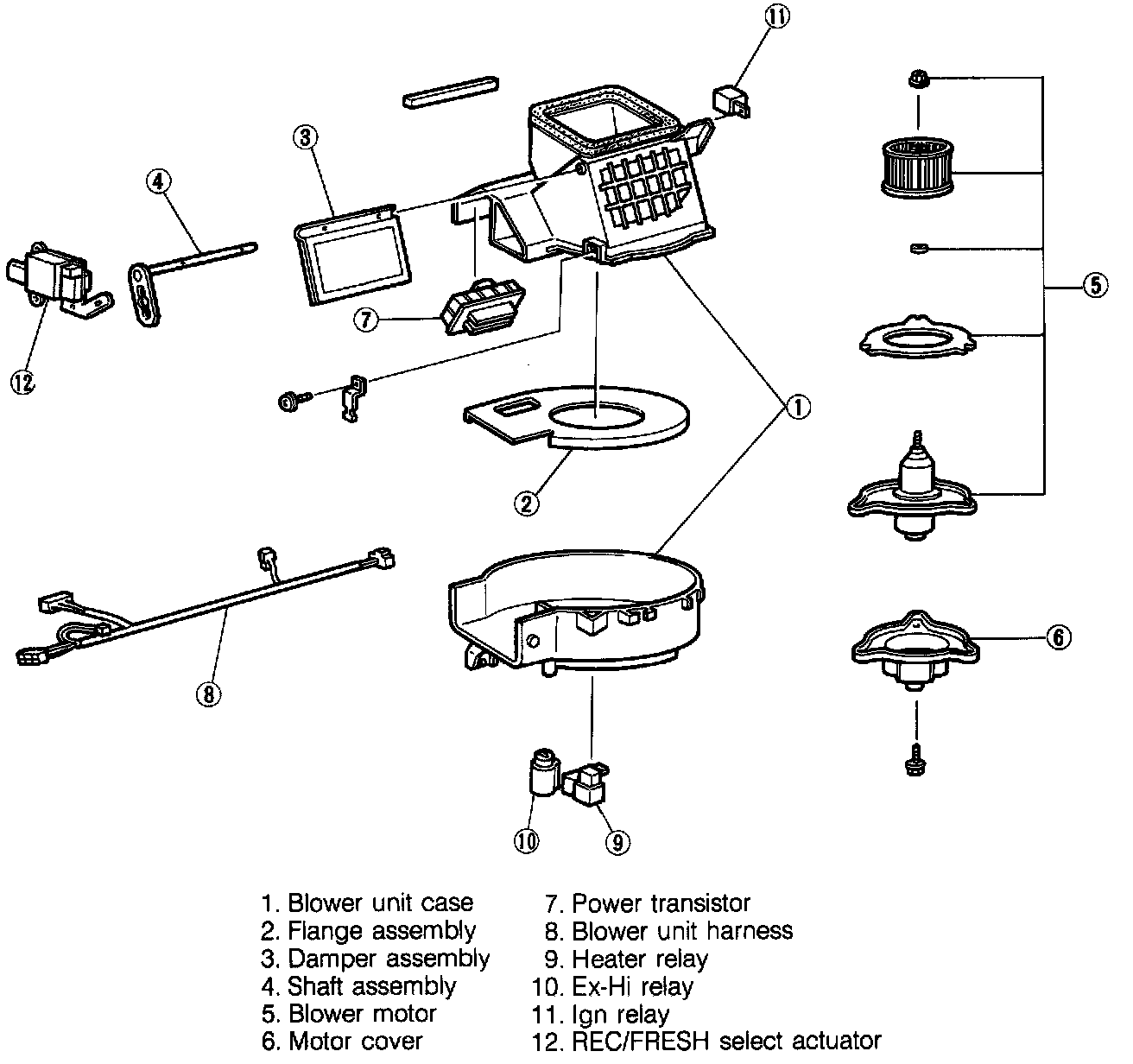

- Disassemble and assemble as shown.

Blower Motor

Removal
1. Disconnect the blower motor connector.

2. Remove the screws.
3. Remove the motor cover and the blower motor.

Installation
- Install in the reverse order of removal.
