Toe-In

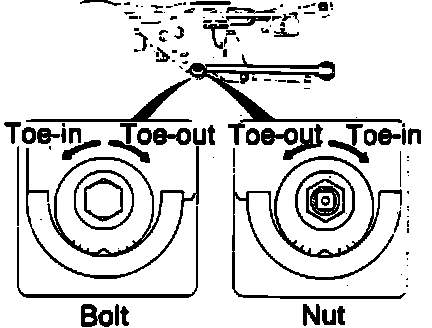

Fig. 1 Rear Toe In Adjusting Bolts:

1. Turn the left and right adjusting cams by the same amount and adjust toe-in until specified value is obtained, Fig. 1.
2. To decrease the toe-in turn adjusting cam clockwise for the right arm or counterclockwise for the left arm.
3. To increase the toe-in, turn the adjusting cam counterclockwise for the right arm or clockwise for the left arm. Amount of toe-in change should be .09 inch for one wheel.
