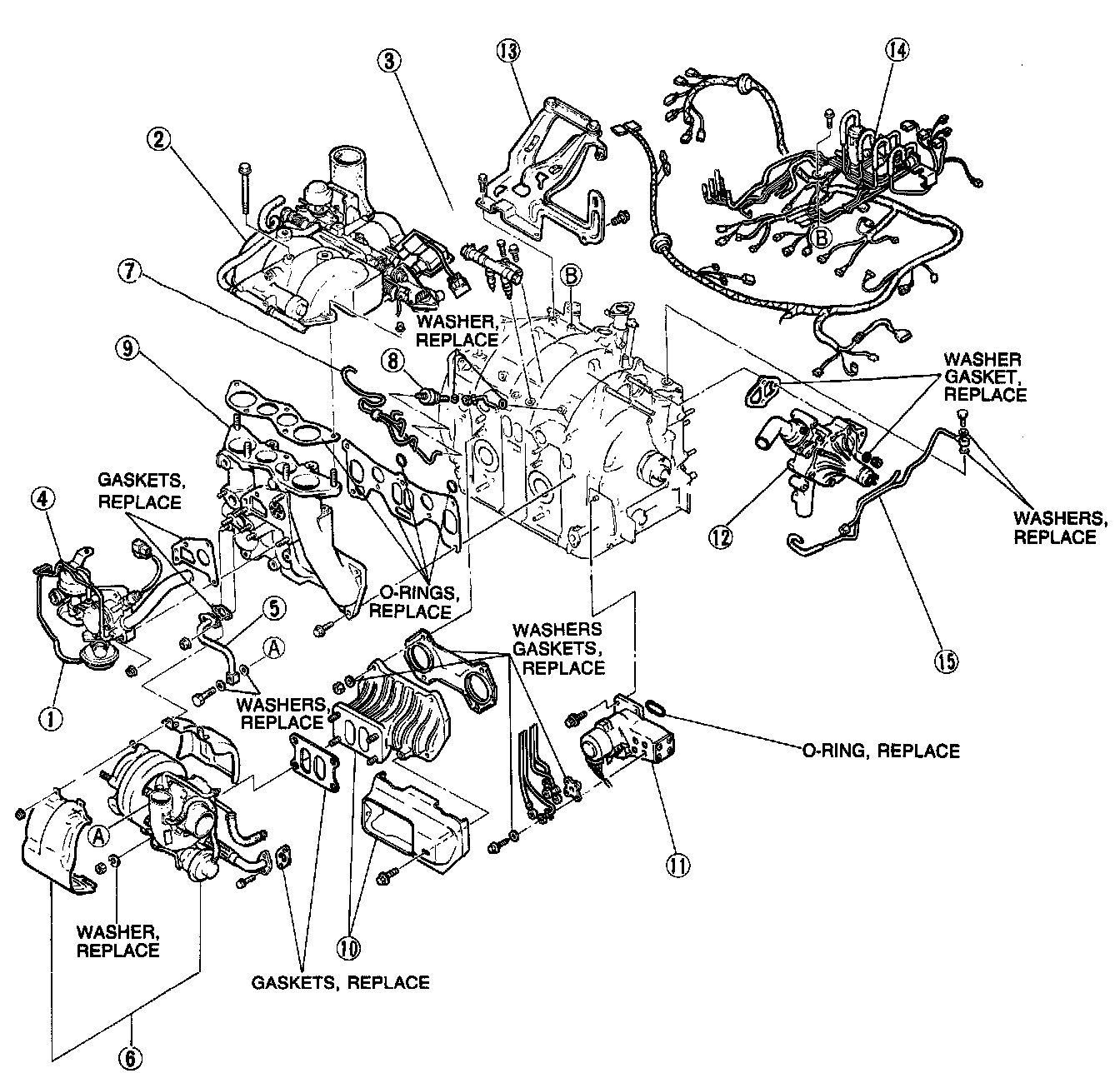

Intake Manifold
Legend 1.
Second vacuum piping
2.
Throttle and dynamic chamber
3.
Primary fuel injectors and distribution pipe
4.
Air control valve
5.
Water pipe
6.
Turbocharger and insulator
7.
Air hoses
8.
Housing oil nozzles and manifold oil nozzles
9.
Intake manifold 10.
Exhaust manifold and insulator
11.
Metering oil pump
12.
Water pump
13.
Dynamic chamber bracket
14.
Engine harness and vacuum piping
15.
Oil inlet pipe
