Mode Switch

MODE SWITCH

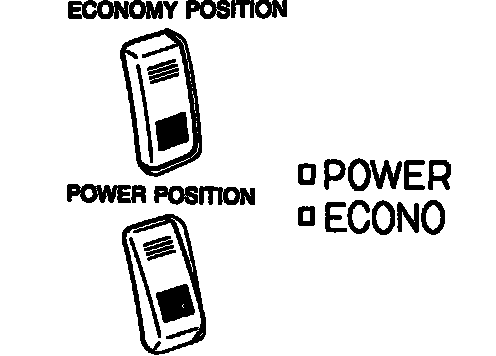

Inspection of Operation





1. Turn the ignition switch ON.
2. Check that the mode indicator illuminates in each mode.
3. If not as specified, measure terminal voltage of the mode switch.

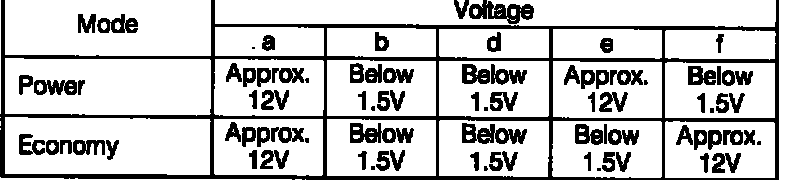

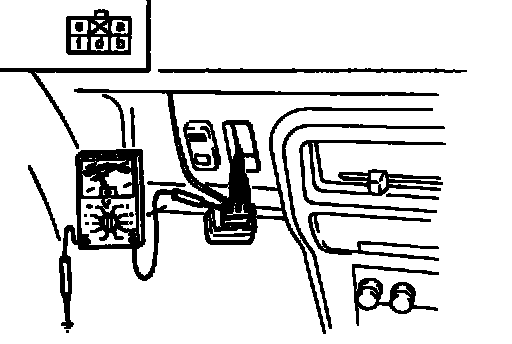

Inspection of Terminal Voltage





1. Disconnect the mode switch.
2. Turn the ignition switch ON and verify that the light switch is OFF.
3. Measure the voltage between each terminal and a ground.





4. If not correct, check continuty between the terminals.

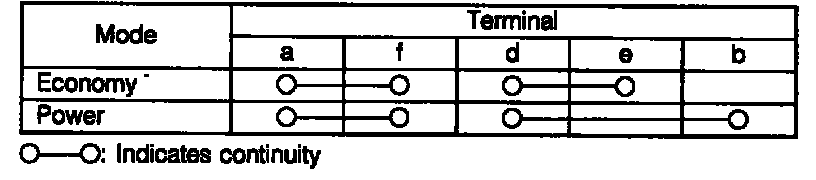

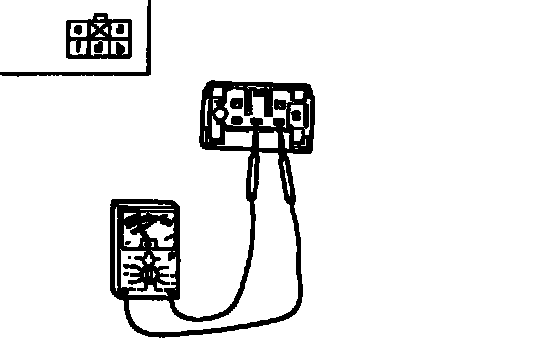

Inspection of Continuity





1. Disconnect the mode switch connector.
2. Check continuity between the terminals.





3. If not correct, replace the mode switch.
