Connector Views

CPU 9-Pin Connector (In Joint Box)

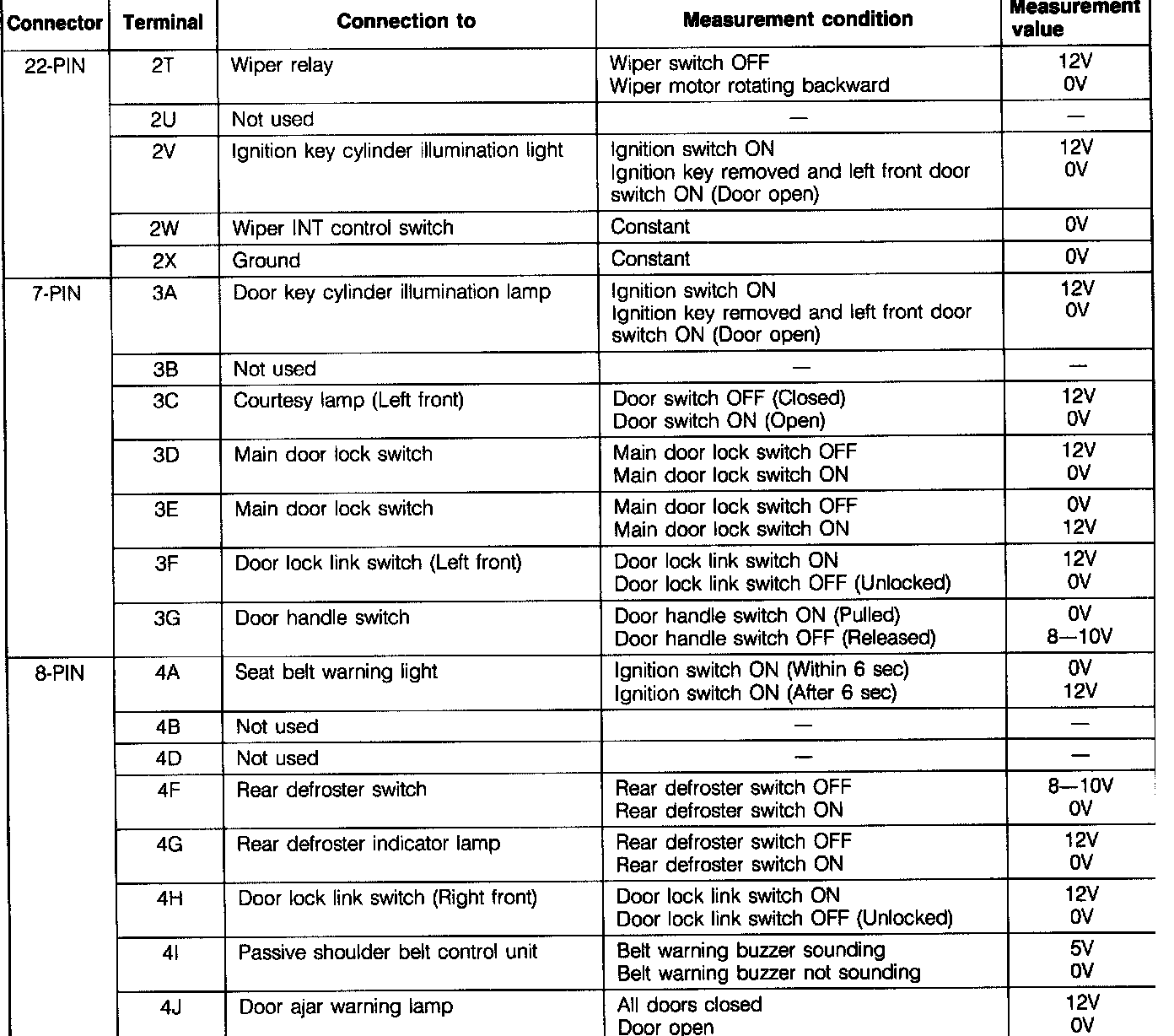

CPU 7-pin Connector

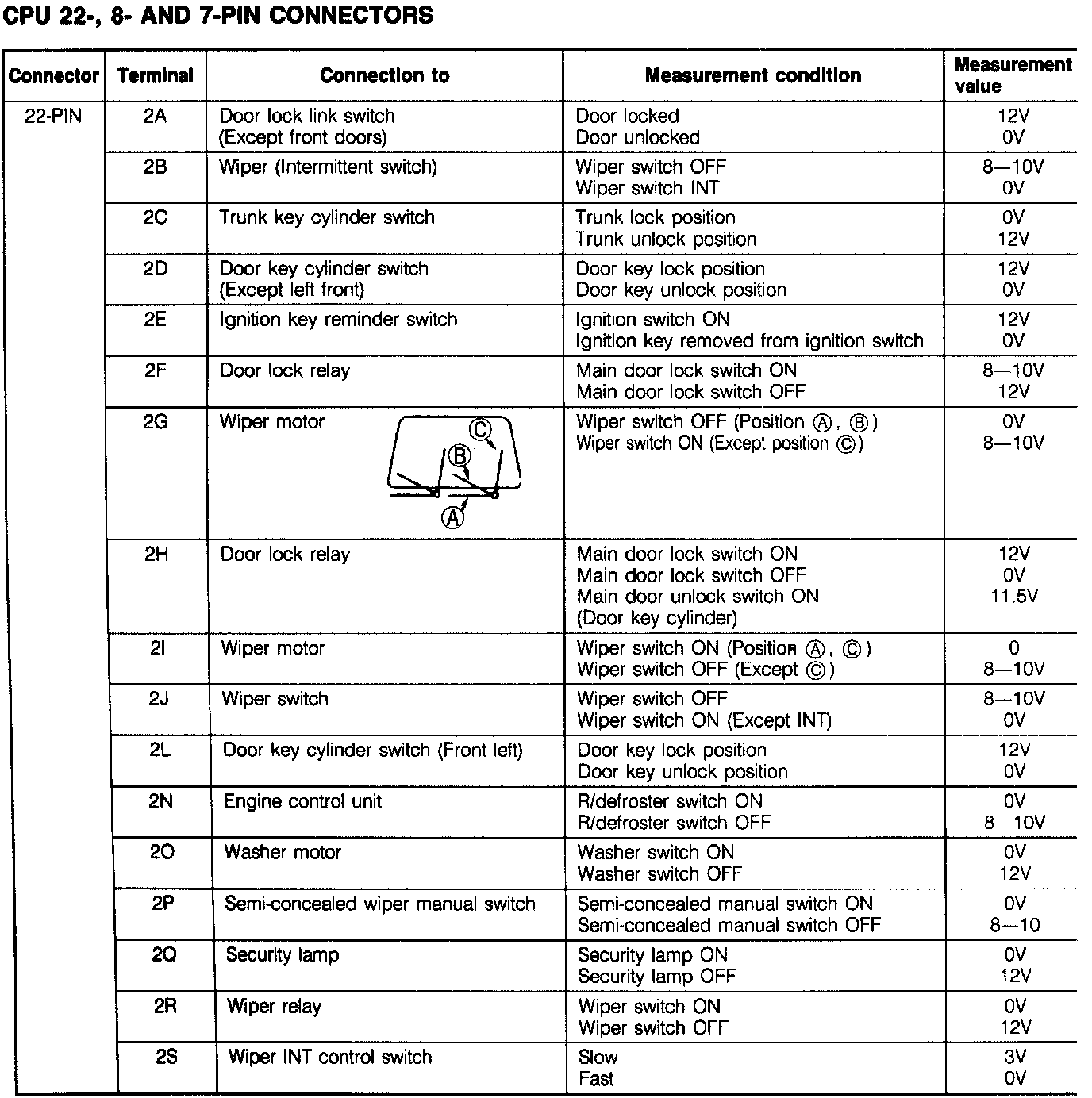

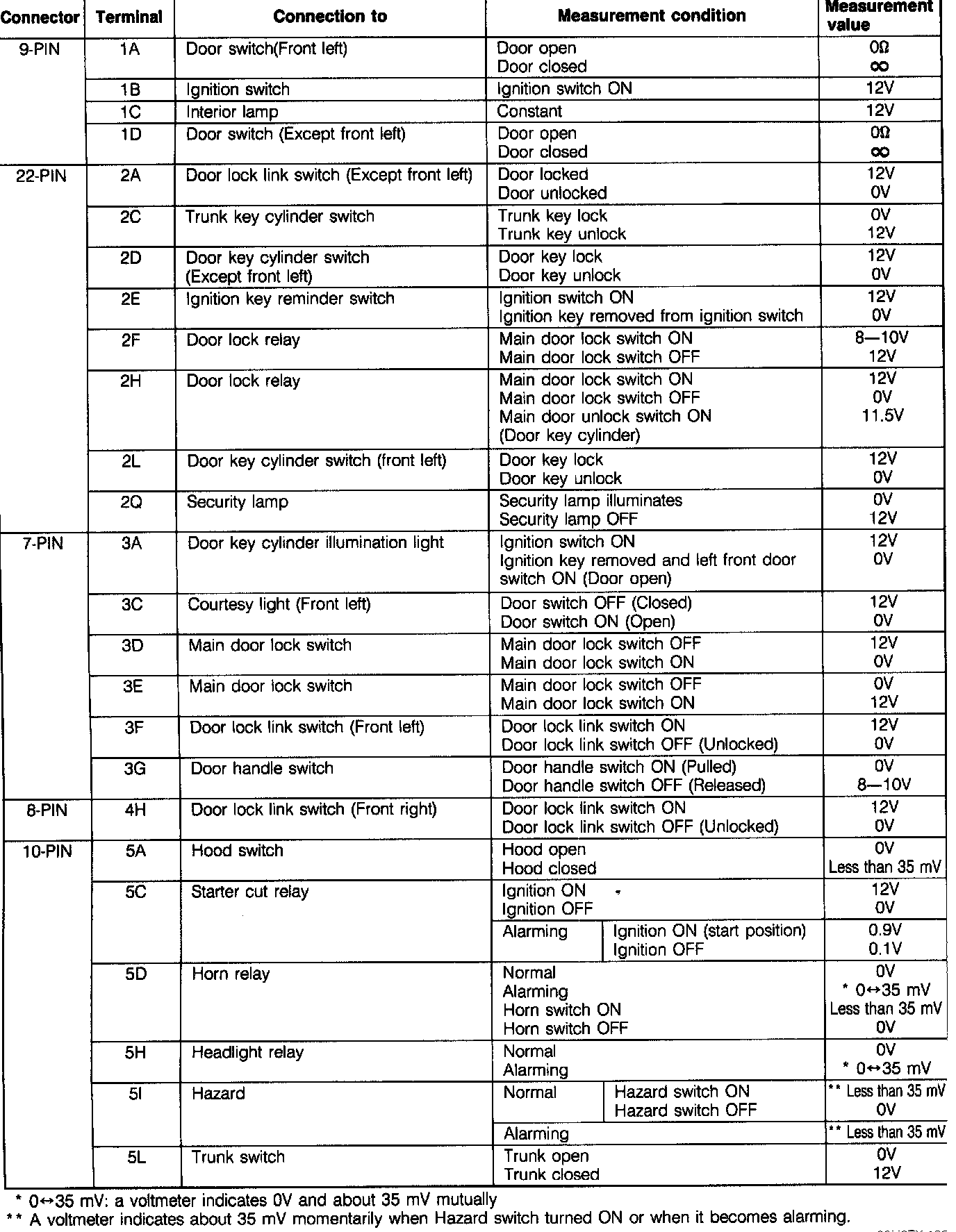

CPU 9-pin, 22-pin, 7-pin, 8-pin, 10-pin connectors (Refer to Theft Deterrent System)

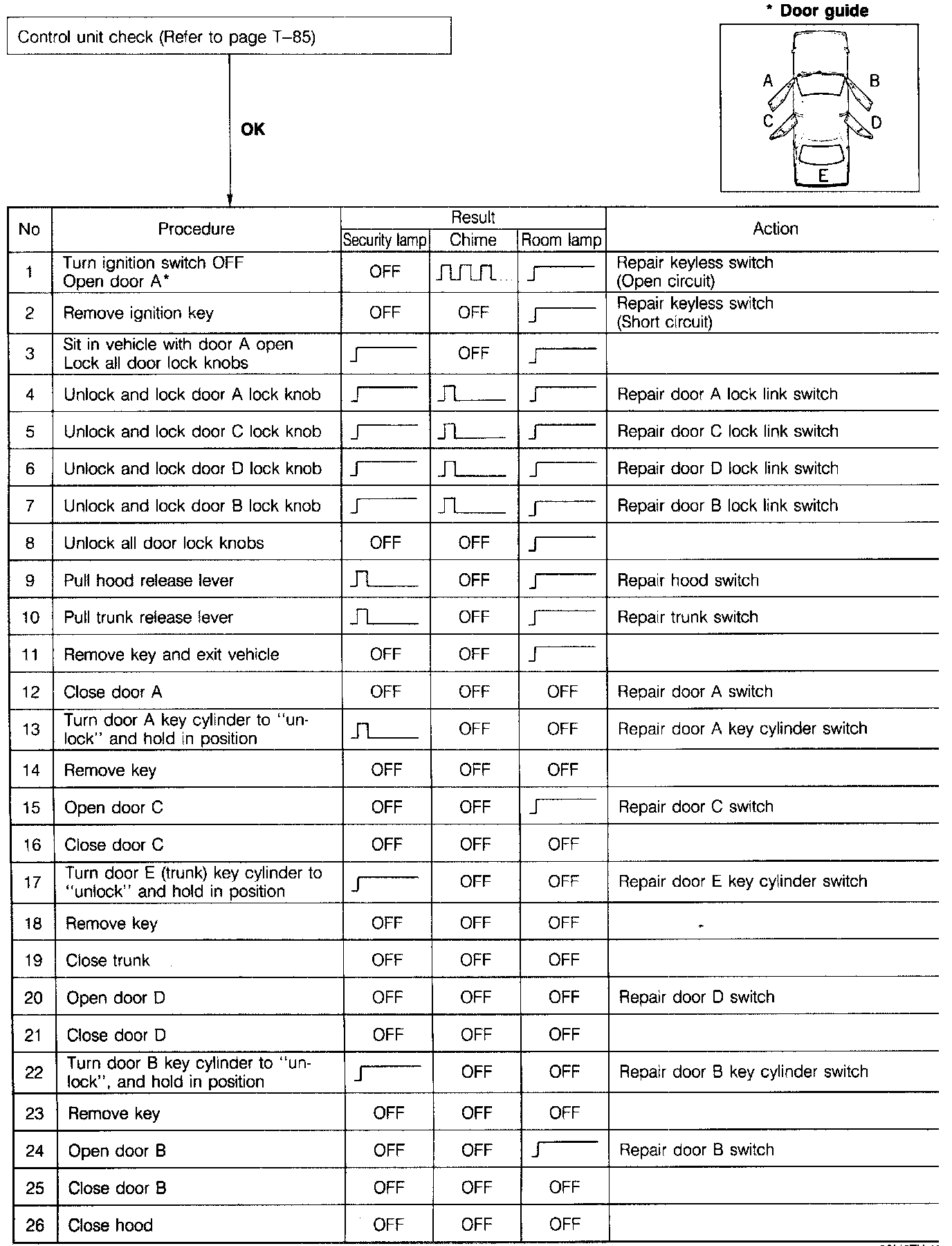

THEFT-DETERRENT SYSTEM
