License Plate - Proper Installation Procedures

9215mazda01

Bulletin No.: 019/91
Issued: 12/4/91
Revised:


Subject: LICENSE PLATE INSTALLATION


Applicable Model/s: 1992 929


Category: S





DESCRIPTION

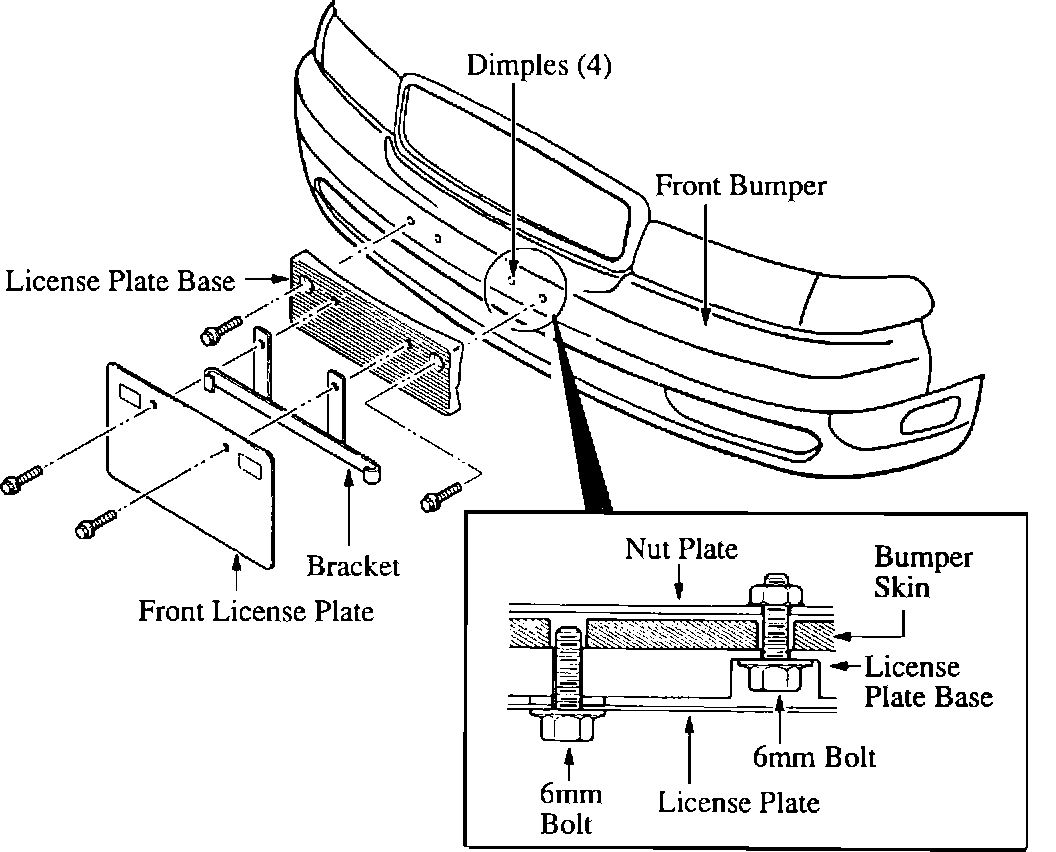

The front bumper has four (4) small dimples to help locate license plate base installation nuts that are hidden behind the bumper skin.

Refer to the procedures below for proper license plate base and bracket installation.


INSTALLATION PROCEDURE

1. Drill an 8 mm diameter hole, 5 mm deep, through all four dimples in the front bumper.

CAUTION:
Drilling too deep may result in damage to the mounting nuts.

2. Install the license plate base through the outer holes using the 6 mm bolts provided.

3. Install the license plate with bracket to the base through the inner holes with 6 mm x 1 mm x 16 mm bolts.


NOTE:
Two 6 mm bolts that are required for bracket and license plate installation are not provided with the license plate bracket. These must be obtained from your local supplier.
