Component Locations

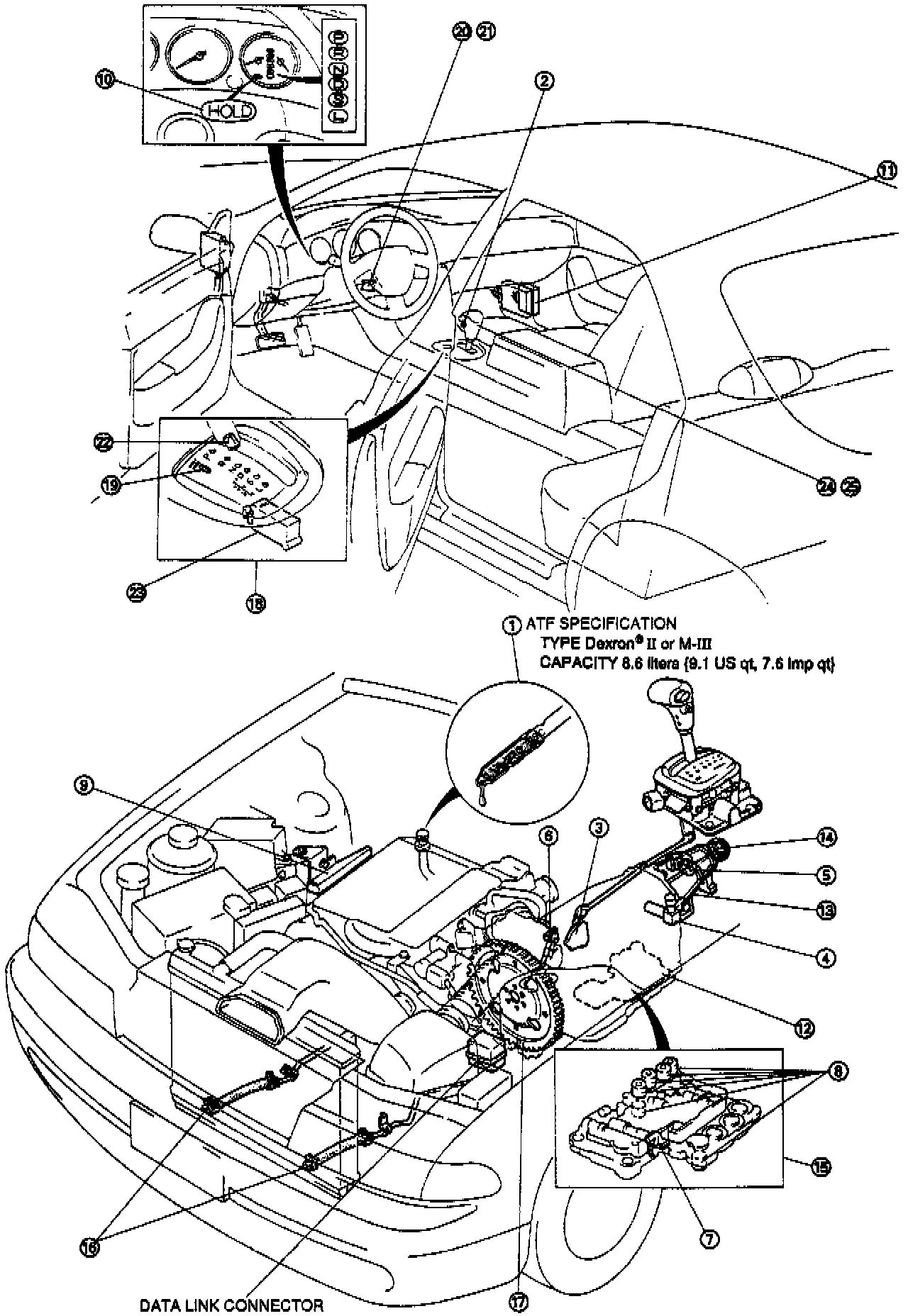

Electronic Transmission Component Locations:






1. Automatic transmission fluid (ATF)
2. Hold switch
3. Park/Neutral switch
4. Vehicle speed sensor 1
5. Vehicle speed sensor 2
6. Vehicle speed pulse generator
7. ATF thermosensor
8. Solenoid valves
9. Dropping resistor
10. Hold indicator
11. Powertrain control module, transmission (PCMT)
12. Transmission unit
13. Extension housing/Parking mechanism
14. Oil seal (extension housing)
15. Control valve body
16. Oil cooler
17. Drive plate
18. Shift-lock
19. Emergency override button
20. Key interlock
21. Key interlock solenoid
22. P range switch
23. Shift-lock actuator
24. Selector lever
