Water Pump: Service and Repair

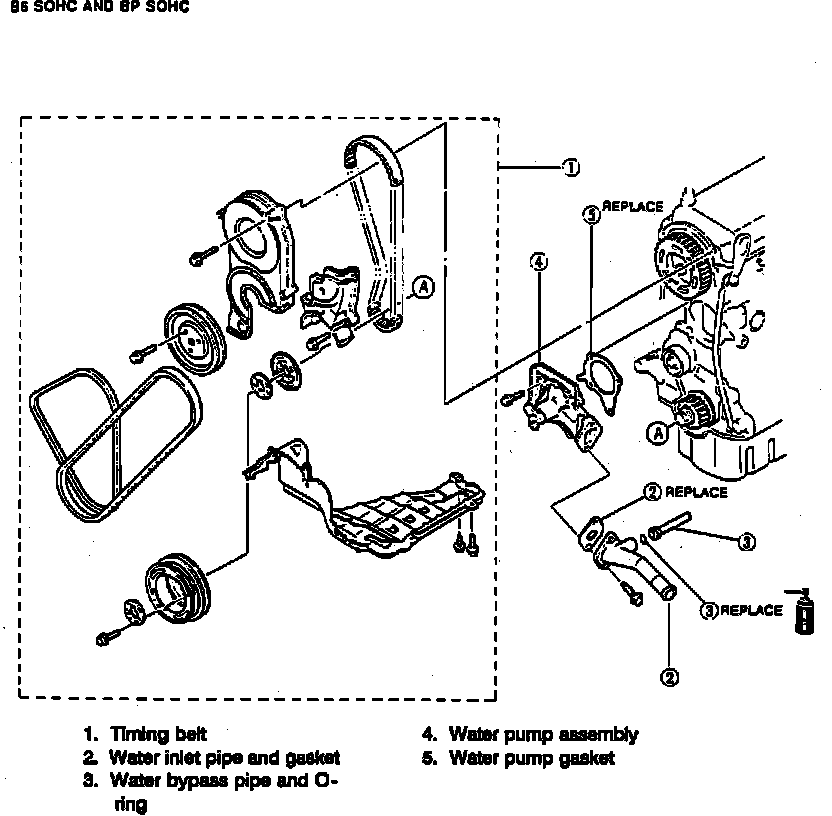

Fig. 109 Water Pump Replacement. SOHC Engine:

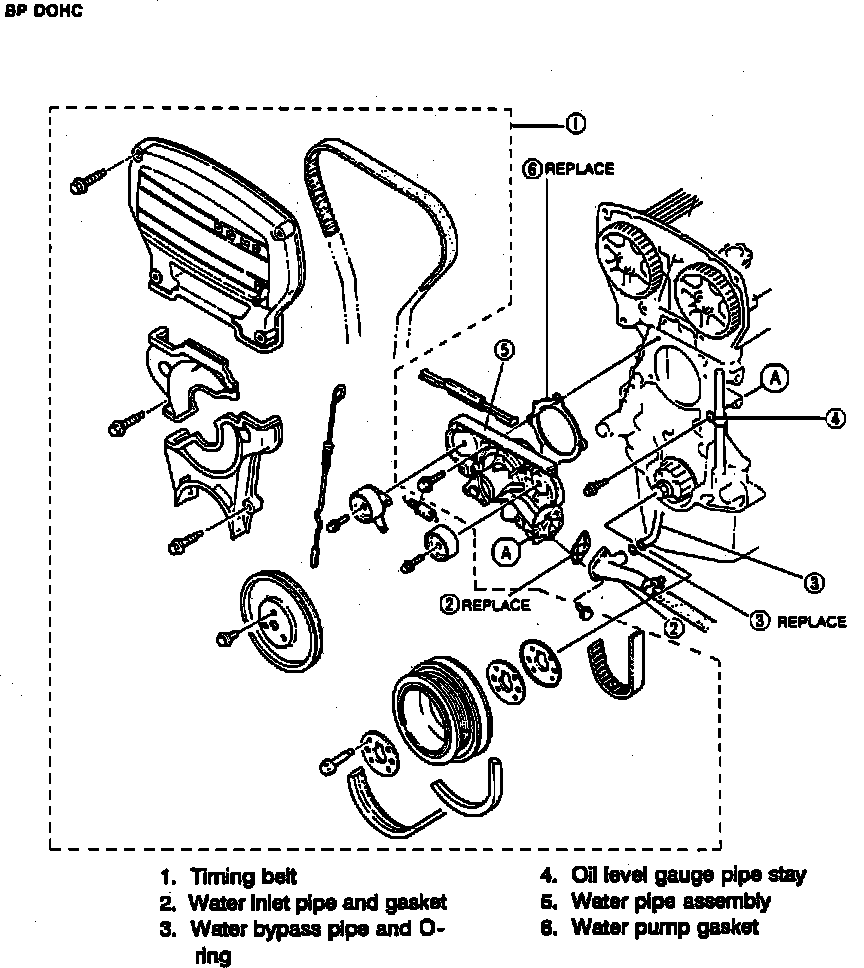

Fig. 110 Water Pump Replacement. DOHC Engine:
1.
Remove
timing belt, refer to
TIMING BELT. 2.
Remove water inlet and bypass pipes.
3.
Remove water pump mounting bolts, then water pump,
Figs. 109 and 110. 4.
Reverse procedure to install.
