Fuel Delivery and Air Induction: Locations

UNDER HOOD COMPONENTS

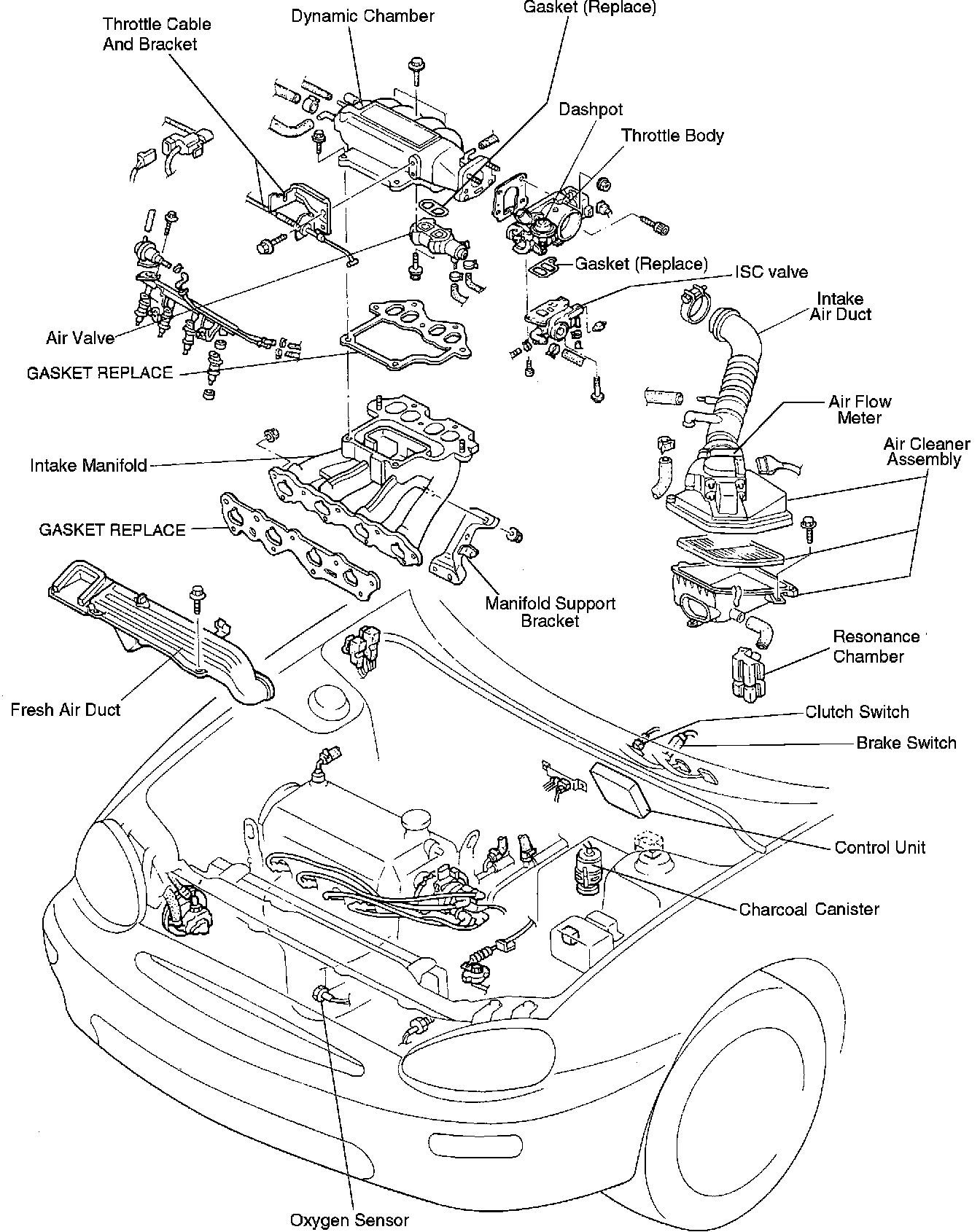

Fuel And Intake System:

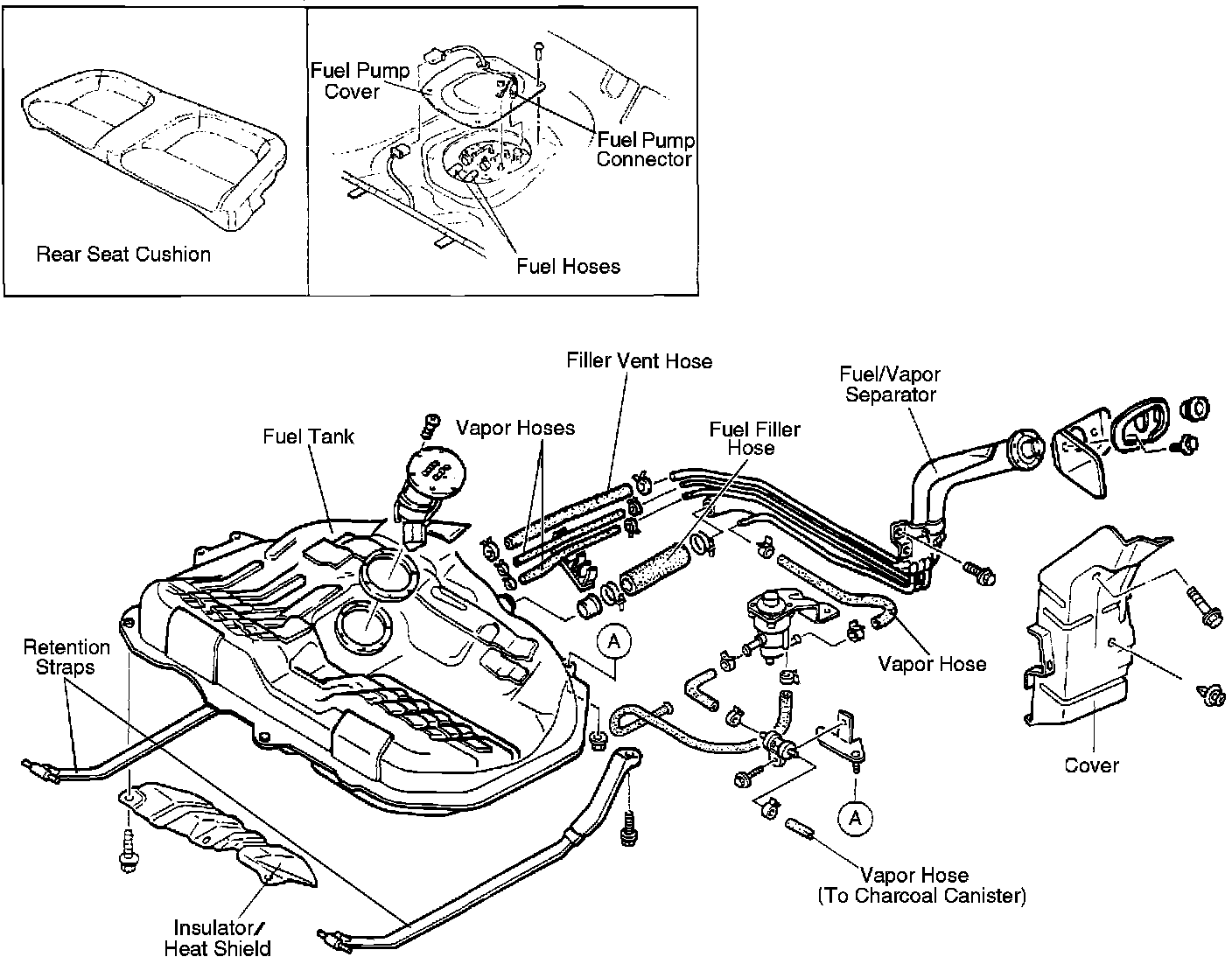

FUEL TANK COMPONENTS

Fuel Tank Assembly:

AIR VALVE
Engine side of intake manifold dynamic chamber.

CHECK AND CUT VALVE
Above fuel tank.

DASHPOT
On throttle body.

FUEL FILTER
Firewall, left side of engine compartment near brake master cylinder.

FUEL INJECTORS
Intake manifold near cylinder head.

FUEL PRESSURE REGULATOR
End of fuel rail (delivery pipe).

FUEL PUMP
In fuel tank.

FUEL PUMP RELAY (CIRCUIT OPEN RELAY)
Under dashboard in center console.

FUEL RAIL (DELIVERY PIPE)
Intake manifold, between cylinder head and intake manifold dynamic chamber.

IDLE SPEED CONTROL (ISC) VALVE
Bottom of throttle body.

THROTTLE BODY
Intake manifold dynamic chamber.
