Engine - Assembly Manual Revision

Bulletin No. 027/92
Issued 7/23/92
Revised

Category
W

Applicable Model/s
1992 MX-3

Subject:
WORKSHOP MANUAL CORRECTION

DESCRIPTION

The pages for the 1992 MX-3 Workshop Manual which required corrections for the reasons are listed.

Please replace the current pages with the replacement pages provided.

^ 1992 MX-3

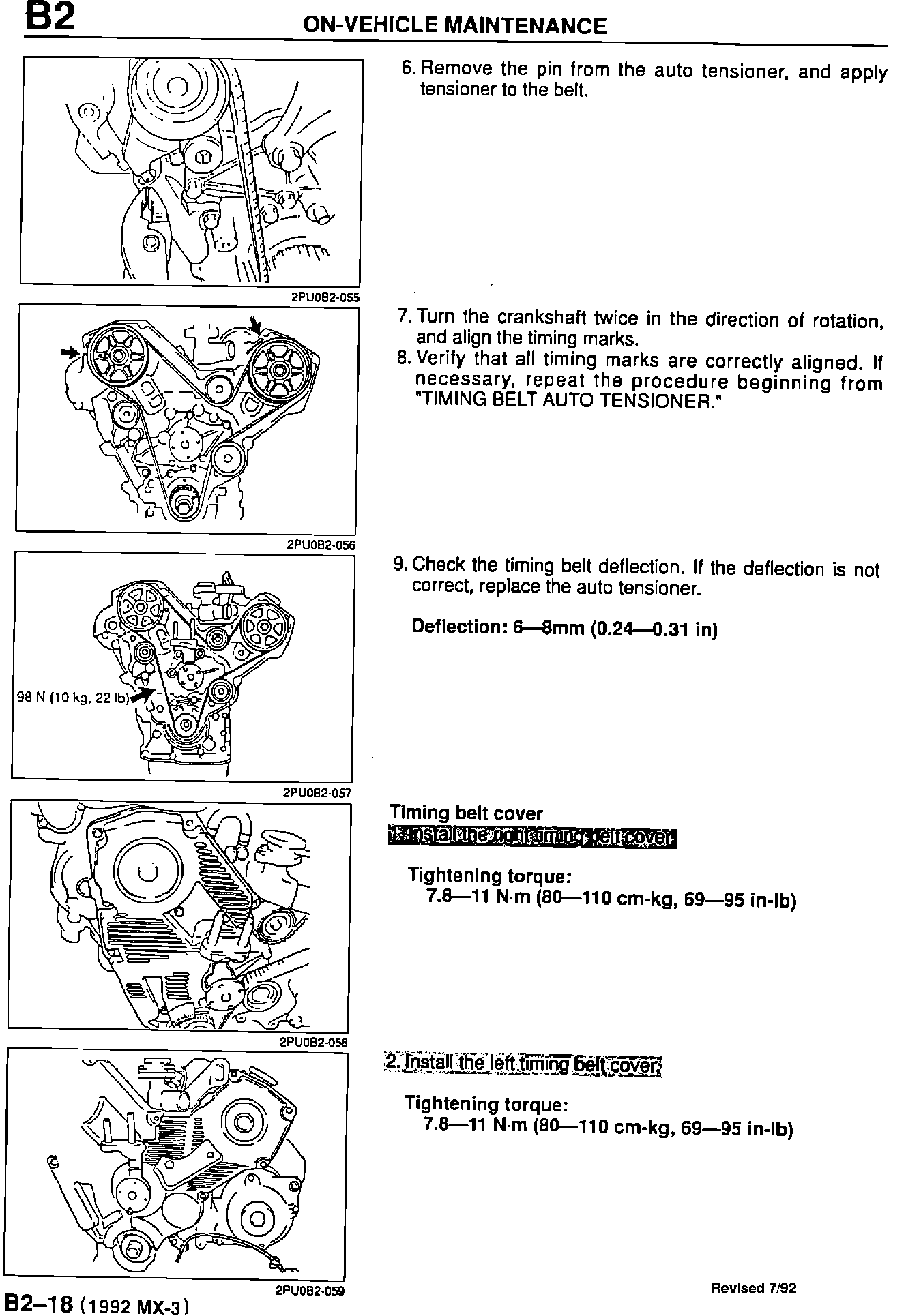

B2-18 - Changes to timing belt cover installation.

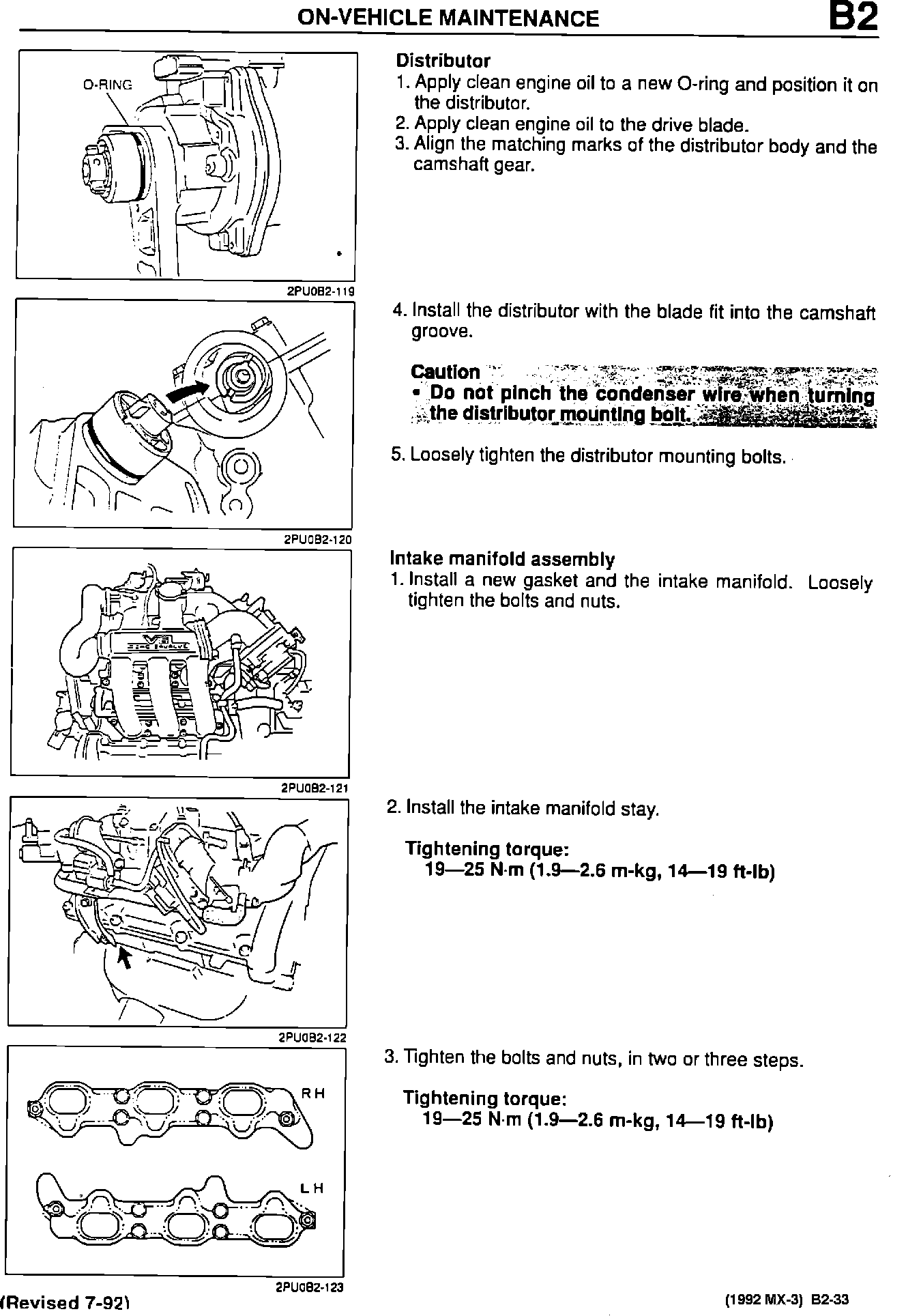

B2-33 - Caution regarding distributor installation.

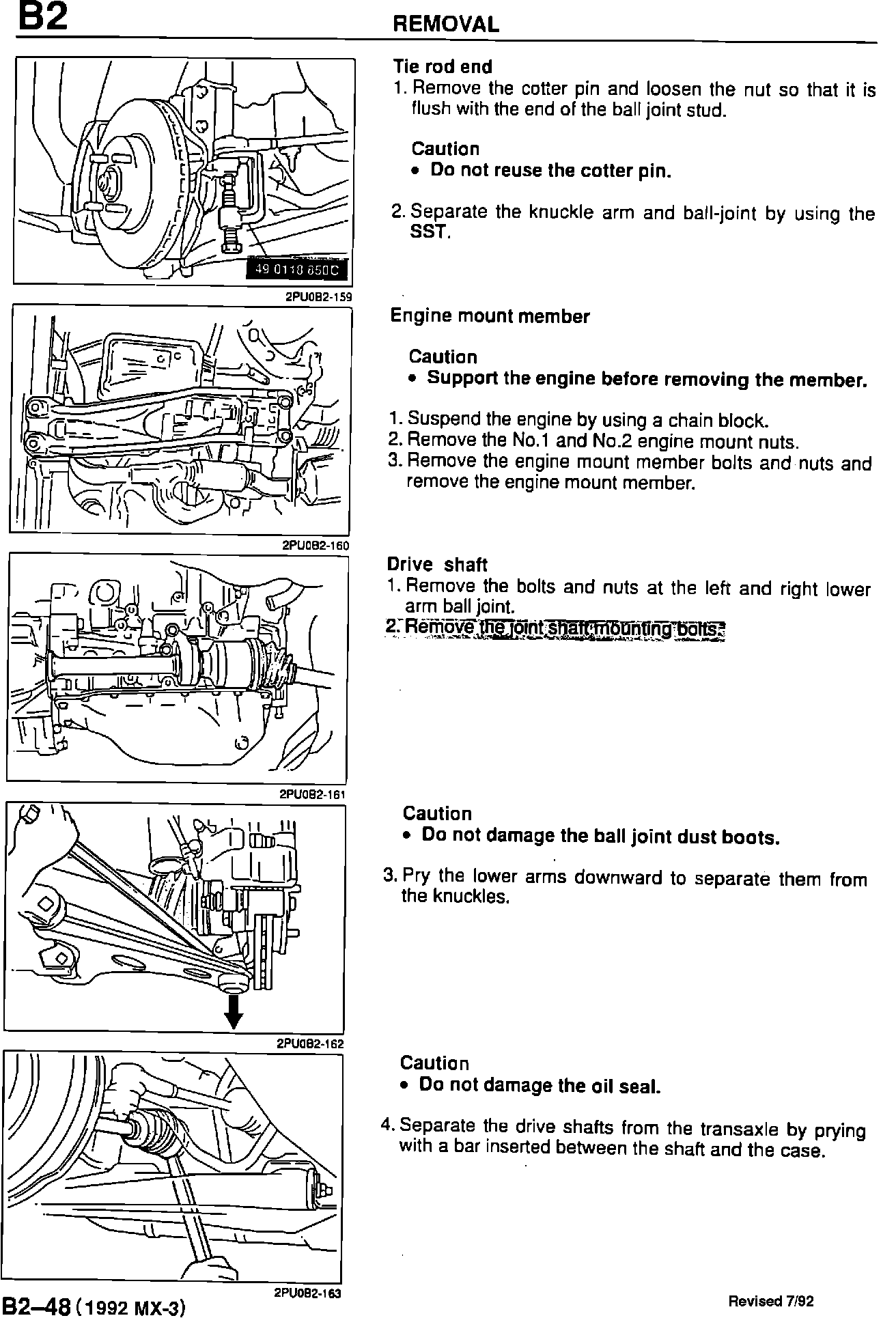

B2-48 - Added step on drive shaft removal.

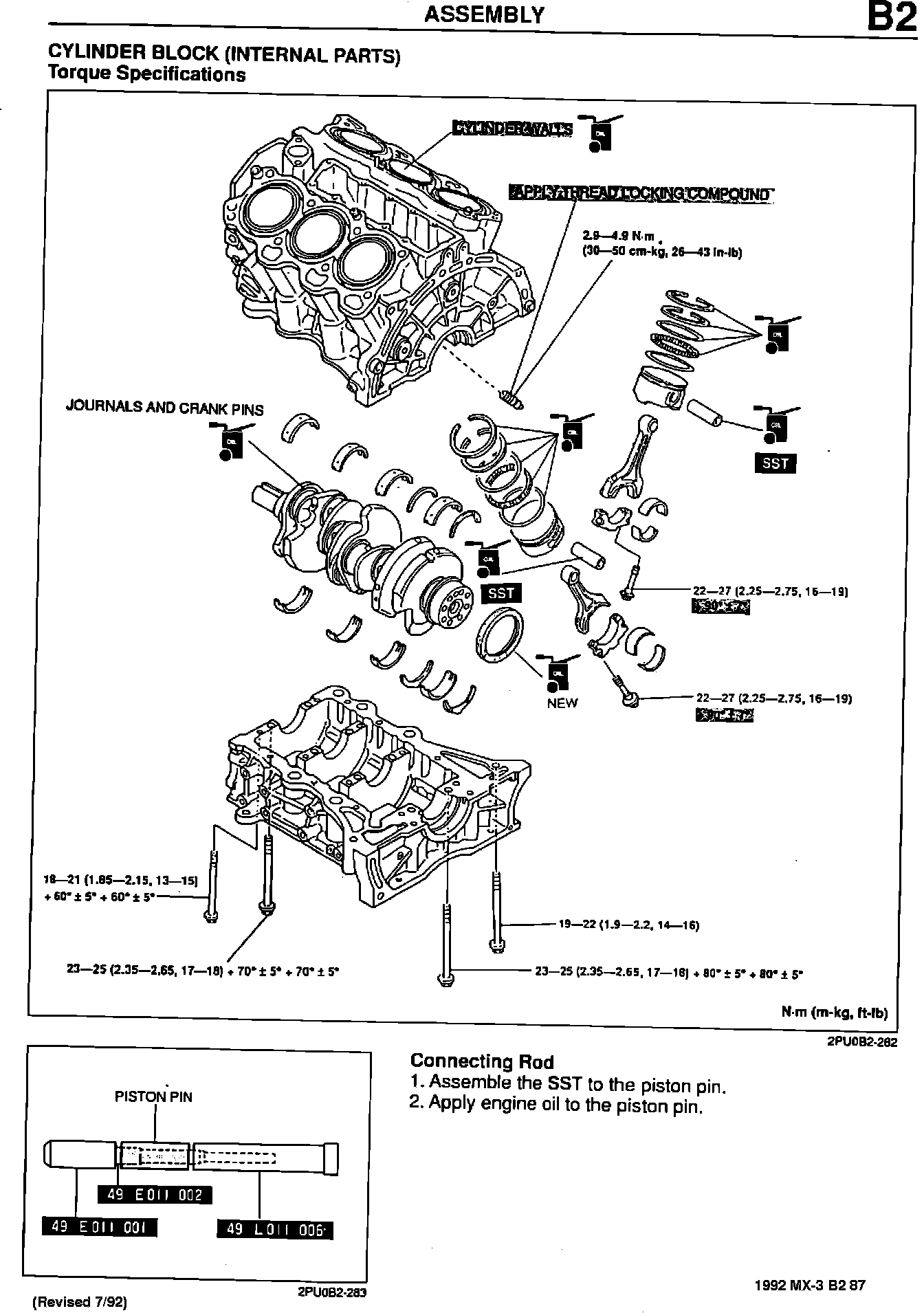

B2-87 - Installation recommendations added.

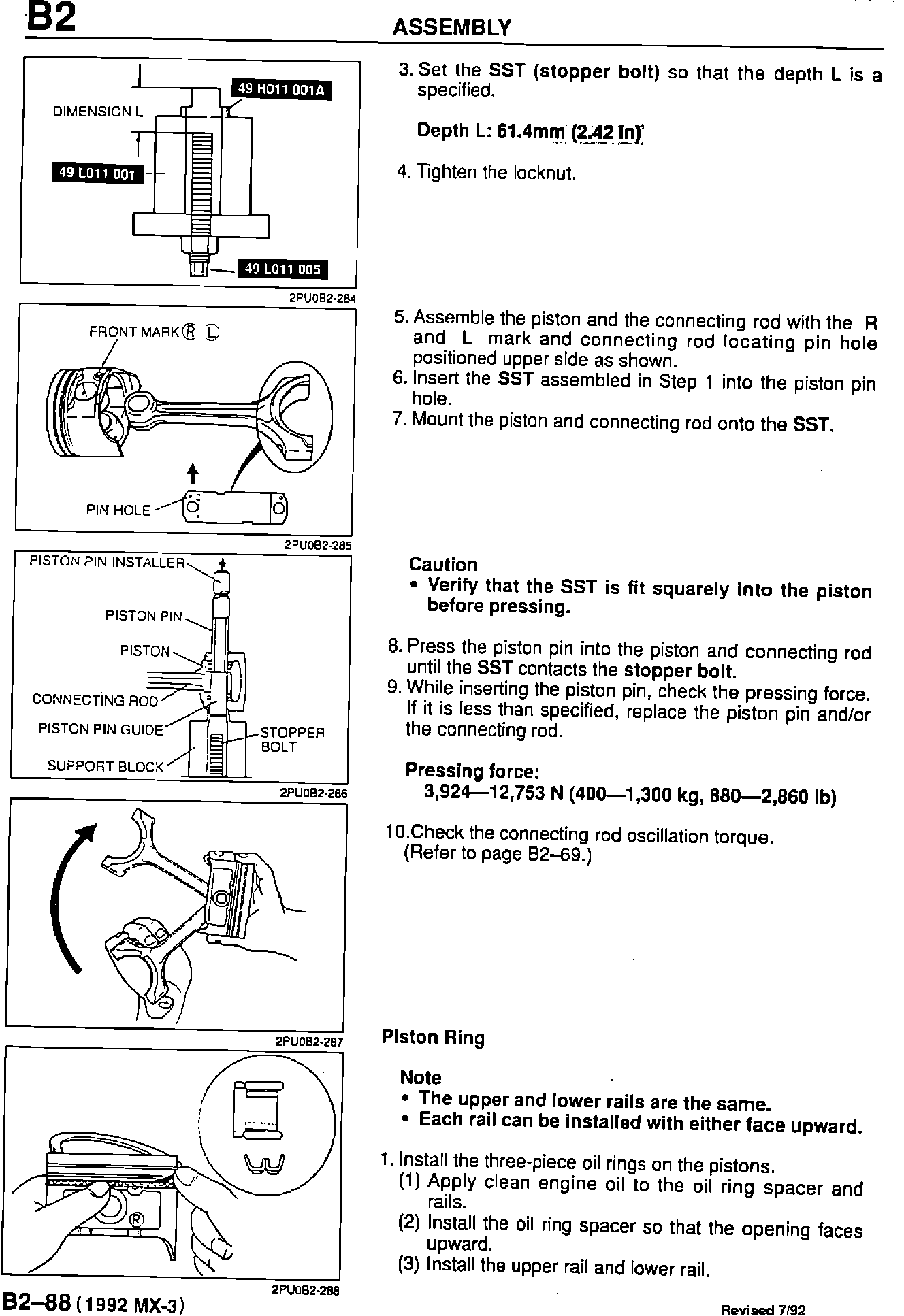

B2-88 - Inspection dimension added.

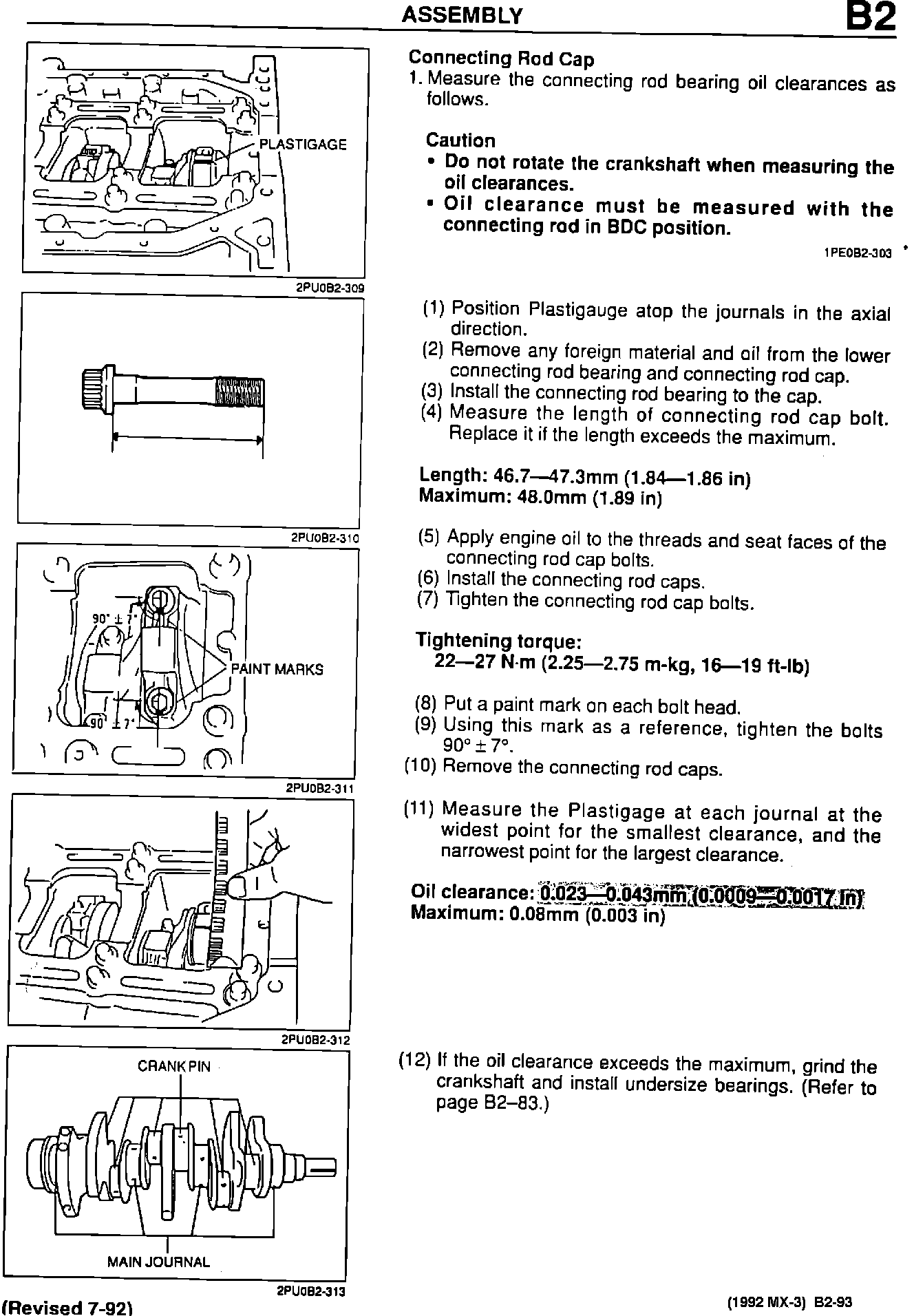

B2-93 - Inspection dimension added.

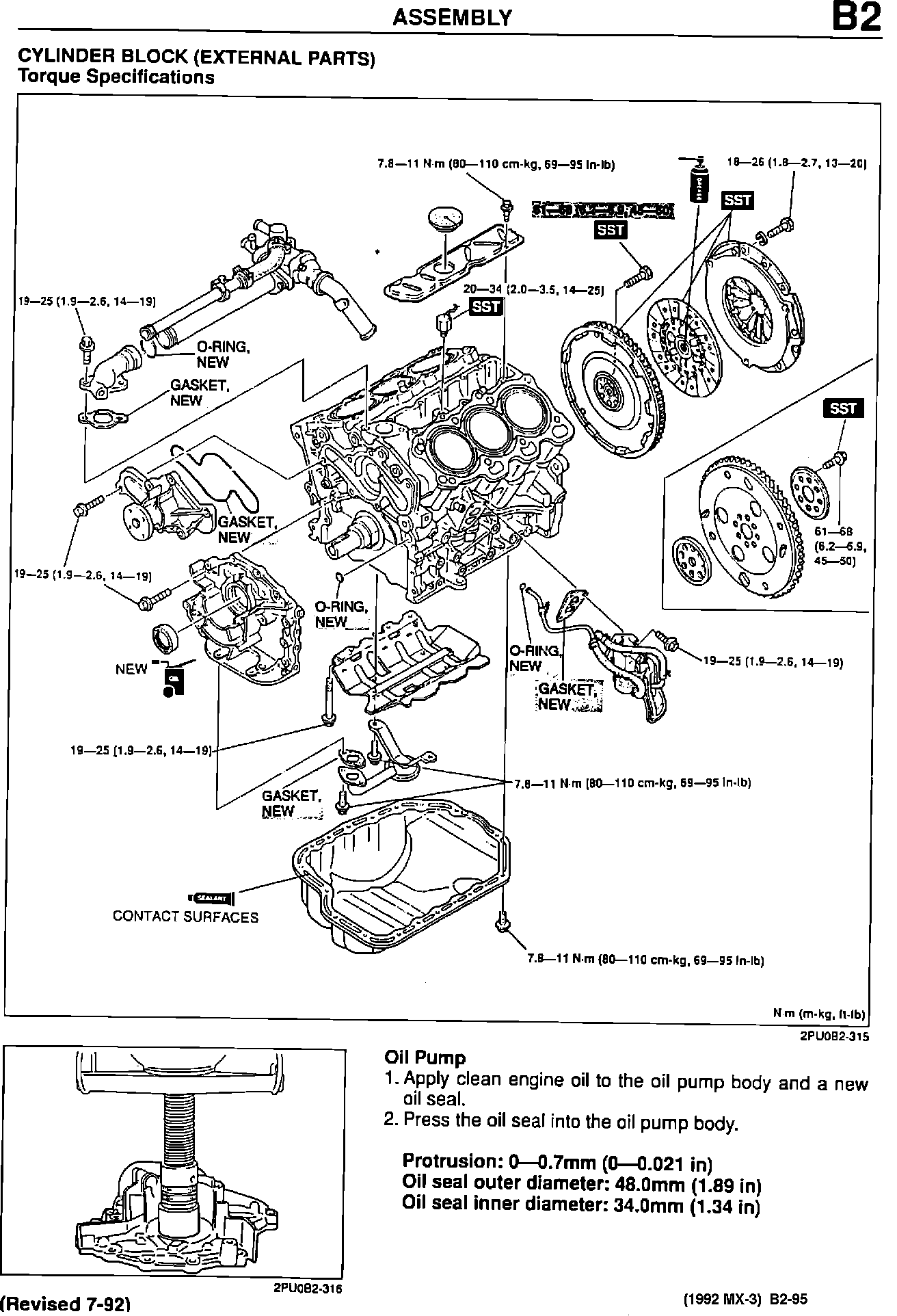

B2-95 - Installation recommendations added.

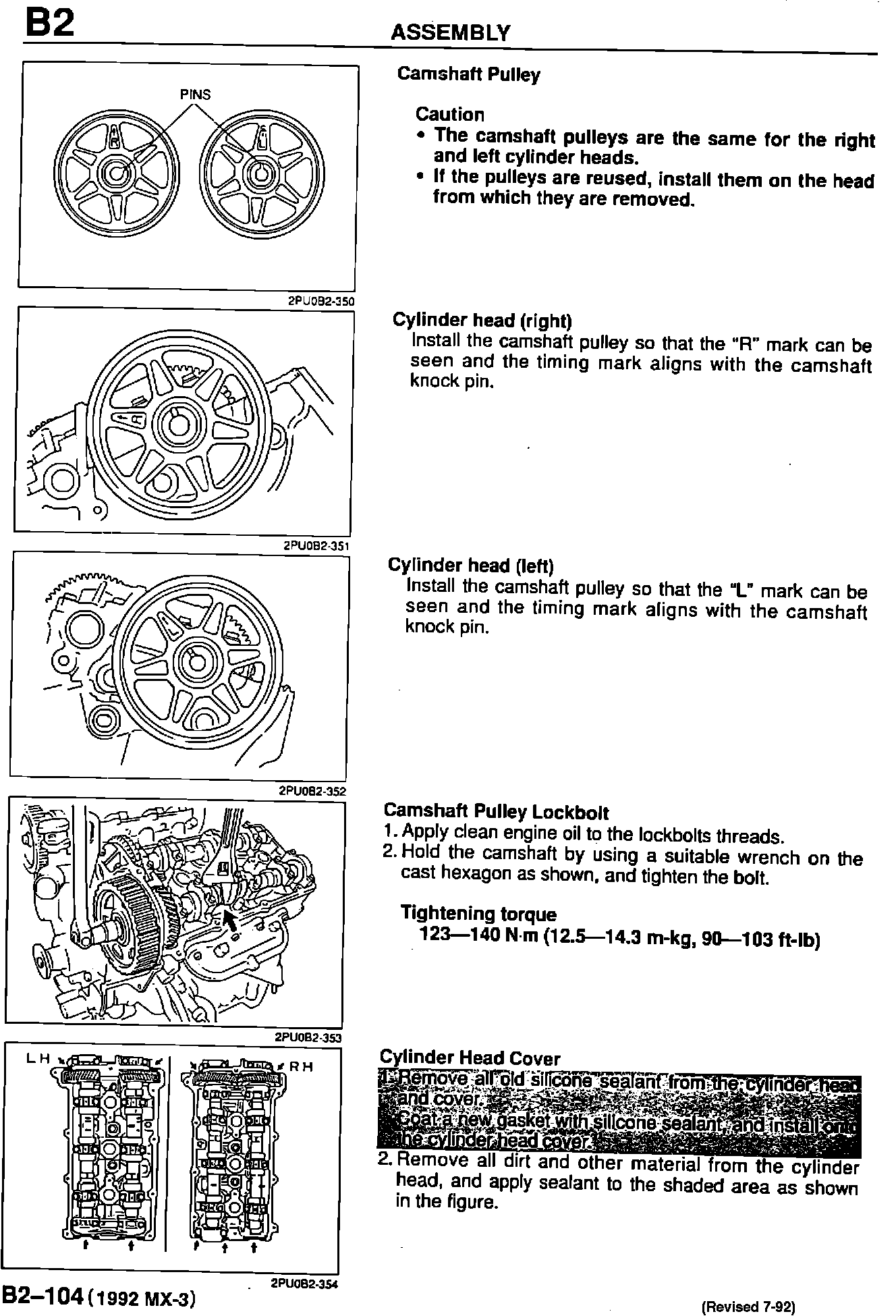

B2-104 - Preparation recommendations added.

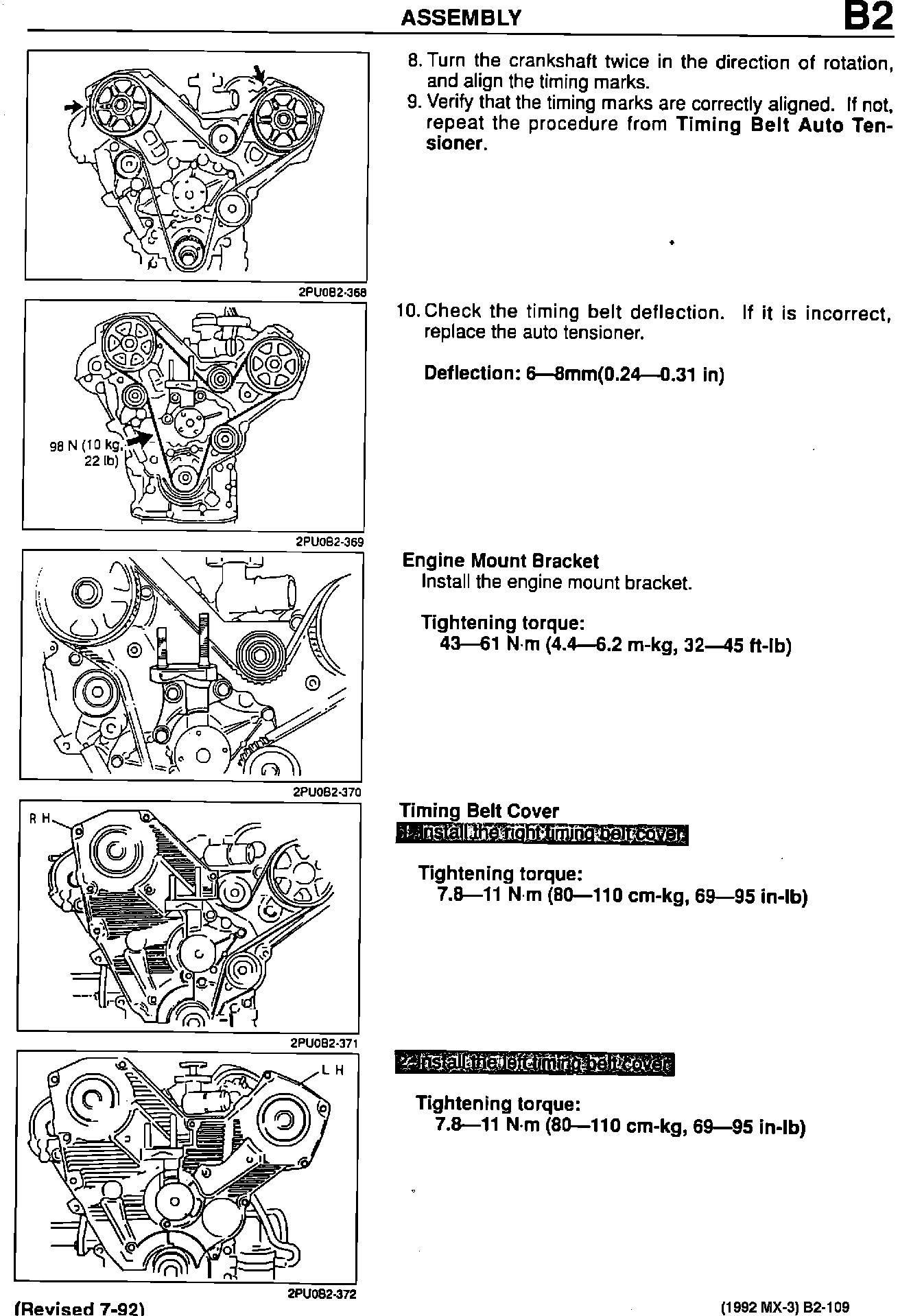

B2-109 - Installation instruction added.

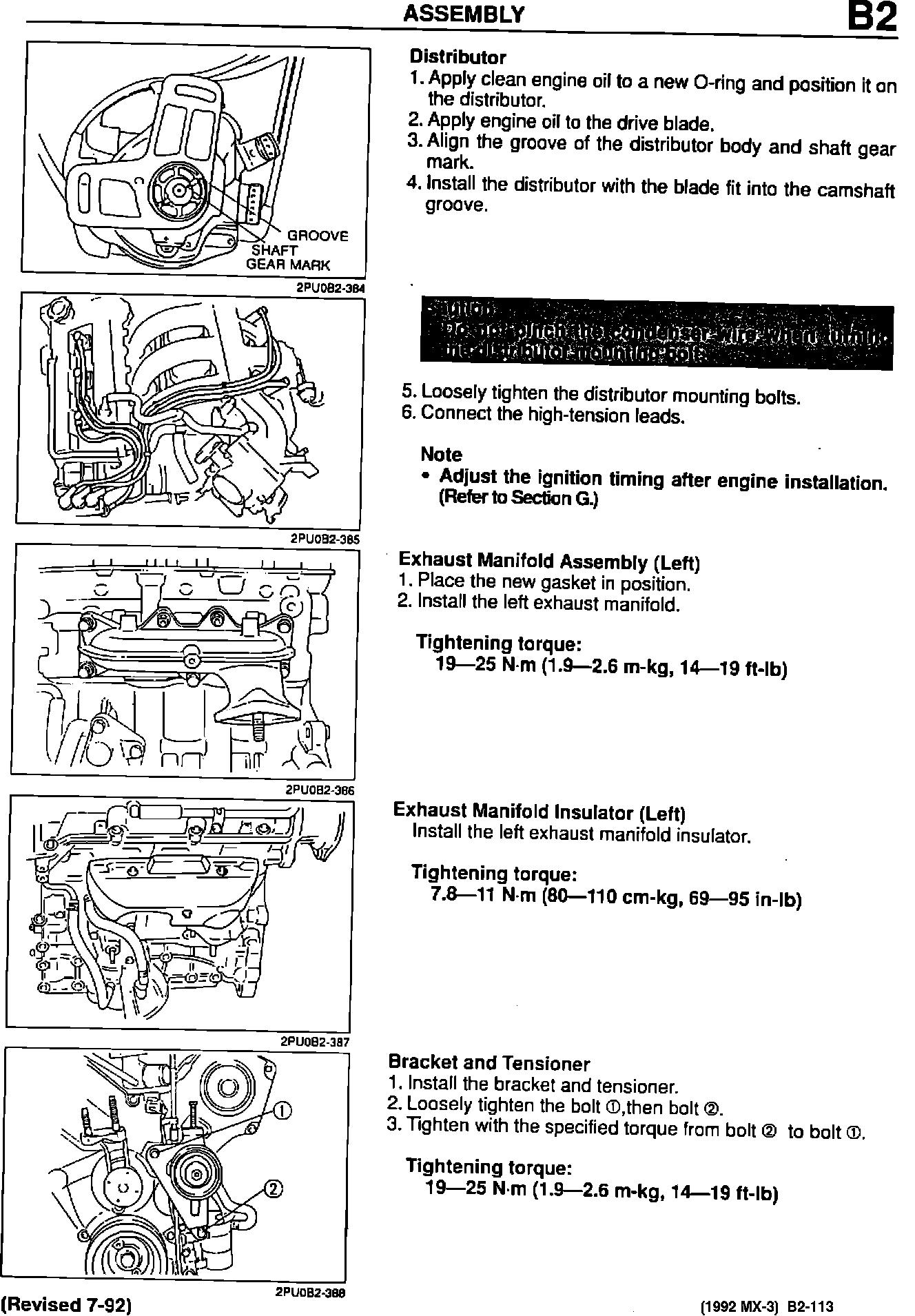

B2-113 - Caution regarding distributor installation.

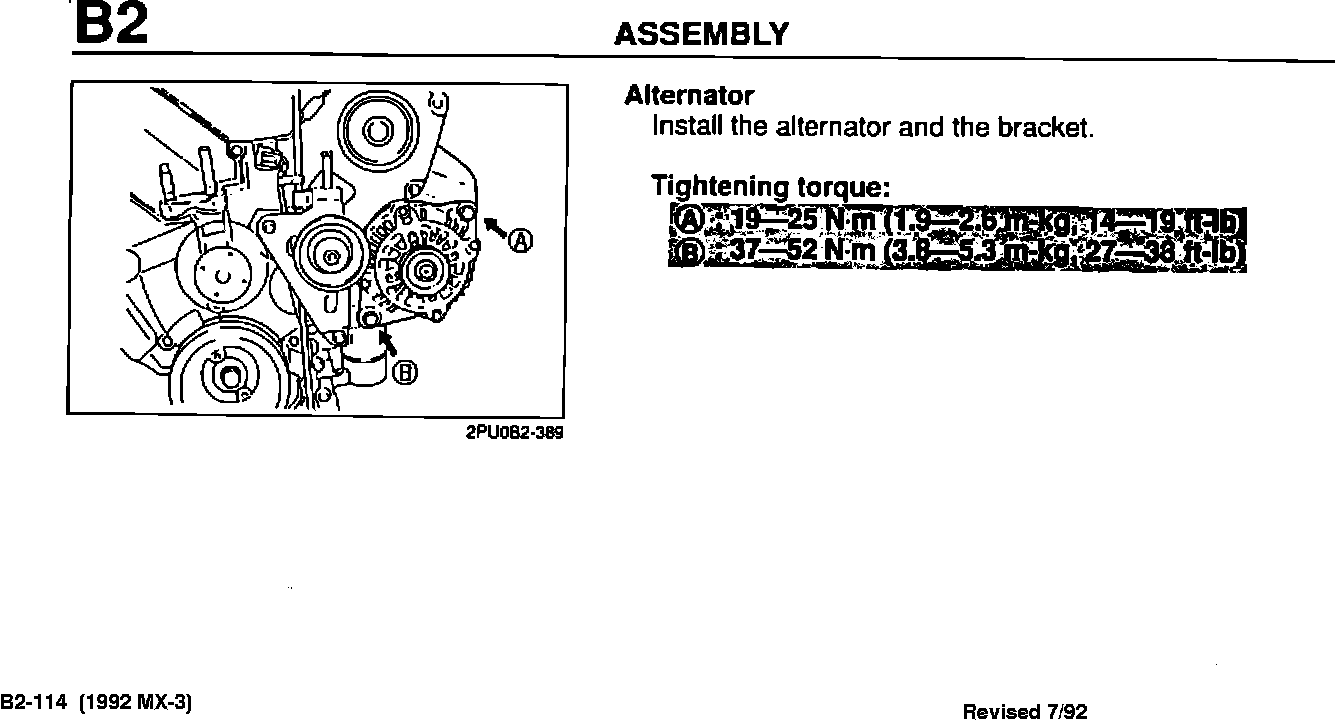

B2-114 - Tightening torque added.

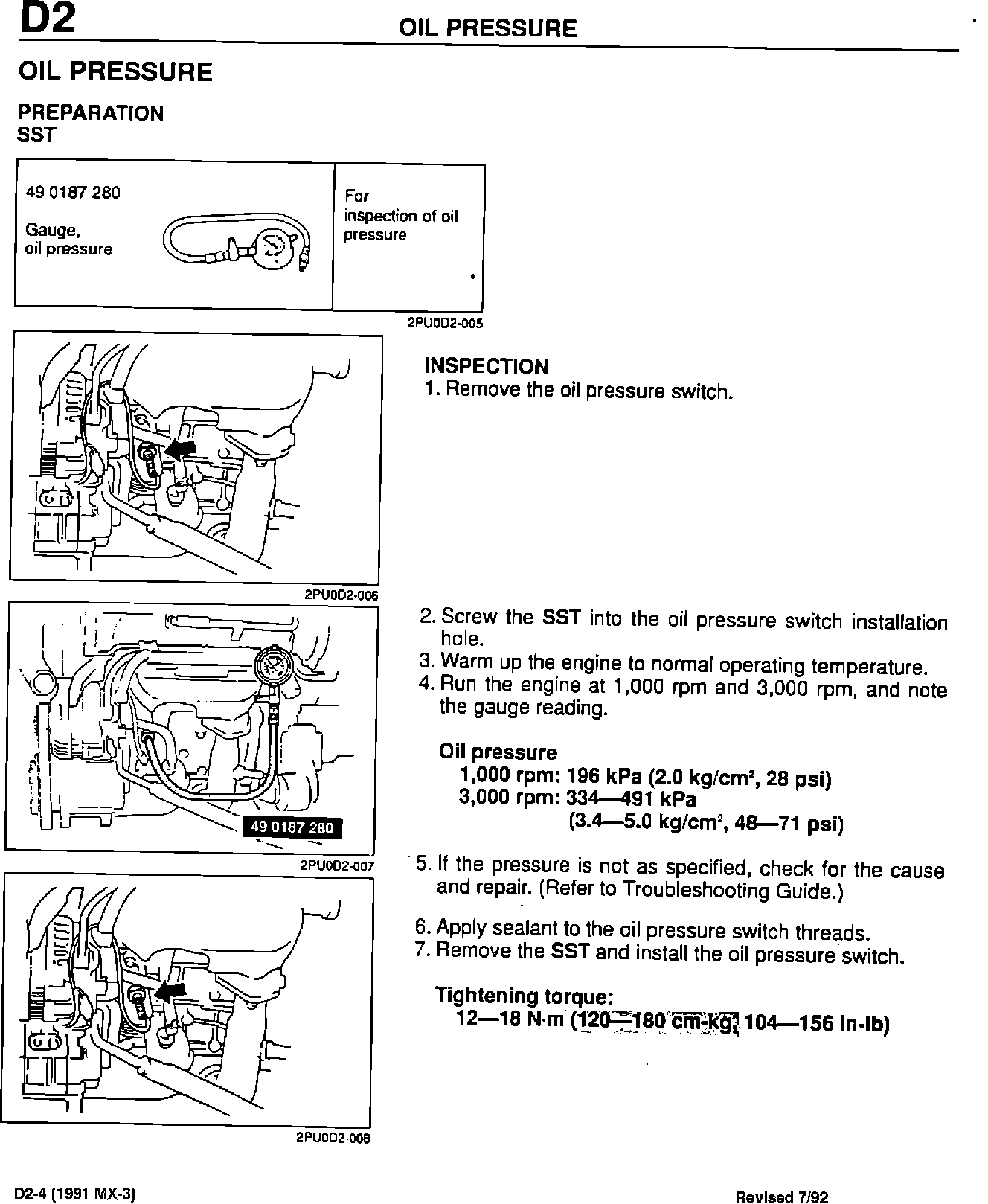

D2-4 - Tightening torque added.

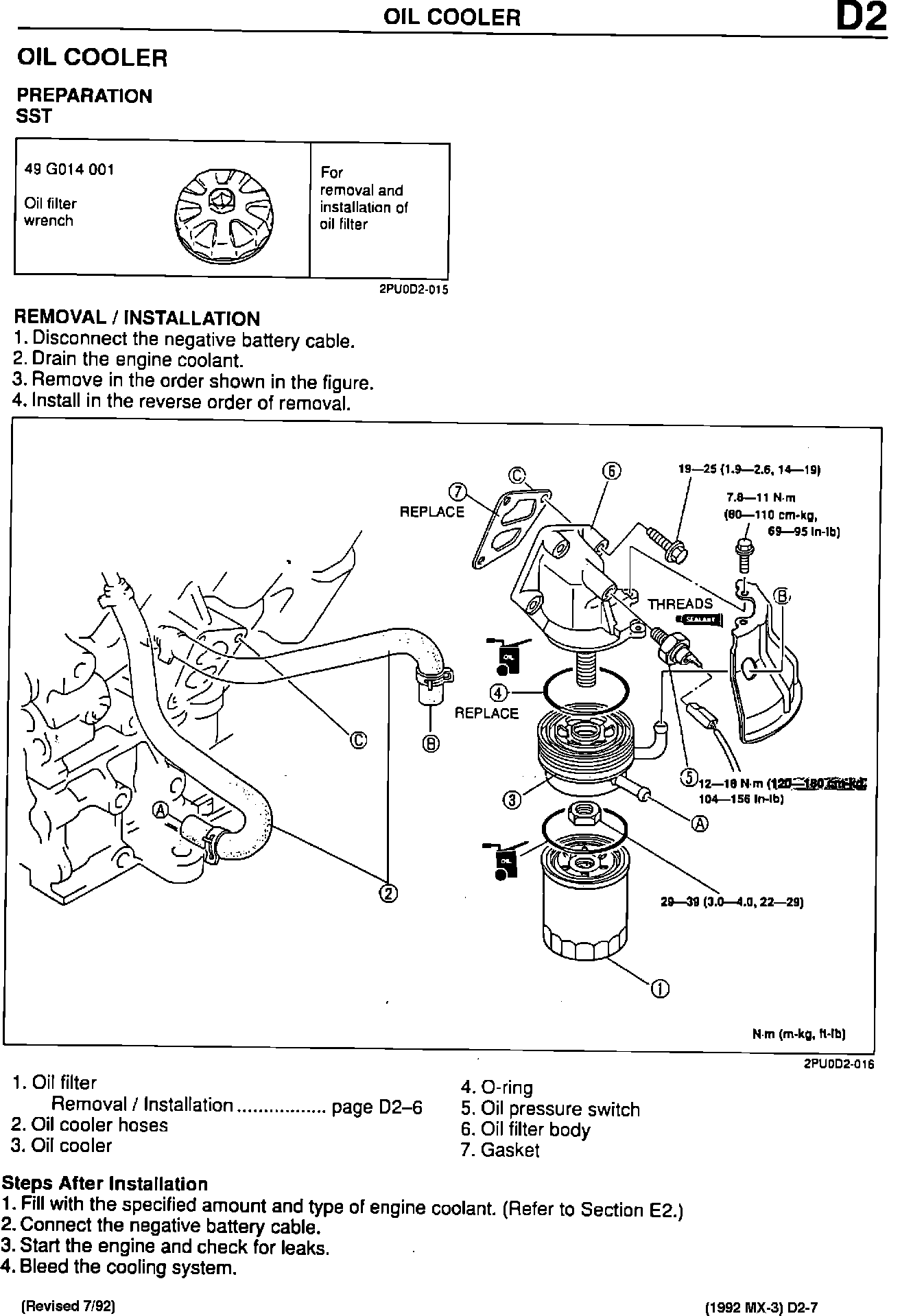

D2-7 - Tightening torque added.

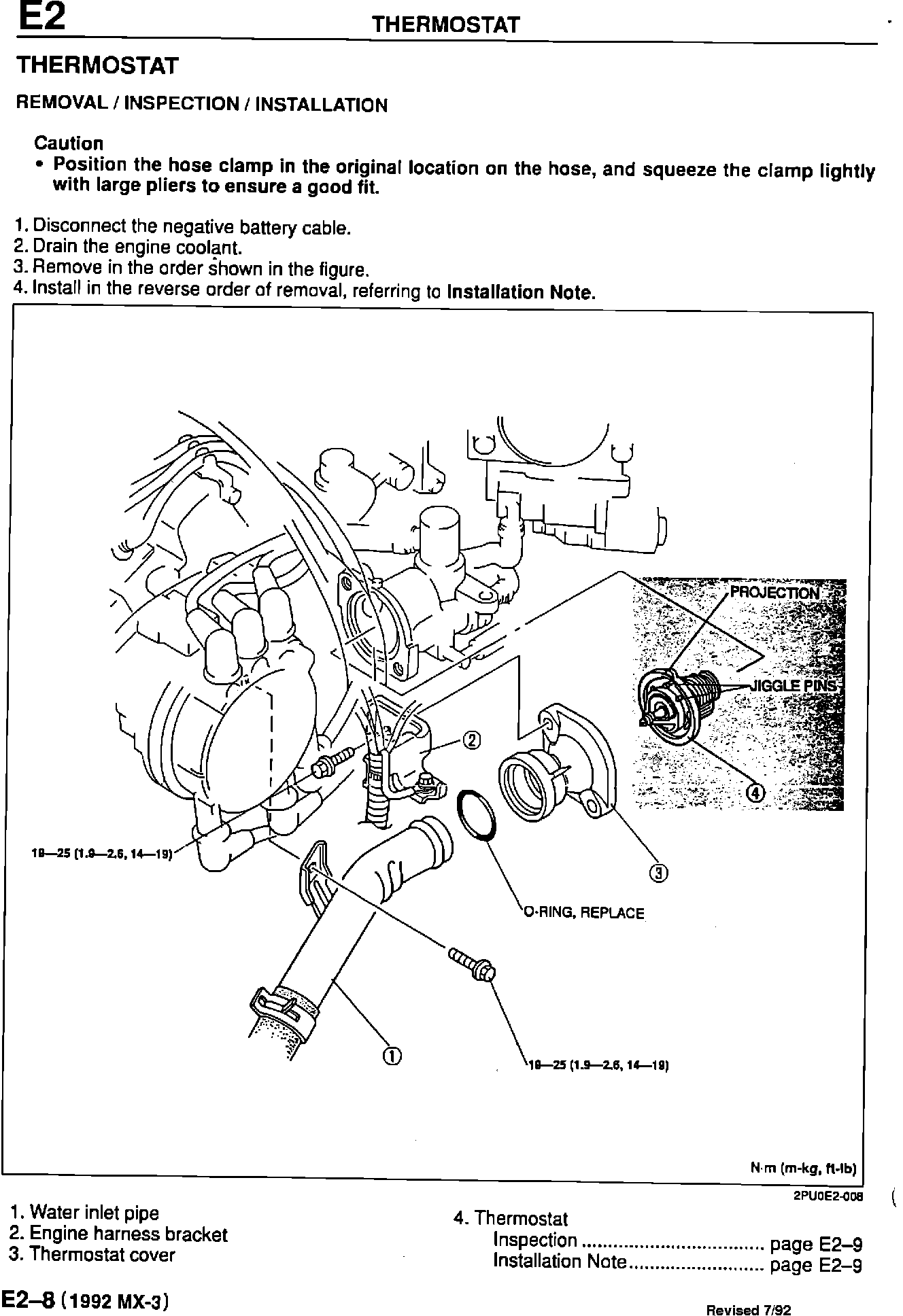

E2-8 - Illustration correction.

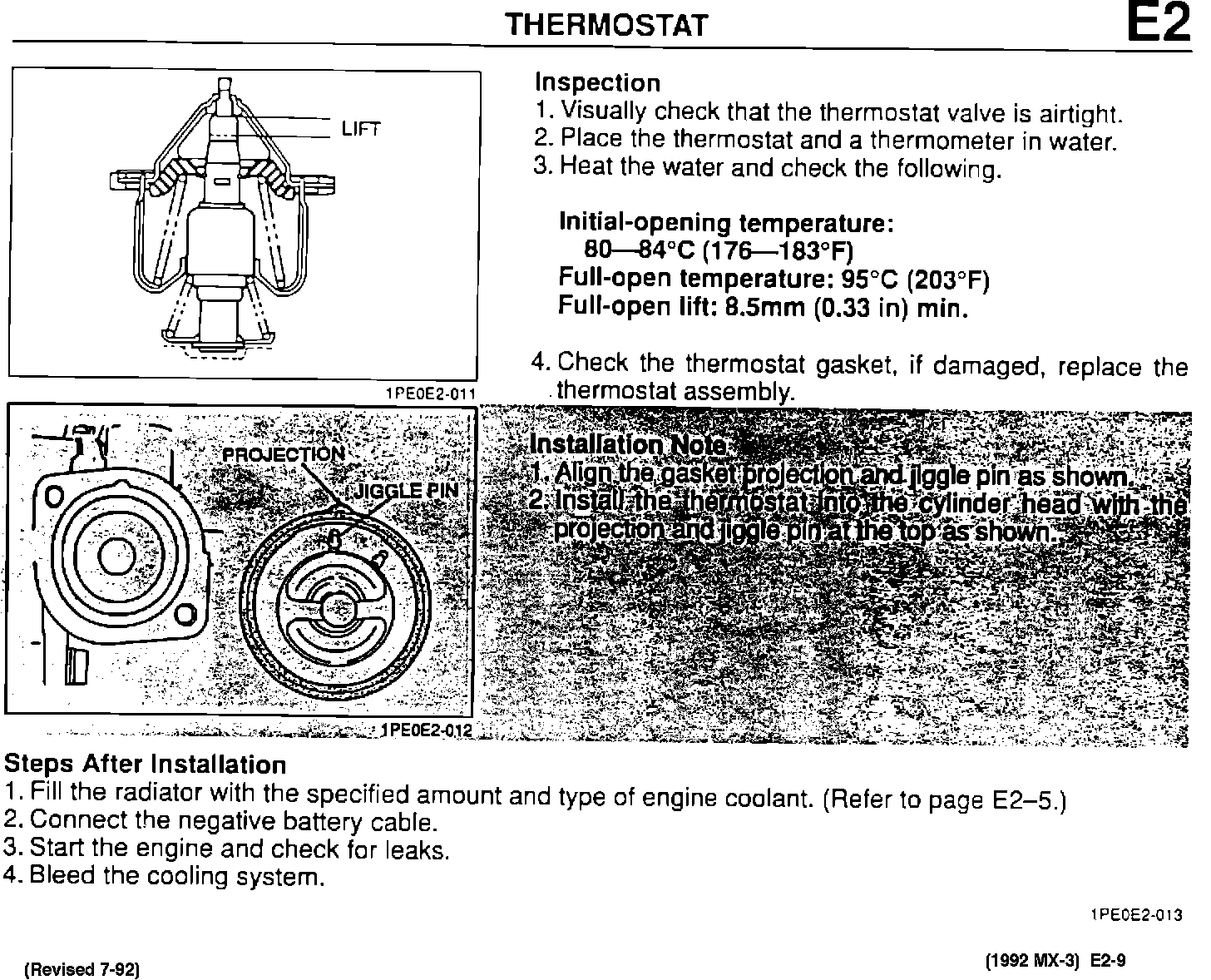

E2-9 - Illustration correction.
