Component Locations

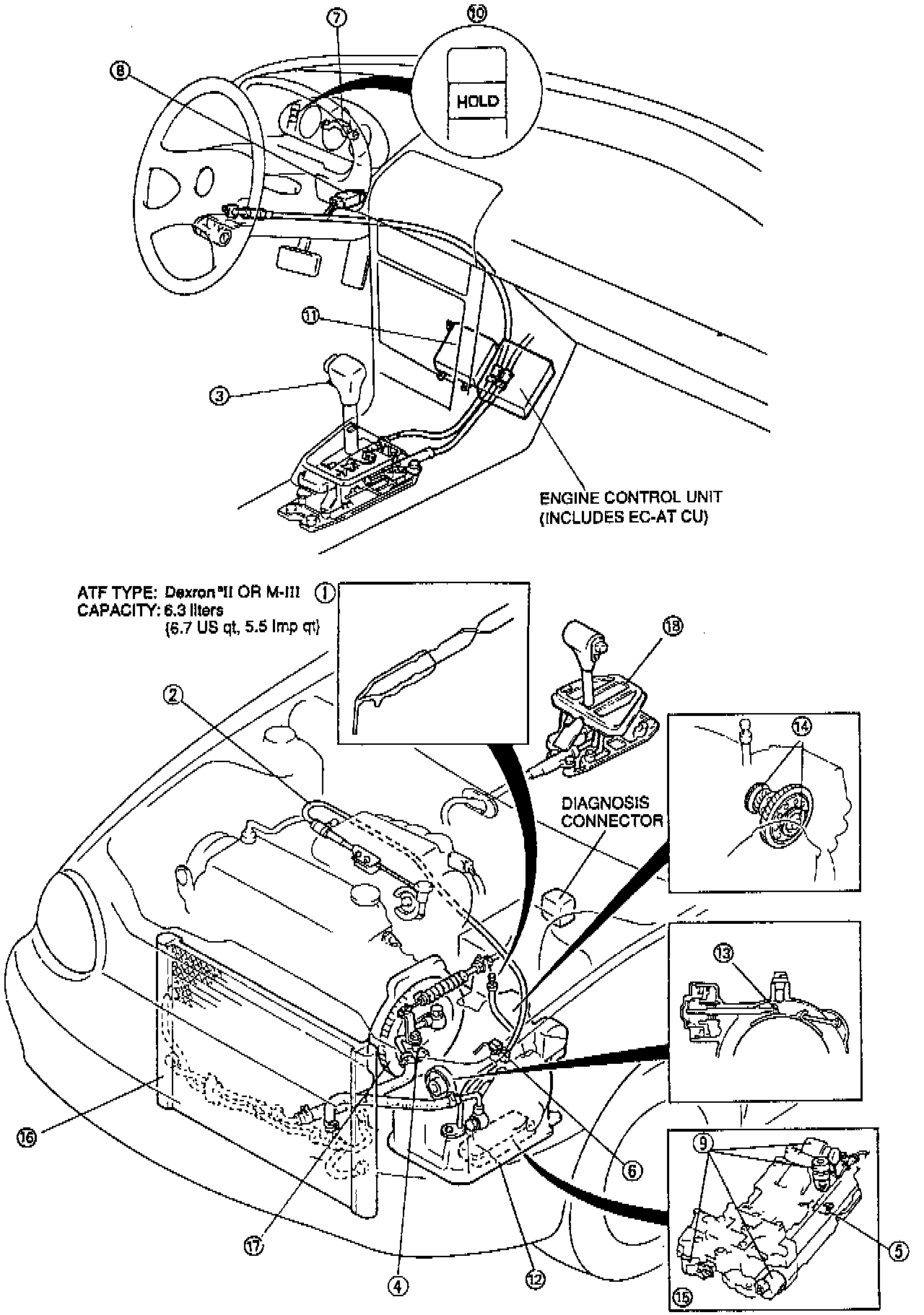

Electronic Transmission Component Locations:

1. Automatic transmission fluid (ATF)
2. Throttle cable
3. Hold switch
4. Inhibitor switch
5. ATF thermosensor
6. Pulse generator
7. Speed sensor
8. Stoplight switch
9. Solenoid valves
10. Hold indicator
11. EC-AT control unit (Calif. only)
12. Transaxle
13. 2-4 brake band
14. Oil seal
15. Control valve body
16. Oil cooler
17. Drive plate
18. Selector lever
