Front Cross-Member: Service and Repair

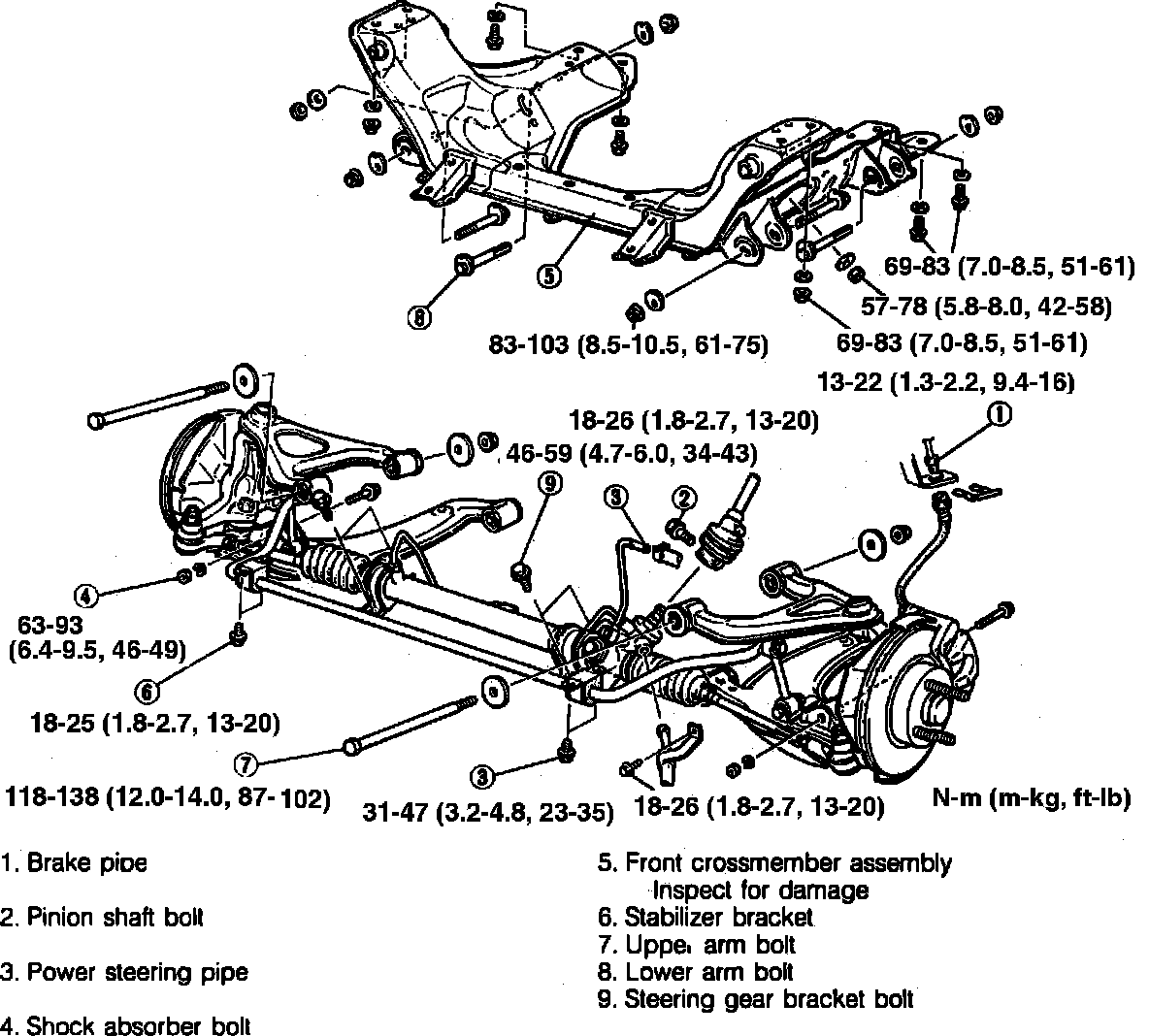

Fig. 10 Crossmember & Related Components:

1. Raise and support vehicle.
2. Remove wheel and tire.
3. Remove differential and power plant frame.
4. Remove components in numerical sequence shown, Fig. 10.
5. Reverse procedure to install, noting the following:
a. Lower crossmember and other suspension parts as an assembly, then separate parts.
b. Upon installation, loosely tighten stabilizer bracket, upper arm and lower arm bolts.
c. Bleed air from brake and power steering systems.
d. Lower vehicle, then tighten to specification.
