Blower Motor: Service and Repair

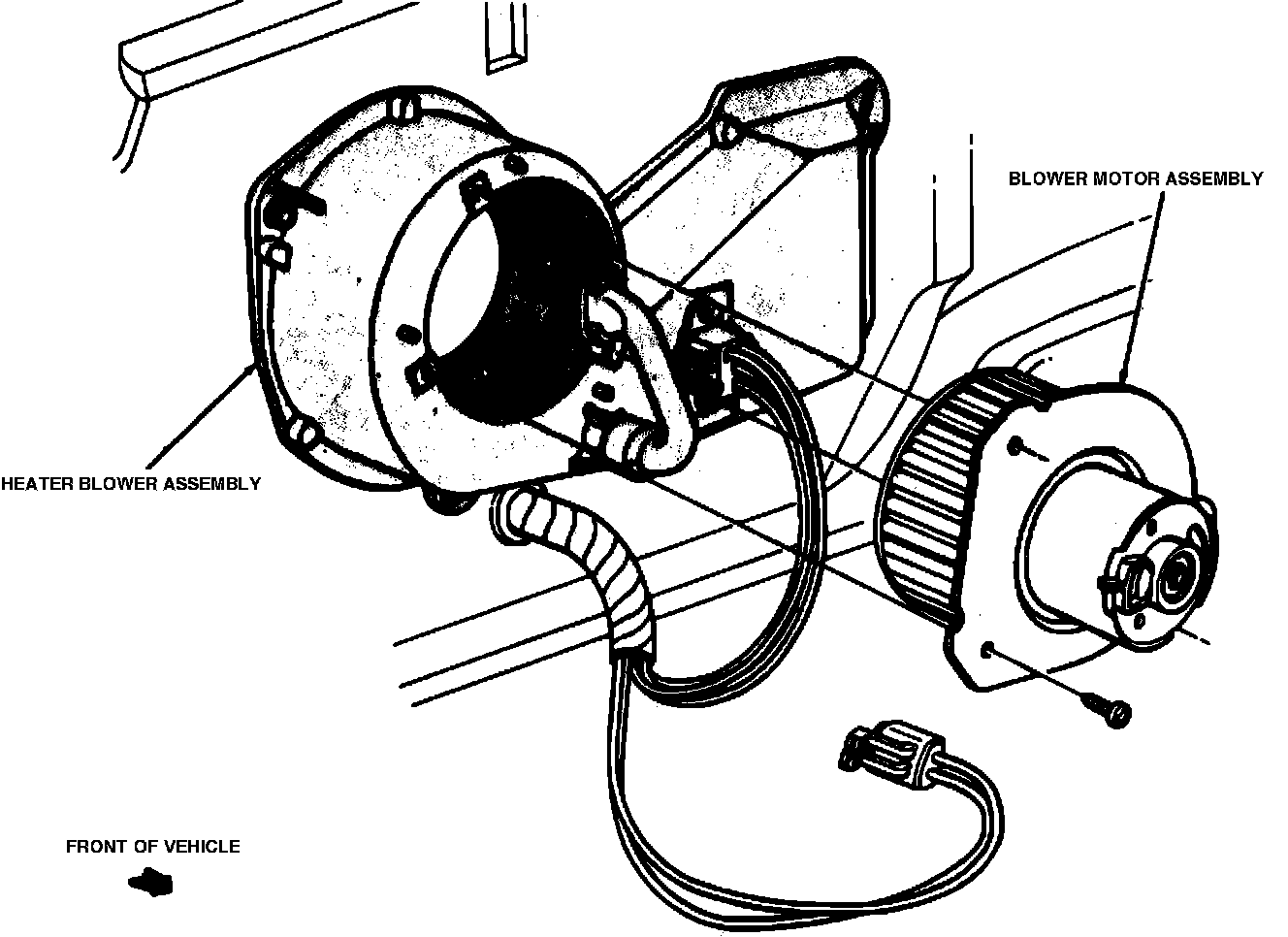

Fig. 9 Blower Motor Replacement:

1. Disconnect battery ground cable.
2. If applicable, remove emission control module forward of blower motor.
3. Remove air cleaner and solenoid box cover in front of blower motor, if so equipped.
4. Remove vacuum reservoir and washer in front of blower motor, if so equipped.
5. Disconnect electrical connector from blower motor.
6. Disconnect blower motor cooling tube at blower motor.
7. Remove blower motor attaching screws, then the blower motor from the heater blower assembly, Fig. 9.
8. Reverse procedure to install.
