Air Flow Meter/Sensor: Testing and Inspection
Air Flow Sensor Inspection:
1.
Check sensor body for cracks and damage.
2.

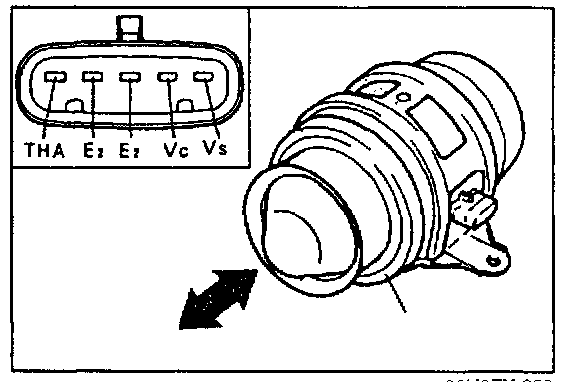

Verify that measuring cone move in and out smoothly.

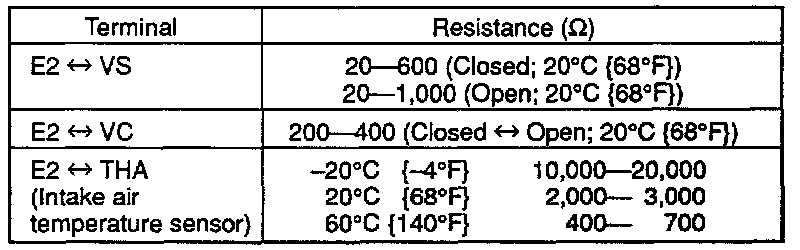

Air Flow Sensor Specification Chart:
3.
Measure resistance across terminals as described on image chart.
4.
Inspect grommet and replace if needed.
5.
Sensor is not repairable; replace if any problems are detected.
