Crankshaft Position Sensor 2

Crankshaft Position Sensor 2 Testing:

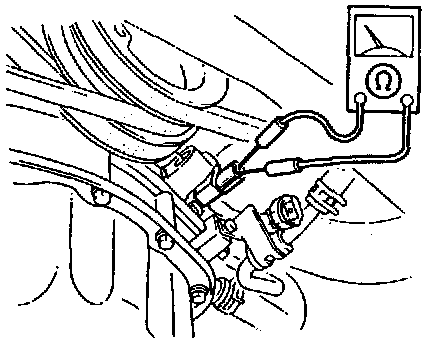

1. Unplug sensor connector and measure resistance across terminals. It should be 0.95 - 1.25K ohms @ 68°F (20°C).
2. If not as specified, replace sensor.
