Vehicle Speed Sensor 2 (Speedometer Sensor)





Replacement
1. Disconnect the negative battery cable.
2. Remove the front exhaust pipe. (Left side).

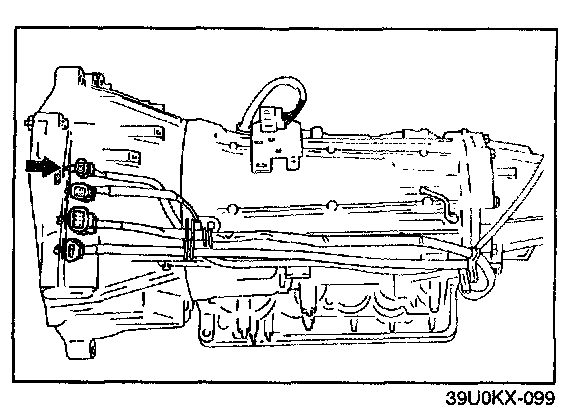

3. Disconnect the vehicle speed sensor 2 connector.
4. Remove the vehicle speed sensor 2 from the extension housing.
5. Apply ATF to a new O-ring and Install it on the vehicle speed sensor 2.
6. Install the new vehicle speed sensor 2.

Tightening torque: 5.0 - 6.8 N.m (50 - 70 kgf.cm, 44 - 60 in.lbf)

7. Connect the vehicle speed sensor 2 connector.
8. Install the front exhaust pipe.
9. Connect the negative battery cable.
