Shutter Valve

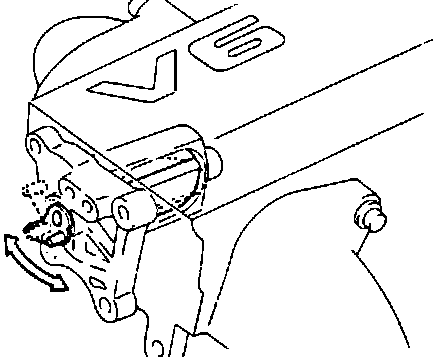

Shutter Valve Inspection:






1. Remove shutter valve actuator.
2. Check that shutter valve rod moves smoothly.
3. If movement is not free, clean or replace shutter valve as required.
