Front Wheel Speed Sensor Rotor

1. With driveshaft removed, tap speed sensor rotor off of driveshaft with a suitable chisel. Do not reuse speed sensor once it is removed.
2. Remove boot band, then boot.
3. Reverse procedure to install noting the following:
a. Press new speed sensor rotor onto driveshaft using sensor rotor installer tool No. 49 G025 001, or equivalent.
b. Ensure sensor is installed facing in the direction as shown in Fig. 170.

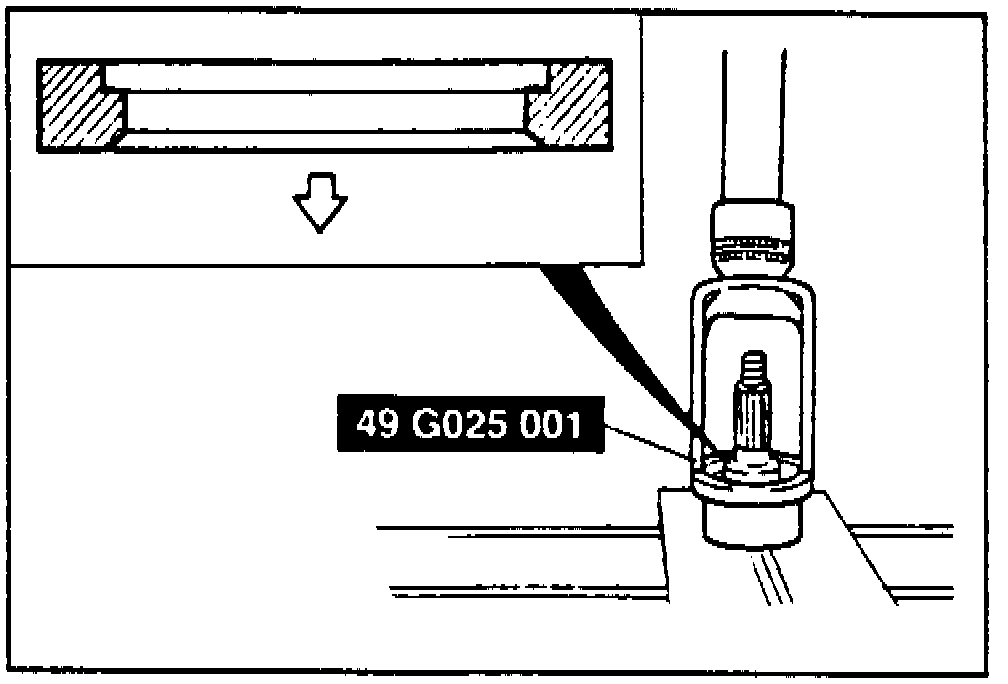

Fig. 170 Front Wheel Speed Sensor Rotor Installation:
