Rear Wheel Speed Sensor

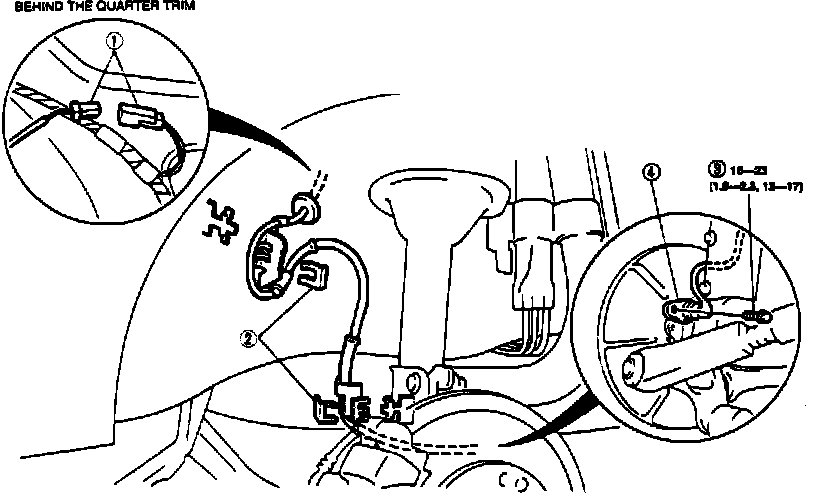

Fig. 87 Rear Wheel Speed Sensor Replacement:





1. Raise and support vehicle, then remove wheel and tire assembly.
2. Remove sensor in numbered sequence, Fig. 87.
3. Reverse procedure to install.
