Front

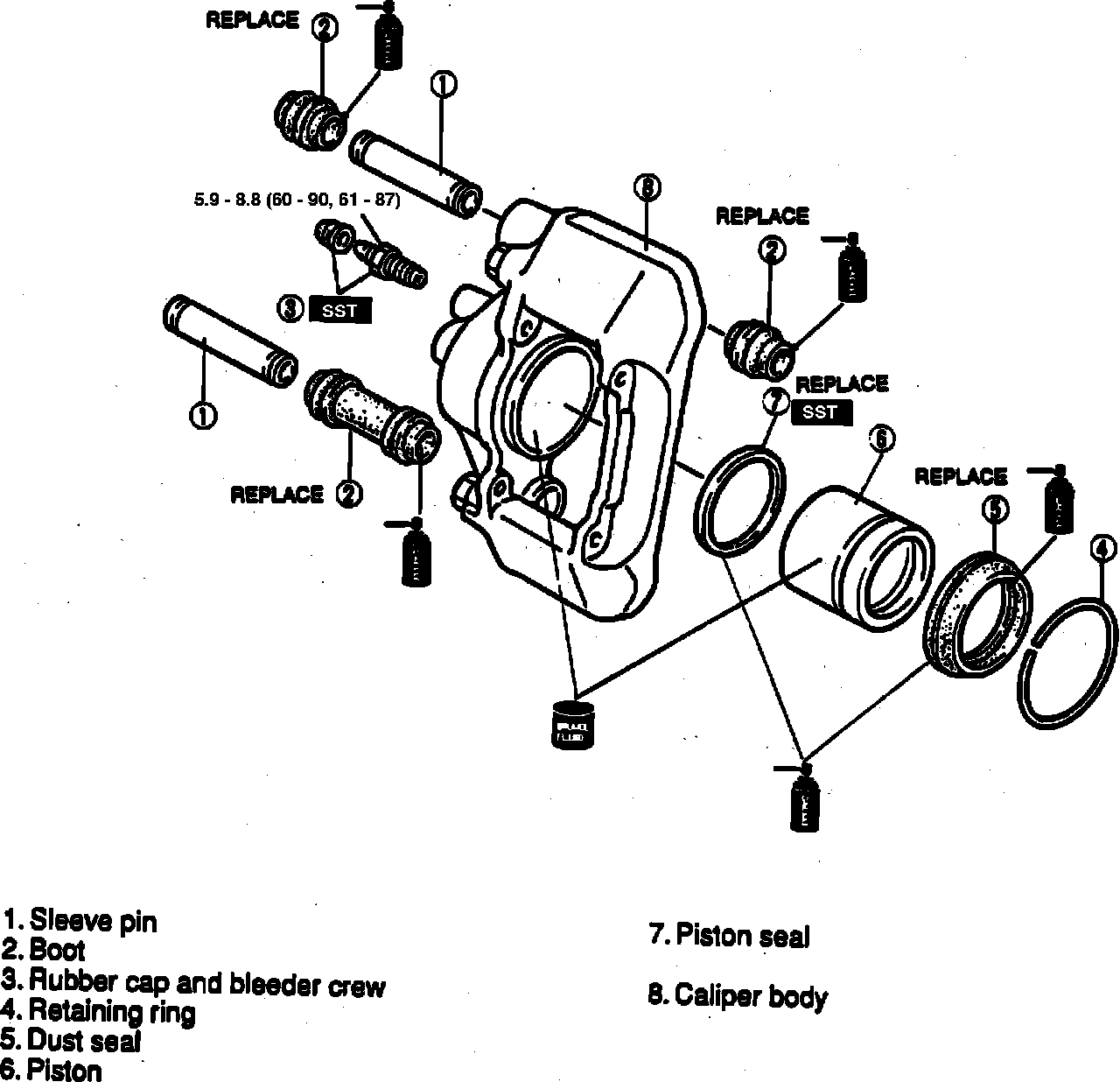

Fig. 6 Front Caliper Exploded View.:
1.
With caliper removed from vehicle, remove sleeve pin, then boot
Fig. 6. 2.
Remove bleeder screw and cap, retaining ring, then dust seal.
3.
Remove piston. Place a piece of wood in caliper and blow compressed air, a little at a time, through flexible hose connection hole to force pistons out of caliper.
4.
Remove piston seal, then caliper body.
5.
Reverse procedure to install.
