Front

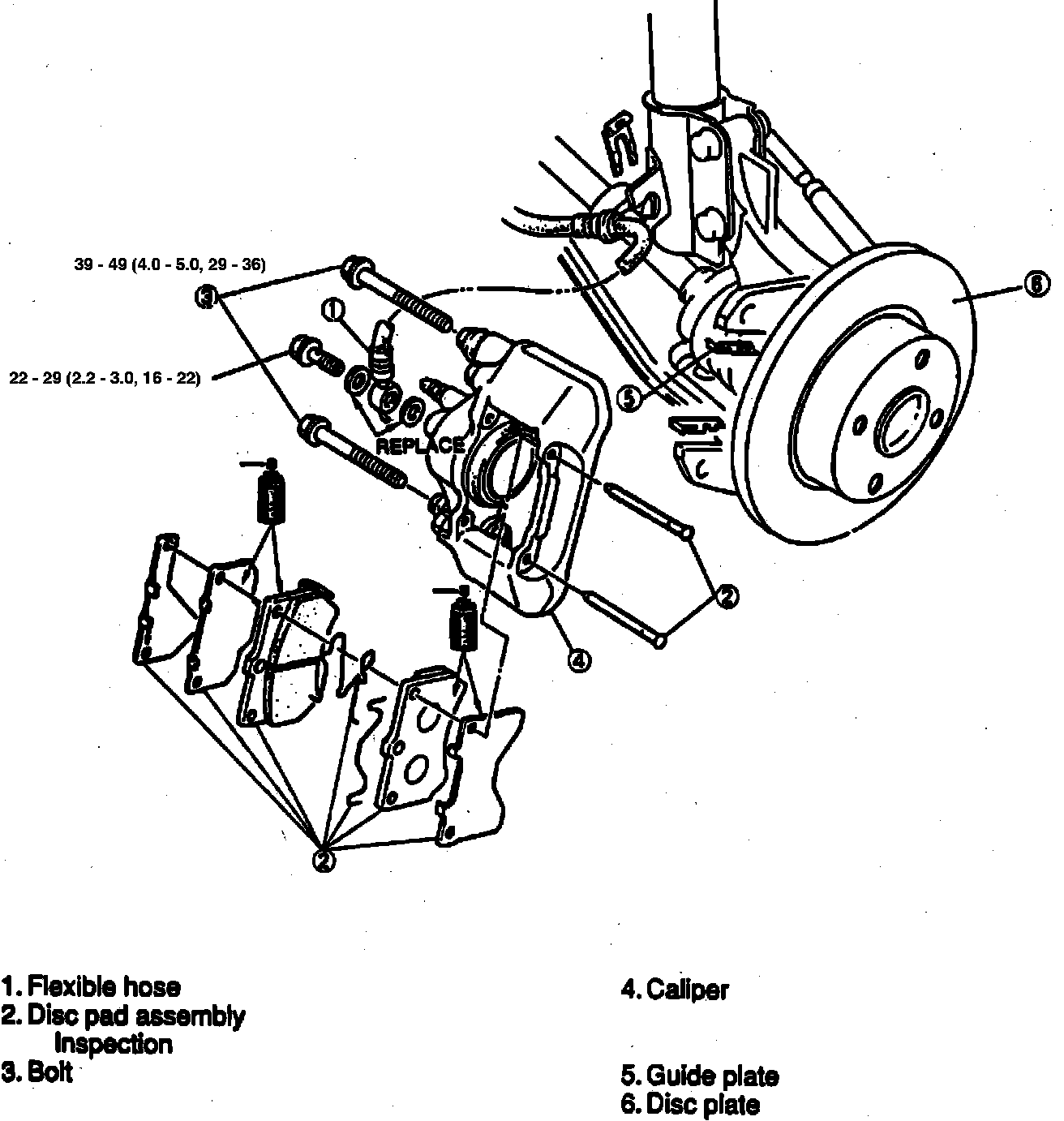

Fig. 5 Front Caliper Replacement:

1. Remove flexible hose, then disc pad assembly Fig. 5.
2. Remove caliper attaching bolts, then caliper assembly.
3. Remove guide plate, then disc plate.
4. Reverse procedure to install.
