Water Pump: Service and Repair
1.
Remove
timing belt as outlined under
Timing Belt, Replace.
2.
Remove water inlet and bypass pipes.

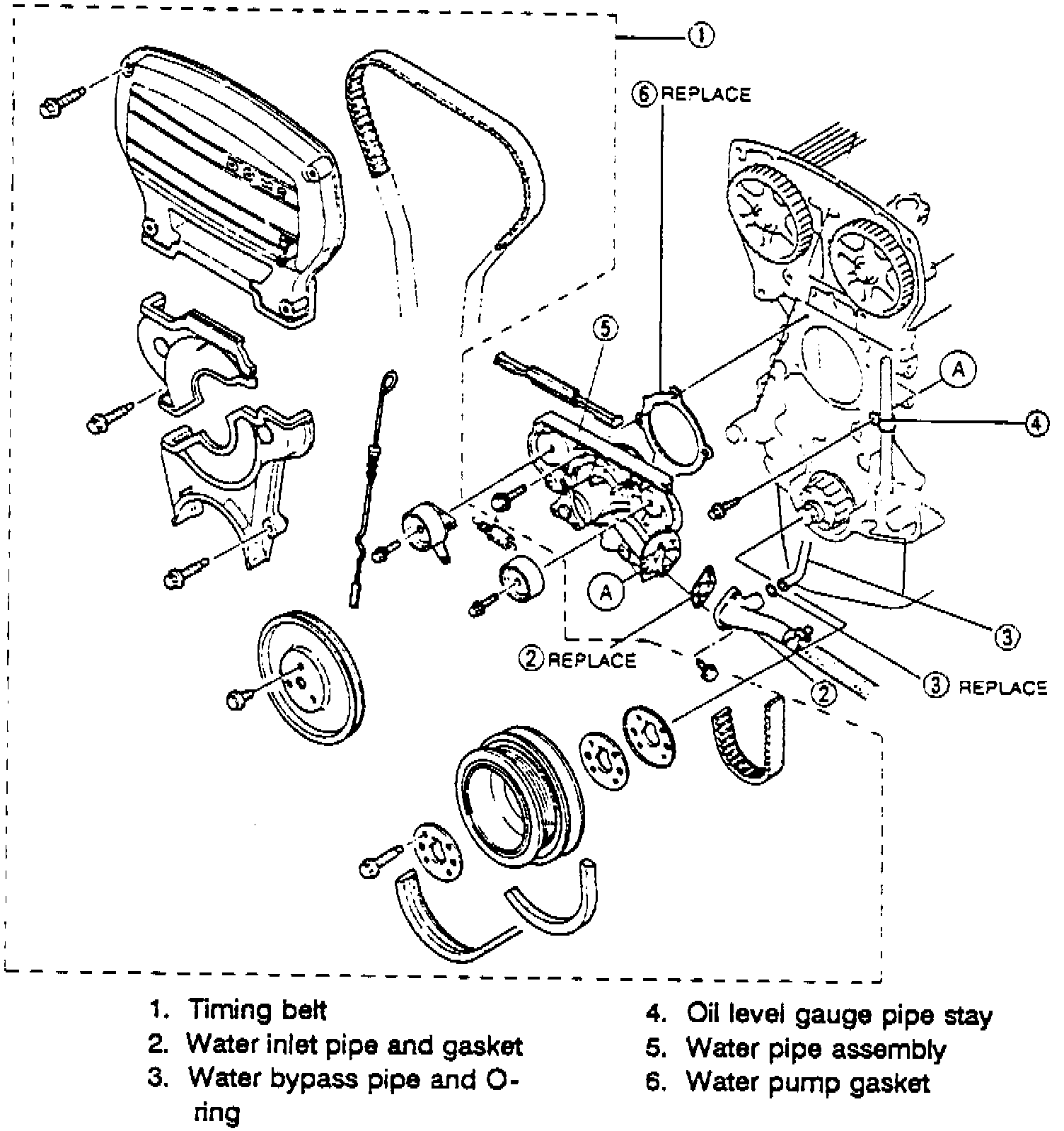

Fig. 84 Water Pump Replacement:

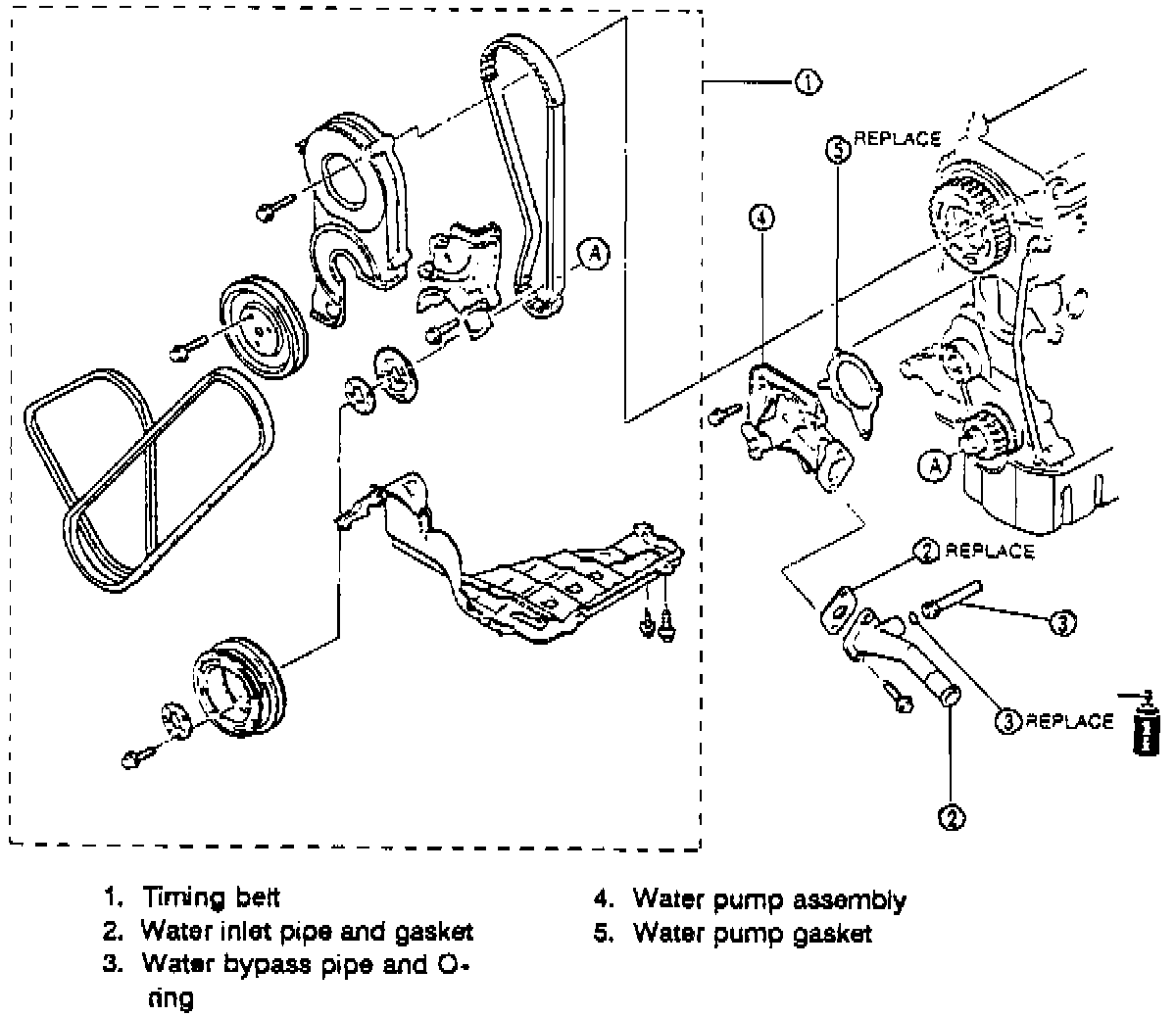

Fig. 85 Water Pump Replacement:
3.
Remove water pump mounting bolts, then water pump,
Figs. 84 and 85.
4.
Reverse procedure to install. Tighten mounting bolts to specifications.
