Blower Motor: Service and Repair

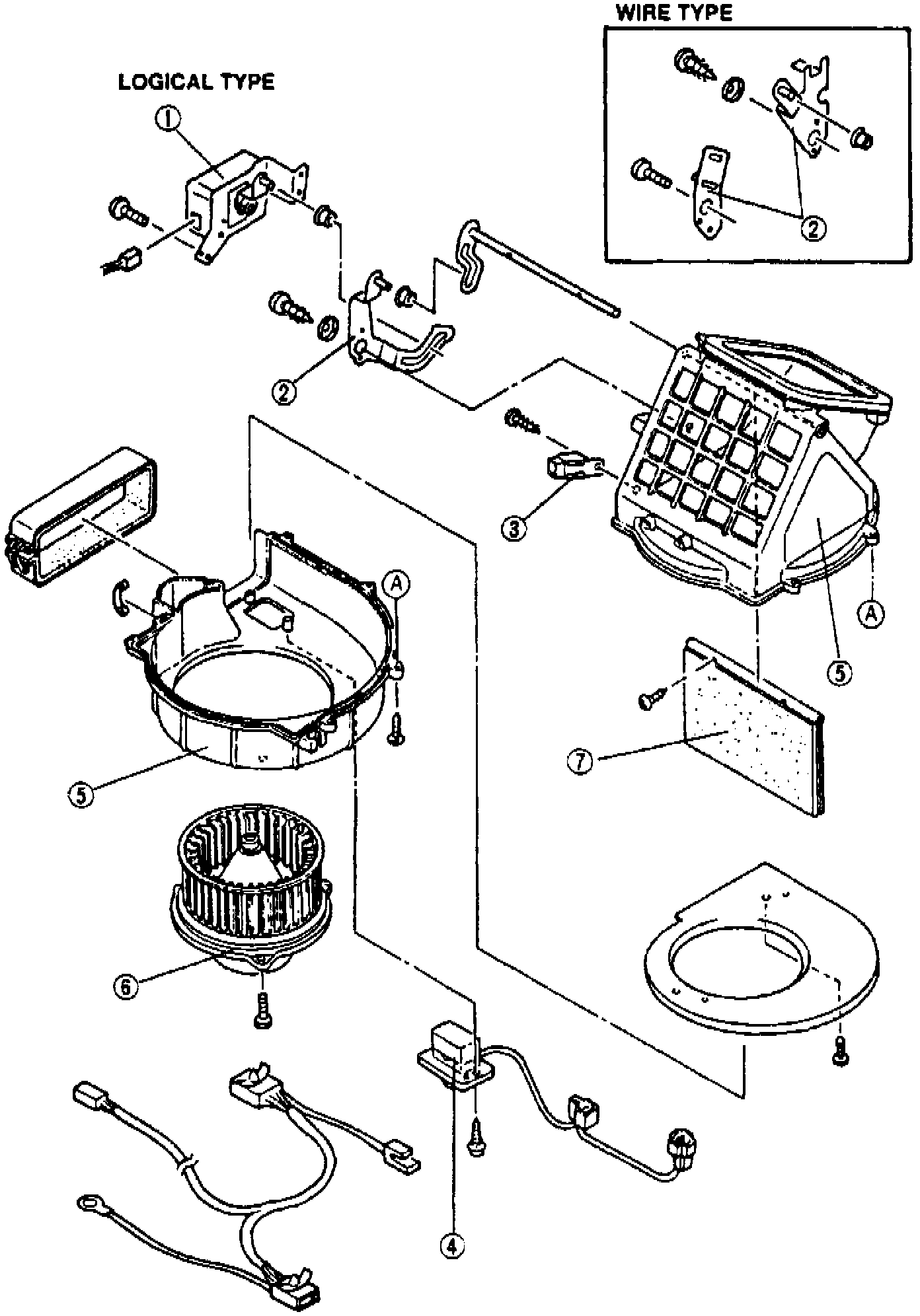

Fig. 4 Blower Motor Replacement:
1.
Remove glove compartment and air duct, then release clamp and remove seal plate and blower unit.
2.
Disassemble blower unit and remove
blower motor in numbered sequence shown,
Fig. 4.
3.
Reverse procedure to install.
