Output Gear

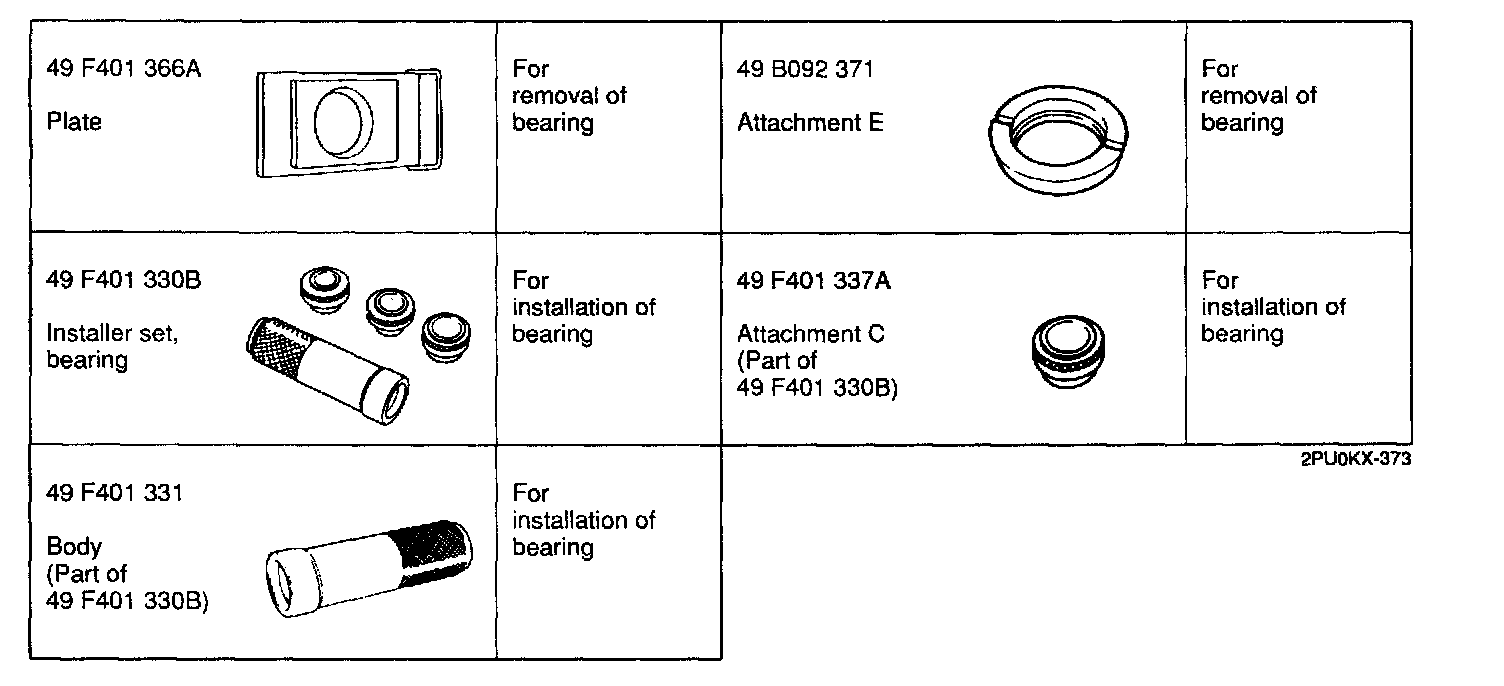

SST:




Preparation




Disassembly/Inspection/Assembly

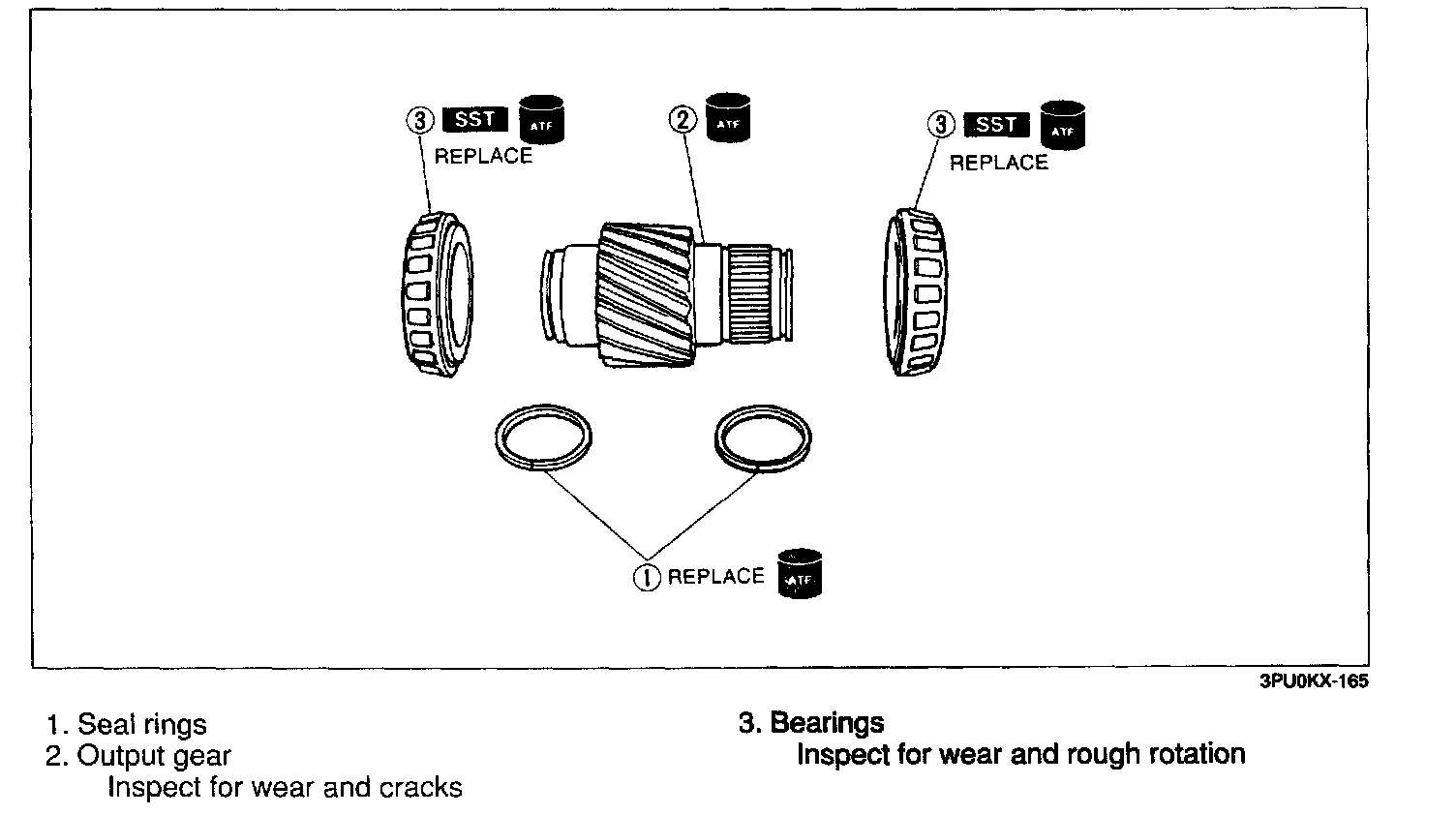

1. Disassemble in the order shown in the figure, referring to Disassembly Note.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly, referring to Assembly Procedure.

Disassembly note

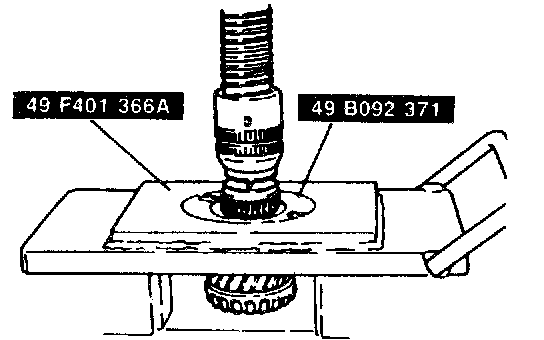

Bearings
Remove the bearings from the output gear by using the SST.

Assembly procedure

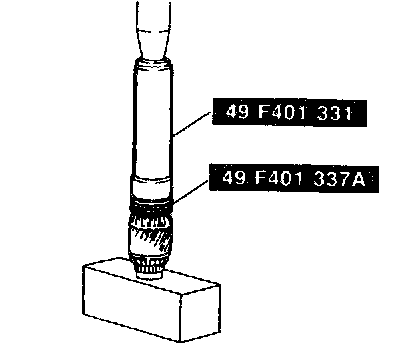

Bearings
Press the new bearings onto the output gear by using the SST.

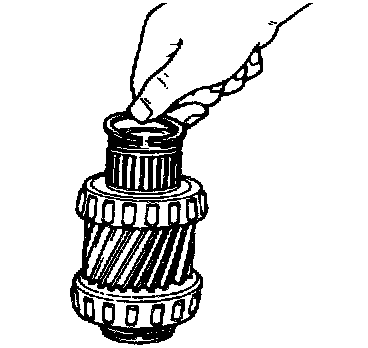

Seal rings

NOTE:
- Seal ring inner diameter: 27.6 mm (1.087 in)
- Do not damage the seal ring when installing it.

Apply ATF to new seal rings and install them to each side of the output gear.
