Shift-Lock Actuator


Replace




1. Disconnect the negative battery cable.
2. Remove the rear ashtray, rear console, and front console.

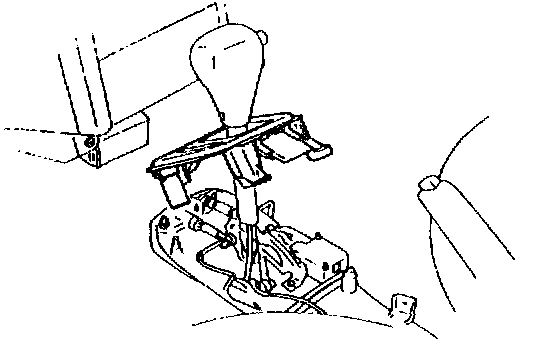

3. Remove the indicator screws and lift up the indicator panel.

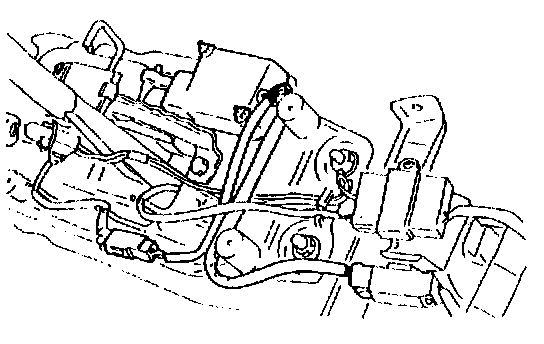

4. Disconnect the shift-lock actuator connector.
5. Disconnect the P range switch connector.
6. Remove the shift-lock actuator connector.




7. Install the new shift-lock actuator and connect the shift- lock actuator connector.
8. Connect the P range switch connector.
9. Adjust the indicator panel and install the screws.
10. Install the front console, rear console, and rear ashtray.
11. Connect the negative battery cable.
12. Check for correct operation of the shift-lock system.
