Shift Interlock Solenoid: Service and Repair
InspectionTerminal voltage continuity
1. Remove the rear ashtray, rear console, and front console.

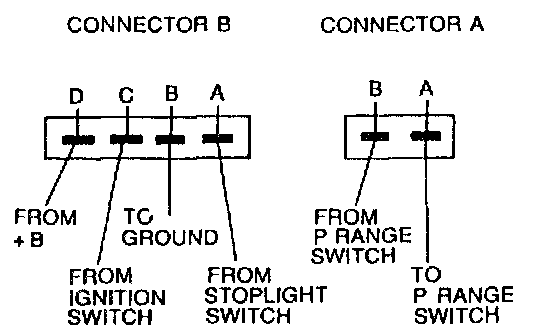

CAUTION: Disconnect connector B when checking continuity between terminal b (harness side) and a ground.

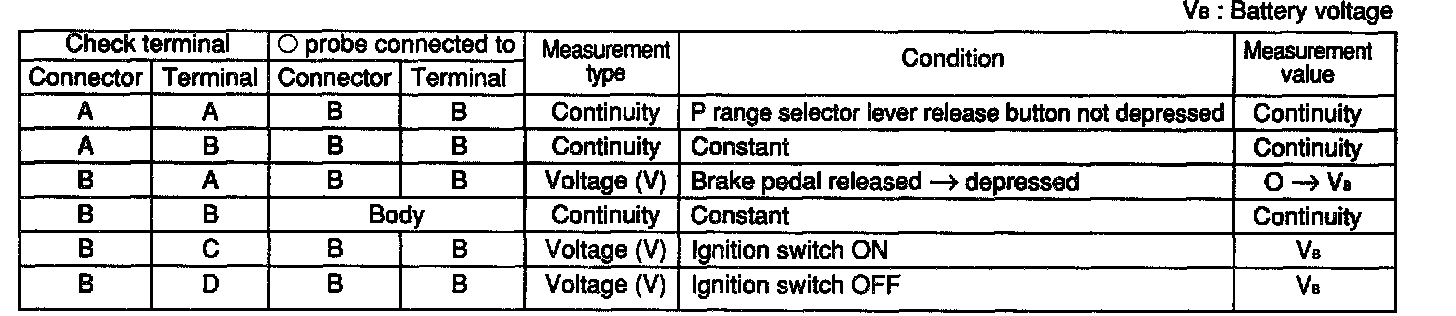

2. Turn the ignition switch ON, and check terminal voltages and continuity, referring to the chart.
3. If not as specified, repair the wire harness and/or replace the shift-lock actuator.
4. Install the front console, rear console, and rear ashtray.
5. Verify correct operation of the shift-lock system.
Replace
1. Disconnect the negative battery cable.
2. Remove the rear ashtray, rear console, and front console.

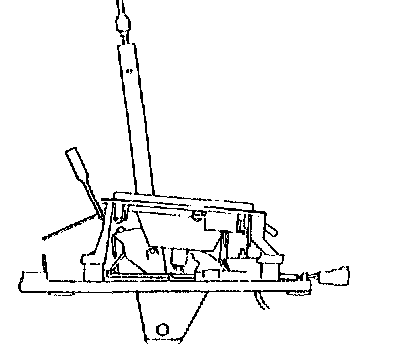

3. Remove the indicator screws and lift up the indicator panel.
4. Disconnect the shift-lock actuator connector.
5. Disconnect the P range switch connector.
6. Remove the shift-lock actuator connector.
7. Install the new shift-lock actuator and connect the shift- lock actuator connector.
8. Connect the P range switch connector.
9. Adjust the indicator panel and install the screws.
10. Install the front console, rear console, and rear ashtray.
11. Connect the negative battery cable.
12. Check for correct operation of the shift-lock system.
