P Range Switch

Inspection

Continuity




1. Disconnect the negative battery cable.

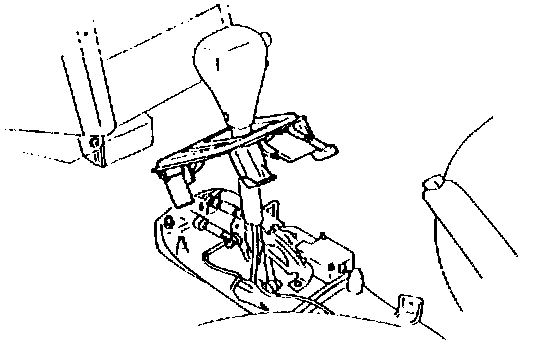

2. Remove the rear ashtray, rear console, and front console.
3. Remove the indicator screws and lift up the indicator panel.

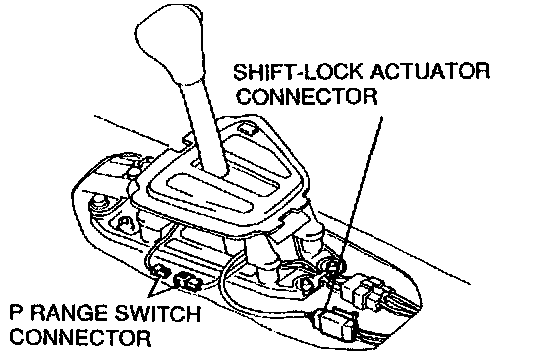

4. Disconnect the P range switch connector.

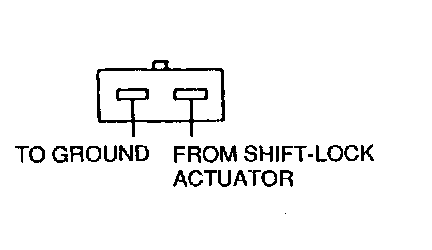

5. Check for continuity between the terminals.
6. If not as specified, replace the P range switch.




7. Connect the P range switch connector.

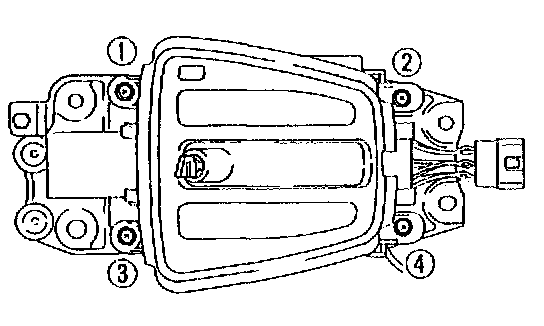

8. Adjust the indicator panel. Install the screws in the order shown in the figure.
9. Install the front console, rear console, and rear ashtray.
10. Connect the negative battery cable.
11. Check for correct operation of the shift-lock system.

Replace




1. Disconnect the negative battery cable.
2. Remove the rear ashtray, rear console, and front console.
3. Remove the indicator screws and lift up the indicator panel.
4. Disconnect the P range switch connector.

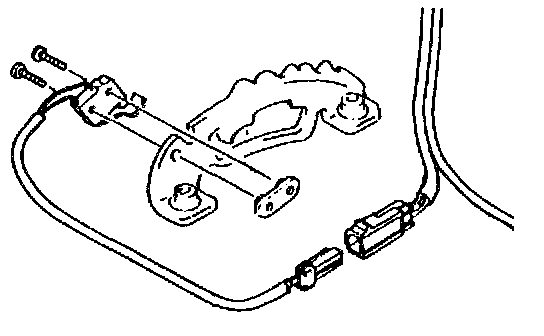

5. Remove the P range switch.




6. Install the new P range switch.
7. Connect the P range switch connector.
8. Adjust the indicator panel and install the screws.
9. Install the front console, rear console, and rear ashtray.
10. Connect the negative battery cable.
11. Check for correct operation of the shift-lock system.
