Using This Section

Introduction
Most of the automatic transaxle control system is electrically controlled, often making it difficult to diagnose problems in the system: especially intermittent problems. Before undertaking actual checks, take a few minutes to talk with a customer who approaches with a driveability complaint. The customer is often a good source of information on such problems; especially intermittent ones. Through talks with the customer, one can find out what the symptoms are and under what conditions they occur.

Work Flow:

Work Flow

Diagnostic Index:

Diagnostic Index

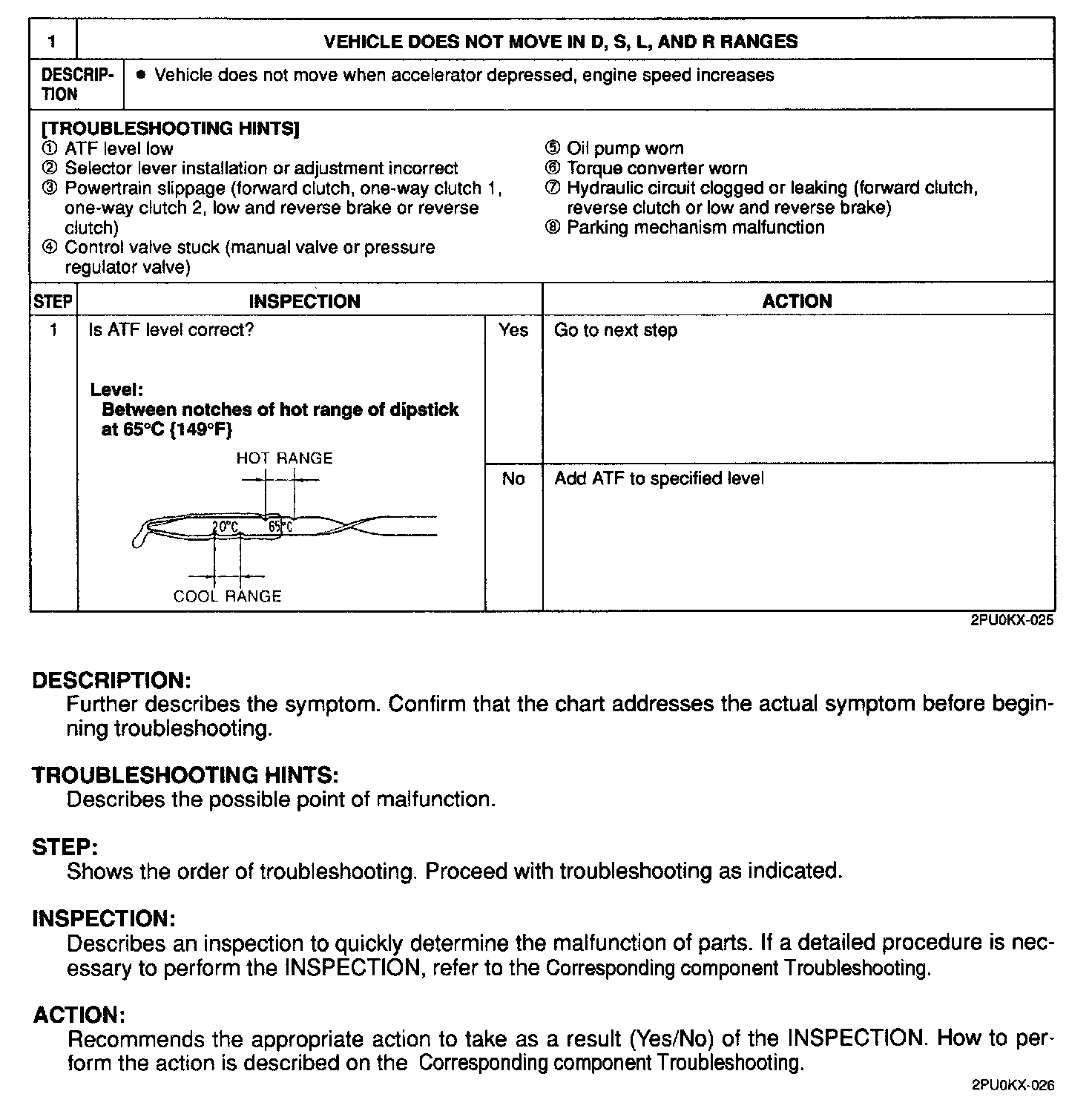

Troubleshooting Chart - Step 1:

Troubleshooting Chart

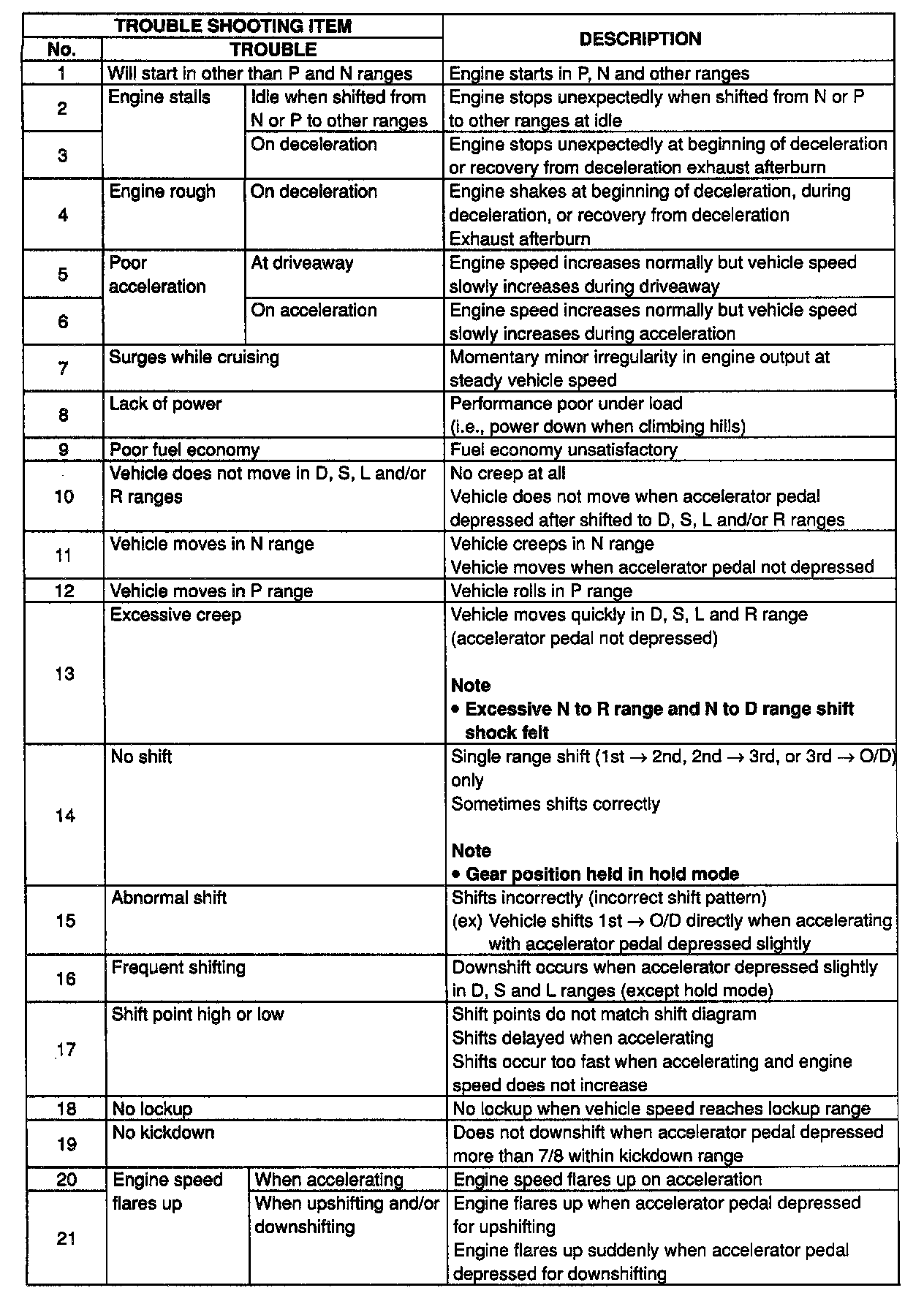

Diagnostic Index - Part 1:

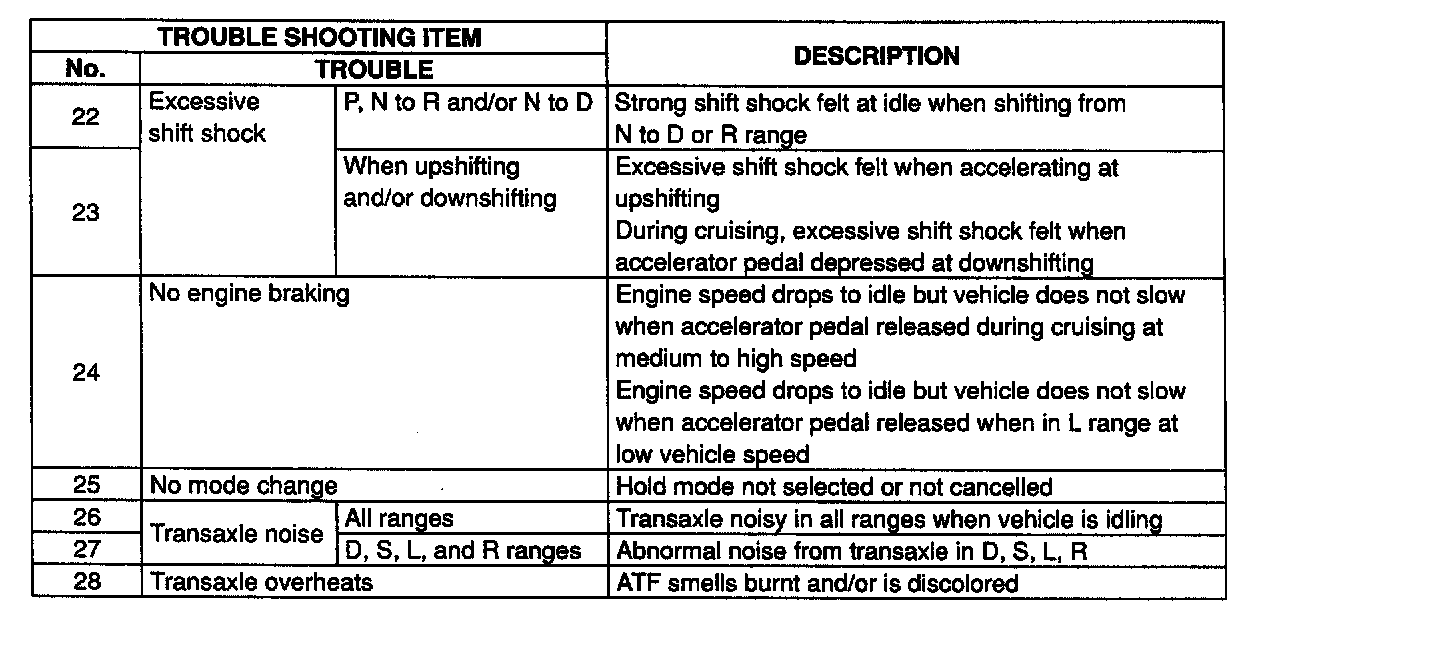

Diagnostic Index - Part 2:

Diagnostic Index
