Shift Mechanism

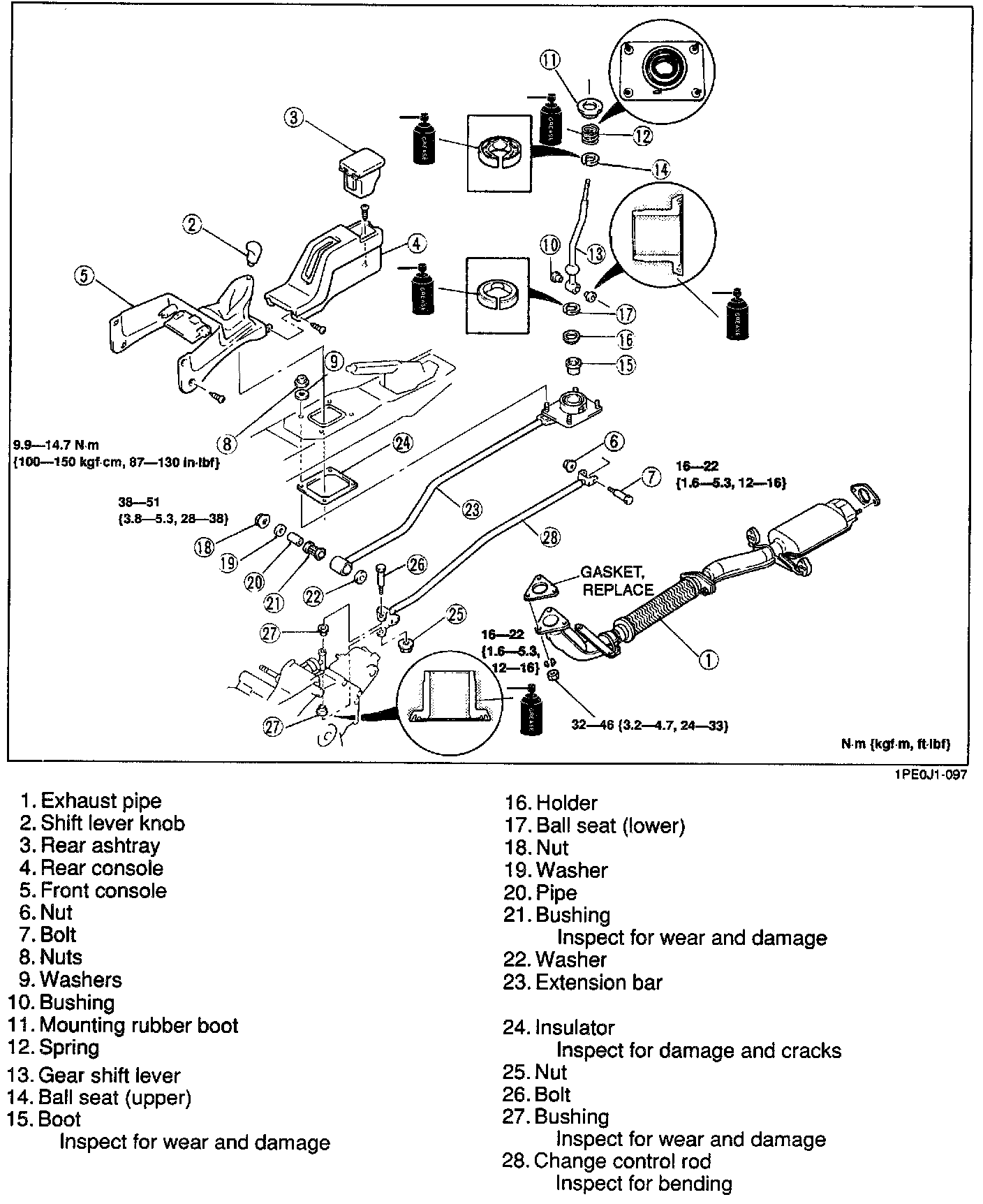

1. Disassemble in the order shown in the image.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly, referring to Assembly Note.




Assembly Note

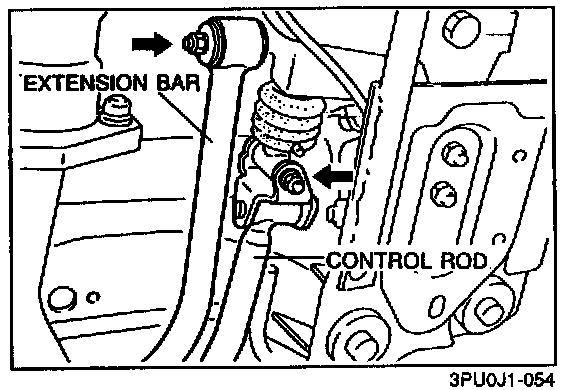

Extension bar
1. Install the extension bar to the floor, and then onto the transaxle.

Tightening torque: 38-51 N.m (3.8-0.3 kgf.m, 28-38 ft.lbf)

2. Tighten the bracket installation nuts to the specified torque.

Tightening torque: 9.9-14.7 N.m (100-150 kgf.cm, 87-130 in.lbf)




Spring

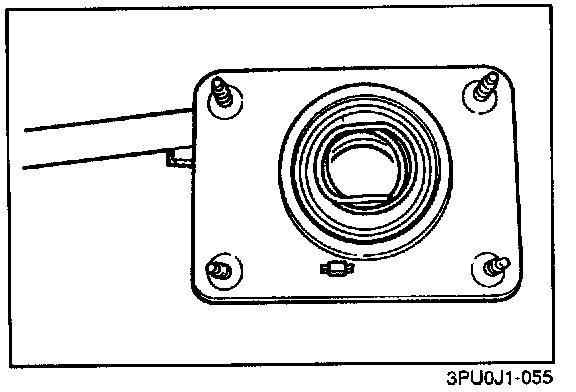

Make sure that the hooked part of the spring is properly seated in the bracket groove, as shown in the image.
