Air Flow Meter/Sensor: Testing and Inspection

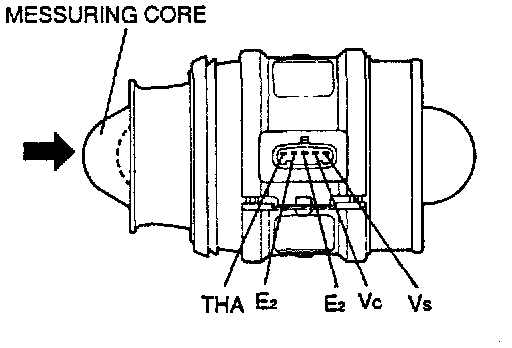

Air Flow Meter Terminals:
1.
Check meter body for cracks and other damage.
2.
Verify that measuring core opens and closes smoothly.

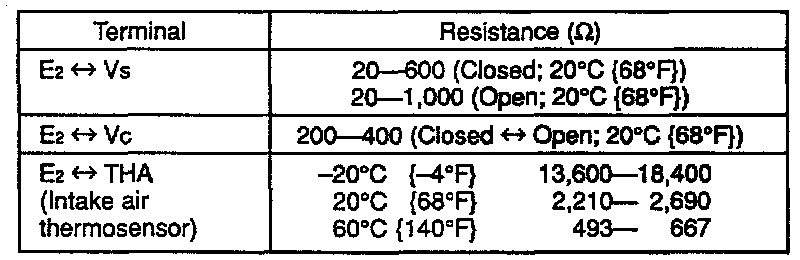

Air Flow Meter Test Chart:
3.
Measure meter resistance as shown on image chart.
4.
If not as specified, replace meter.
