EGR Valve: Service and Repair

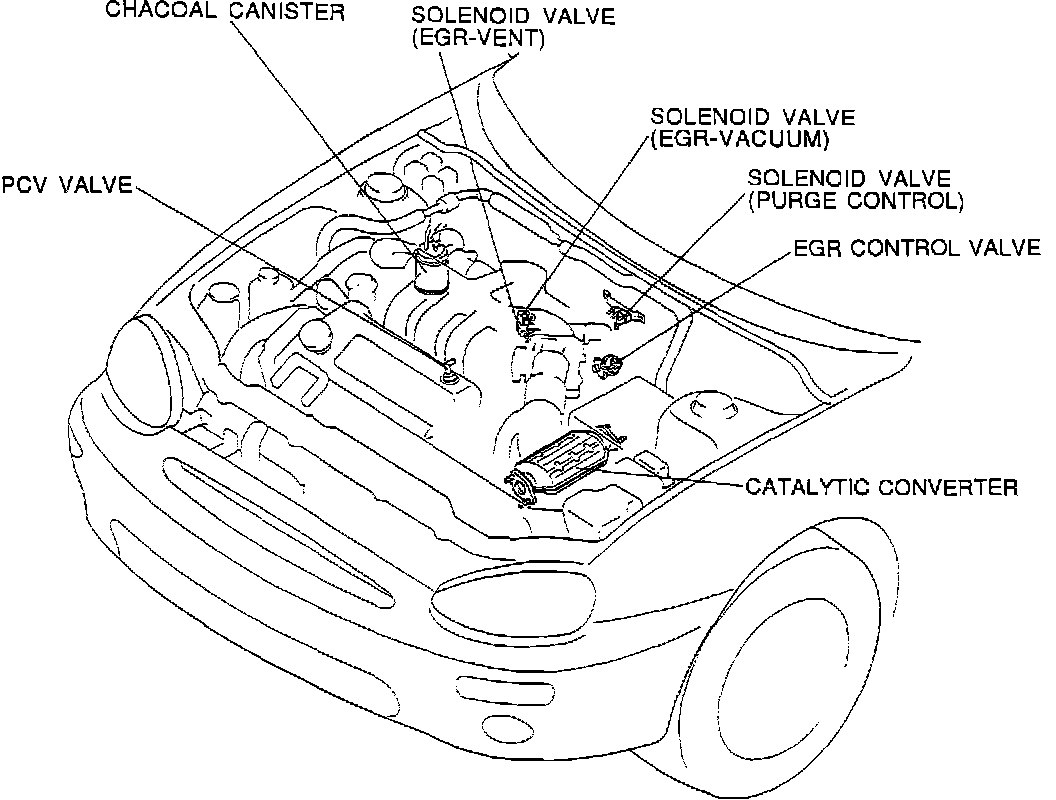

Emission Component Locations:
1.
Remove battery and battery tray.
2.
Disconnect
EGR position sensor connector and
EGR valve vacuum hose.
3.
Disconnect EGR pipe from valve.
4.
Remove
EGR valve.
5.
Install in reverse order.
INSTALLATION NOTE Be sure to remove all old gasket material from manifold surface before installing valve.
