Clutch Switch: Description and Operation
Clutch Switch:

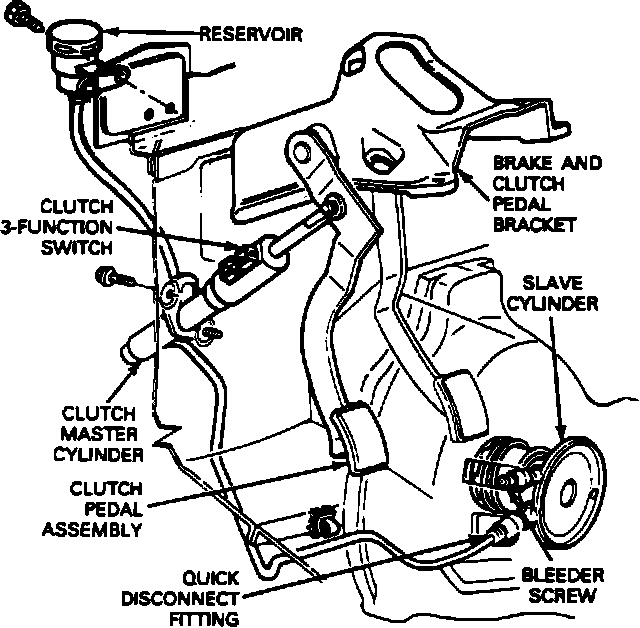

The Clutch Interlock Three Function Switch, located on the clutch master cylinder push rod, is a multi-function device:
^
The clutch pedal must be depressed to the floor in order to start the engine.
^
The switch cuts off the speed (cruise) control system when the clutch pedal is depressed.
^
It provides a fuel control signal to the EEC system.
