Rear Cross-Member: Service and Repair
1.
Raise and support vehicle.
2.
Remove rear stabilizer as outlined in
Stabilizer Bar,
Fig. 7.

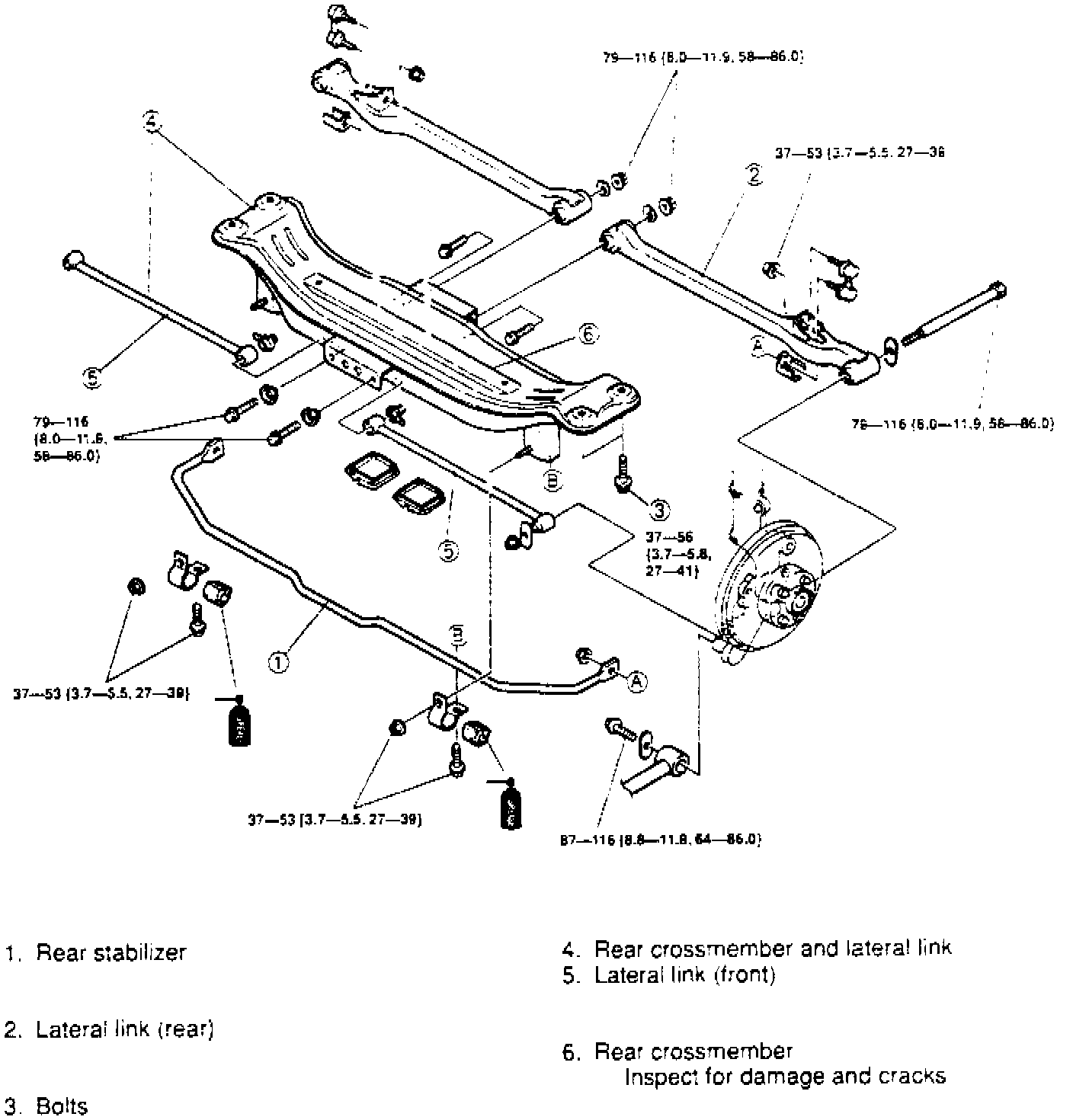

Fig. 7 Exploded View Of Rear Crossmember:
3.
Remove rear
lateral link as outlined in
Lateral Link.
4.
Remove mounting bolts.
5.
Remove front
lateral link as outlined in
Lateral Link.
6.
Remove rear crossmember.
7.
Reverse procedure to install.
