Fuel Pump/Sender - Non-Interchangeability

Bulletin No.: 004/96
Issued: 02/23/96
Revised:

Category
F

Applicable Model/s
1993-96
626/MX-6

Subject
FUEL PUMP AND SENDER NON-INTERCHANGEABILITY

APPLICABLE MODELS/VINS

All 1993-96 626/MX-6 vehicles.

DESCRIPTION

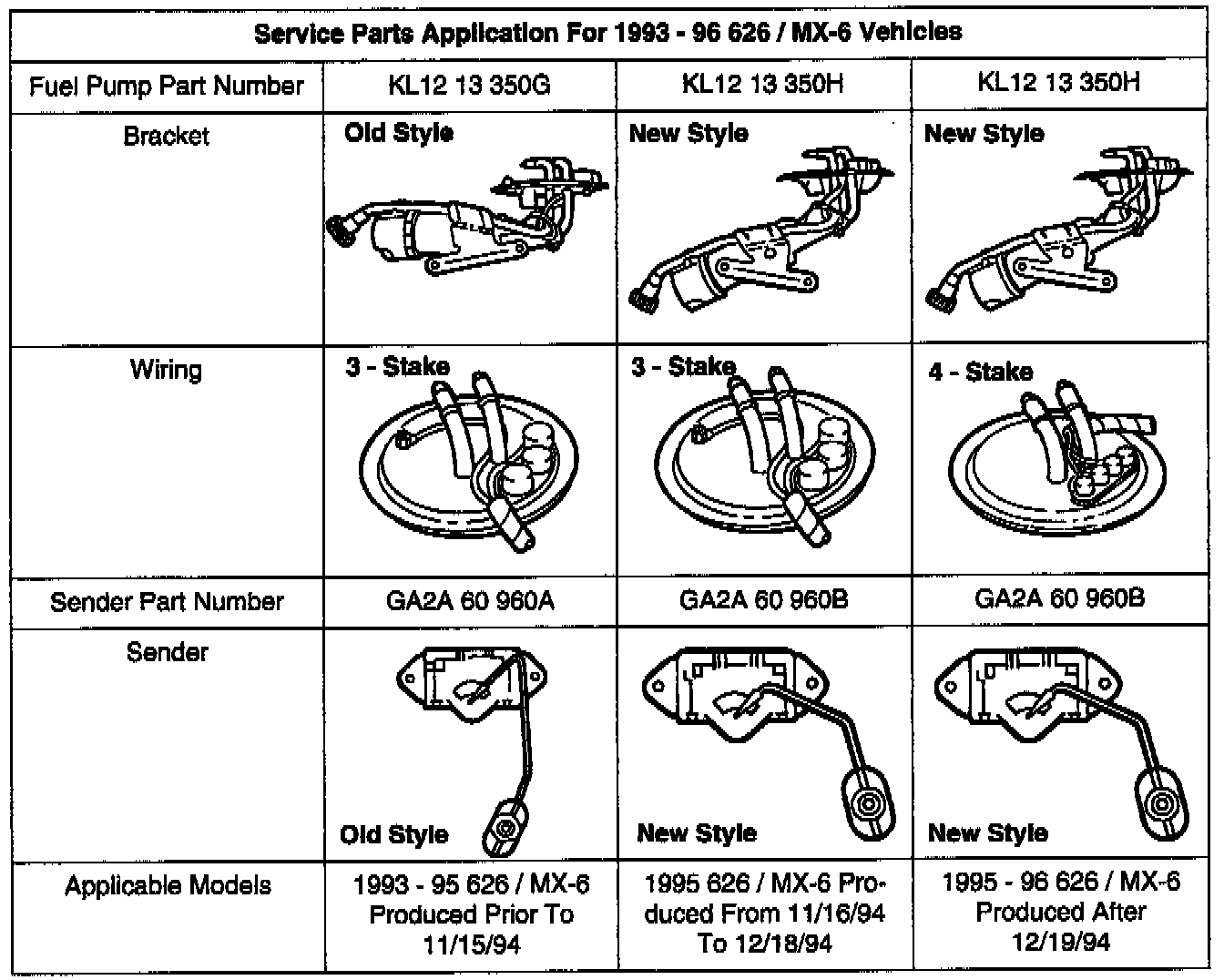

Due to production changes, the configuration of the fuel pump and sender assemblies have changed. These fuel pumps and sender assemblies are not interchangeable. Please refer to the chart when ordering service parts.
