Transmission Temperature Sensor/Switch: Service and Repair
1.
Remove the control valve body cover.
2.
Disconnect the ATF thermosensor connector.
3.

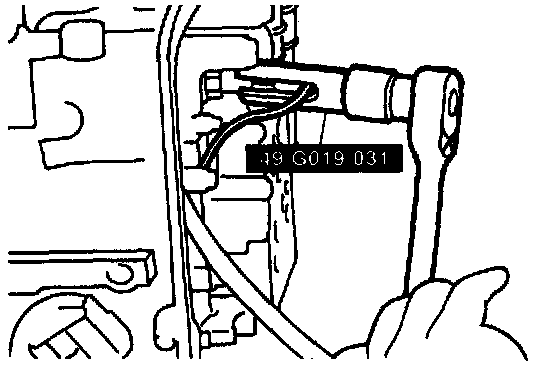

Remove the ATF thermosensor by using the SST.
4.
Install a new ATF thermosensor by using the SST.
Tightening torque: 7.9-10.7 N.m (80-110 kgf.cm, 70-95 in.lbf) 5.
Connect the ATF thermosensor connector.
6.
Install the control valve body cover.
