Wiper Motor: Service and Repair

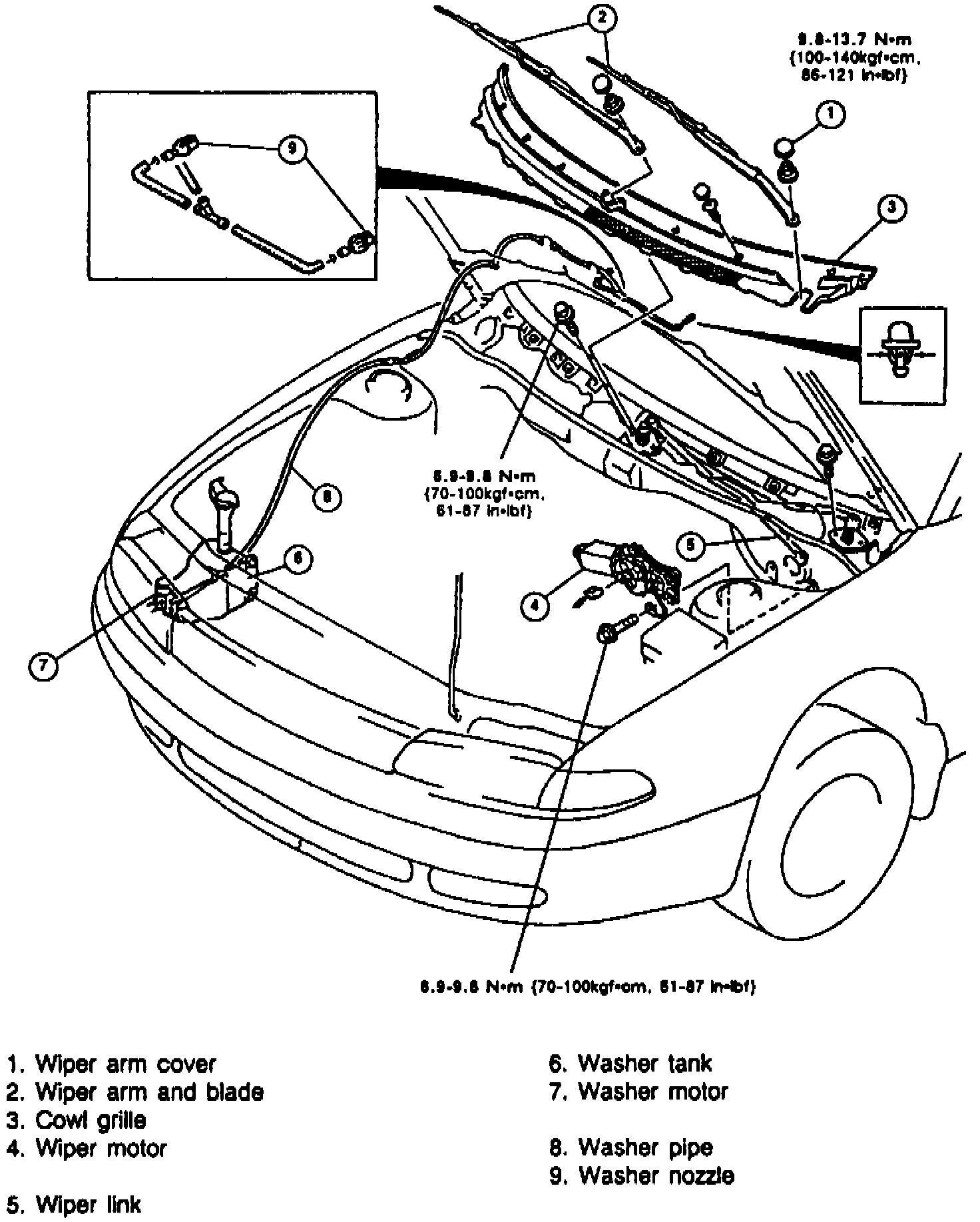

Fig. 5 Wiper System Components:
1.
Deactivate audio anti-theft function, as outlined under
Technician Safety Information, before disconnecting battery.
2.
Remove components in numerical order shown in
Fig. 5.
3.
Reverse procedure to install.
4.
Reactivate audio anti-theft function as outlined under
Technician Safety Information.
