Front Wheel Speed Sensor

1. Disconnect battery ground cable, then the tire and wheel assembly.
2. Remove front brake caliper, then the cap from hub, Fig. 164.

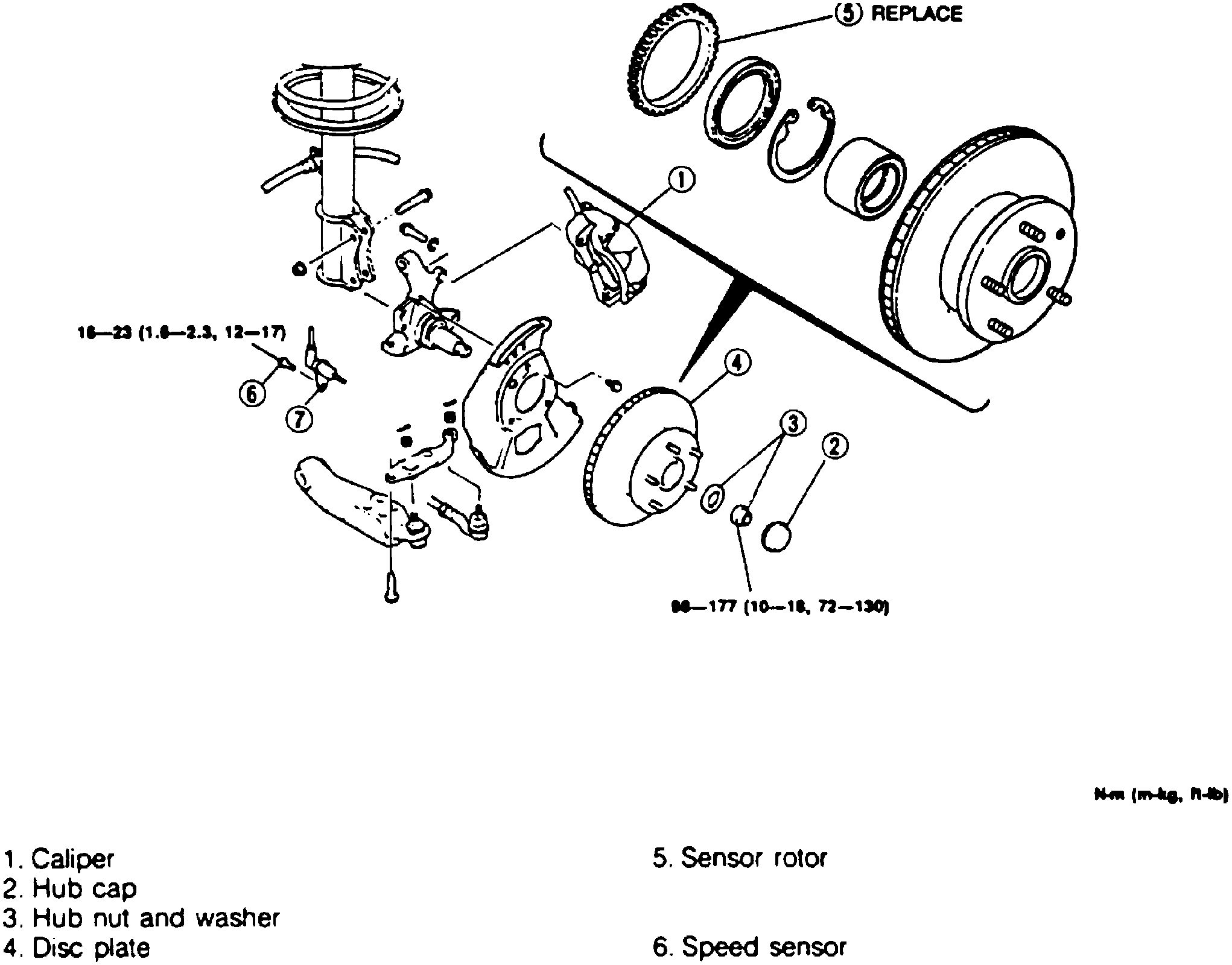

Fig. 145 Front Wheel Speed Sensor & Rotor Replacement:

3. Remove the hub nut and washer, then the disc rotor.
4. Remove bolt and wheel speed sensor from knuckle.
5. Remove sensor rotor.
6. Reverse procedure to install. Torque wheel speed sensor bolt to 12 - 17 ft.lb. Ensure sensor rotor chamfered edge faces hub.
