Blower Motor Relay: Testing and Inspection
Max-Hi Relay, Heater Relay 1.

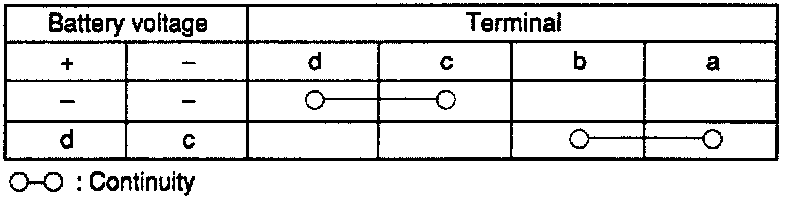

Check for no continuity between terminals a and b.
2.

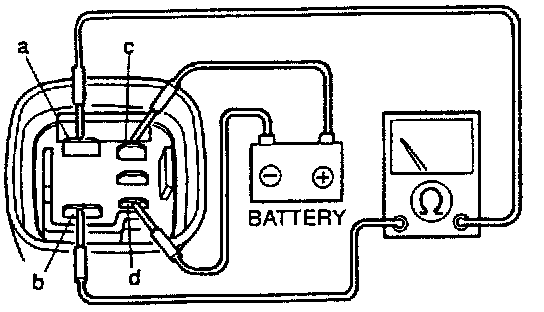

Connect battery voltage to terminal c and ground terminal d, and check for continuity between terminals a and b.
3.
If continuity is not as specified, replace the
relay.
