EGR Valve: Service and Repair
Replacement 1.

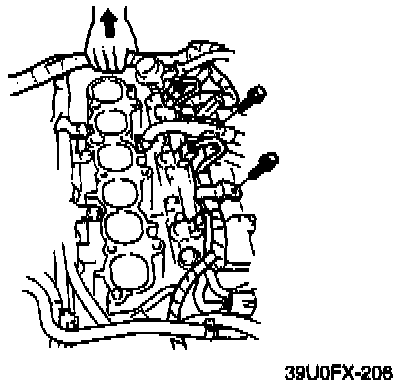

Move and secure the harness away from the EGR control valve.
2.
Plug water hoses after disconnecting them.
3.

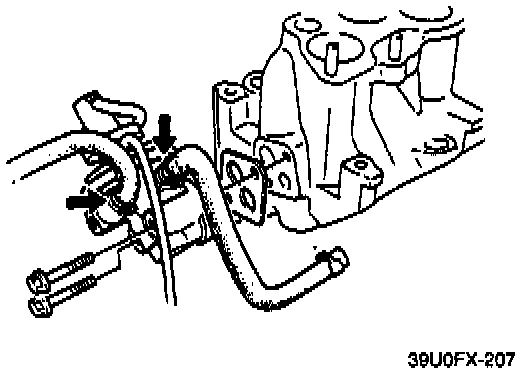

Remove the EGR control valve in the following sequence.
a.
Dynamic Chamber.
b.
EGR Hoses.
c.
Vacuum Hose.
d.
EGR Function Sensor Connector.
e.
EGR Control Valve and Gasket.
4.
Use new gaskets and replace the EGR control valve.
