S-Sensor



Removal/Installation
1. Deactivate the audio antitheft system, if installed.
2. Disconnect the.negative battery cable.
3. Remove the driver-side undercover, lower panel and lap duct.





4. Disconnect the diagnostic module connector and connect the SST to it as shown in the figure.

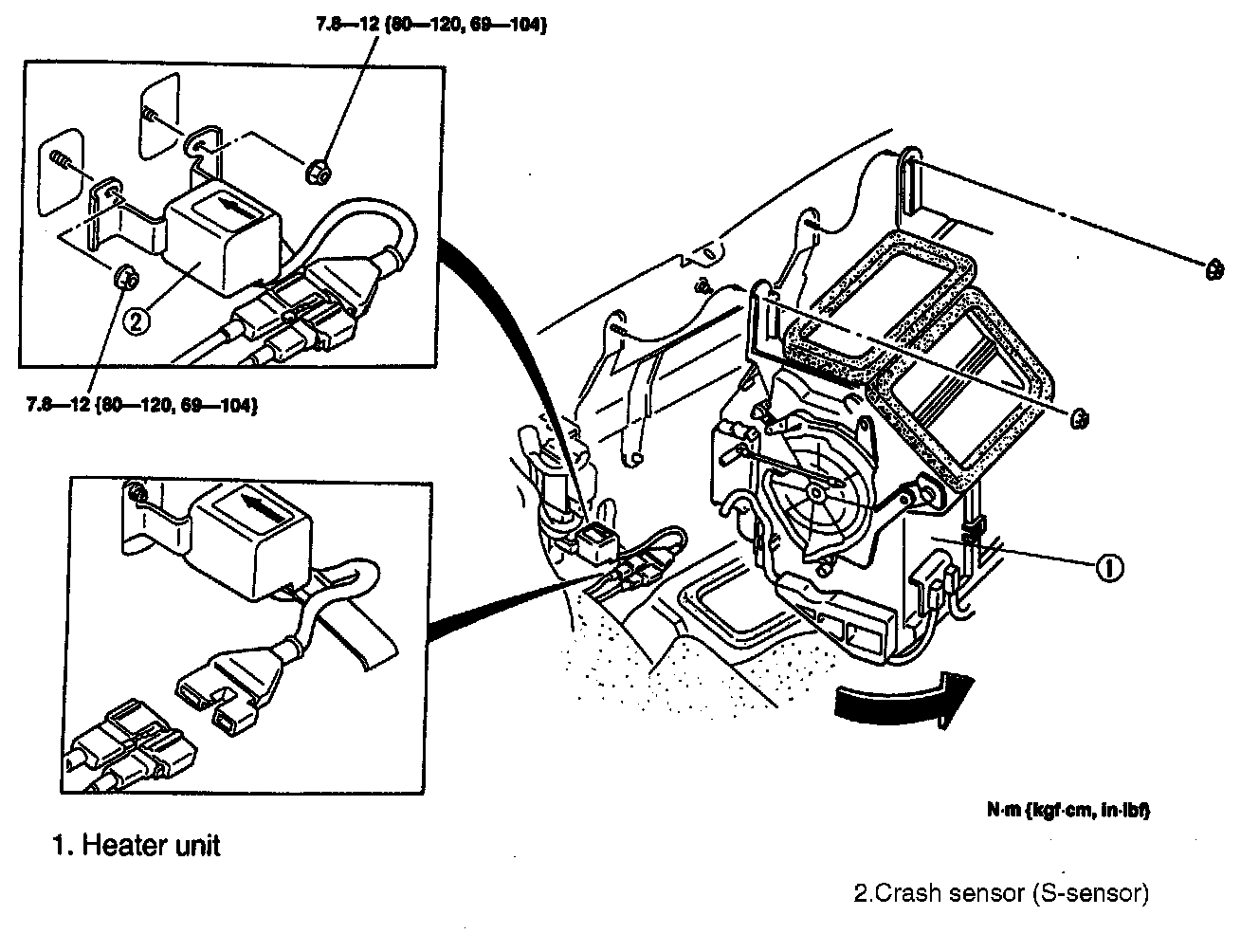

5. Remove in the order shown in the figure.
6. Install in the reverse order of removal, referring to Installation note.

Installation note





1. If the crash sensor mounting area is damaged, repair the area to its original shape before reinstalling the sensor.
2. Point the arrow on the crash sensor toward the front of the vehicle. Then install it and tighten the bolts to the specified torque.

Tightening torque: 7.8-12 Nm (80-120 kgf.cm, 69-104 in.lbs)
