Unit
Check resistance values between terminals,
Fig. 10, as shown in test chart,

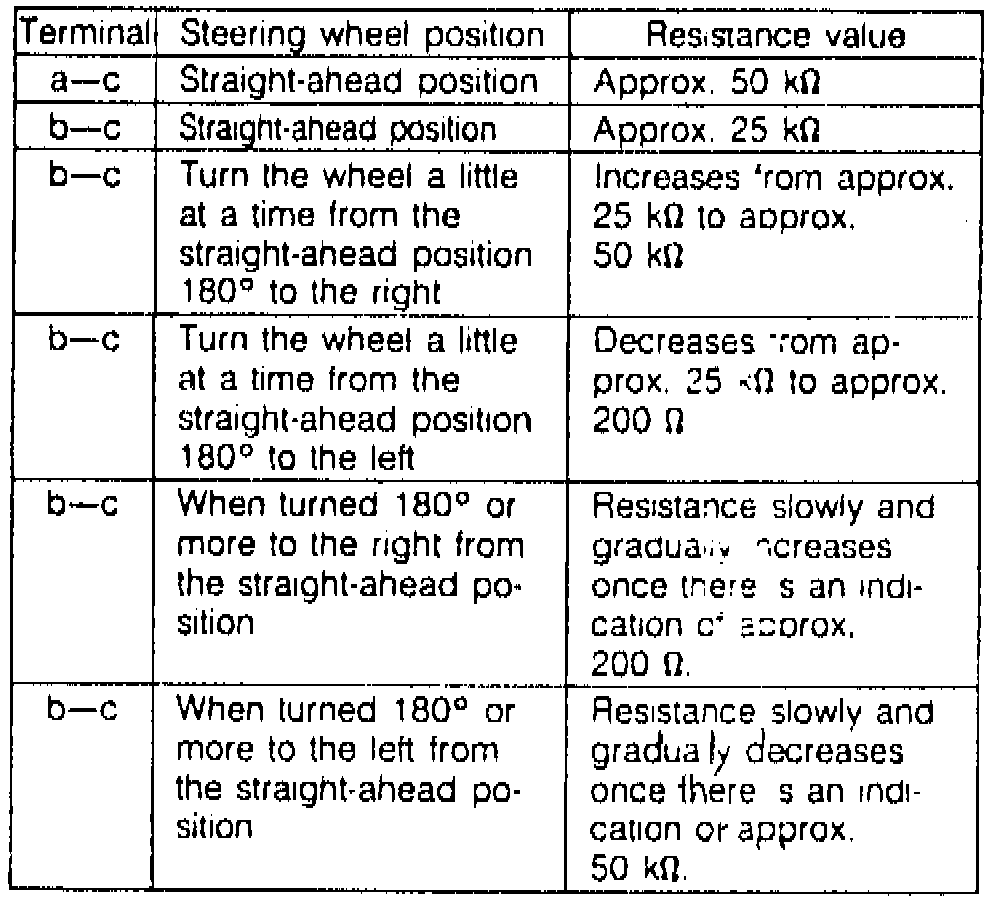

Fig. 11.
Fig. 10 Angle Sensor Terminal Identification:
Fig. 11 Angle Sensor Test Chart:
